Shuntian provides advanced aerospace manufacturing equipment for forming, bonding, densification and thermal processing of titanium alloys, aluminum alloys, superalloys, composite materials and other high-performance materials.
Our equipment range includes superplastic forming machines, diffusion bonding machines, hot isostatic presses, high-temperature vacuum hot presses and precision thermoforming systems. These machines can be customized according to the customer’s component structure, material properties, production process, required forming force, operating temperature, vacuum level and automation requirements.
Whether you are developing a laboratory process, establishing a pilot production line or expanding aerospace component production, Shuntian can provide equipment engineering and manufacturing support based on your actual process requirements.
Different aerospace components require different combinations of temperature, pressure, vacuum, protective atmosphere and forming control. Shuntian offers several types of equipment for advanced aerospace manufacturing processes.
| Equipment | Main Process | Suitable Materials | Typical Applications |
|---|---|---|---|

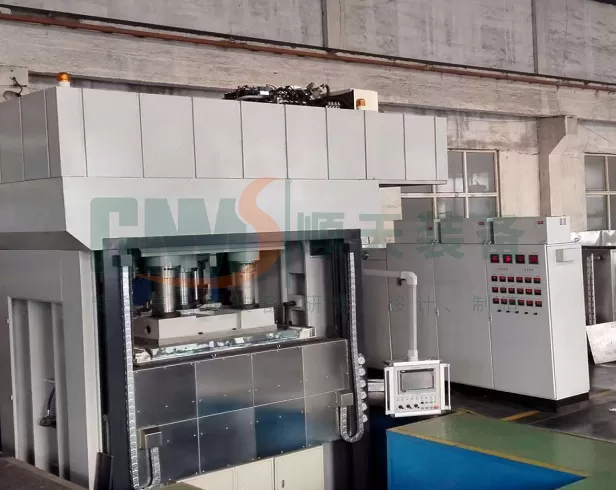

| Superplastic Forming Machine | High-temperature gas-pressure forming | Titanium alloys, aluminum alloys, magnesium alloys and superalloys | Aircraft fairings, doors, engine heat shields, housings and complex thin-wall components |

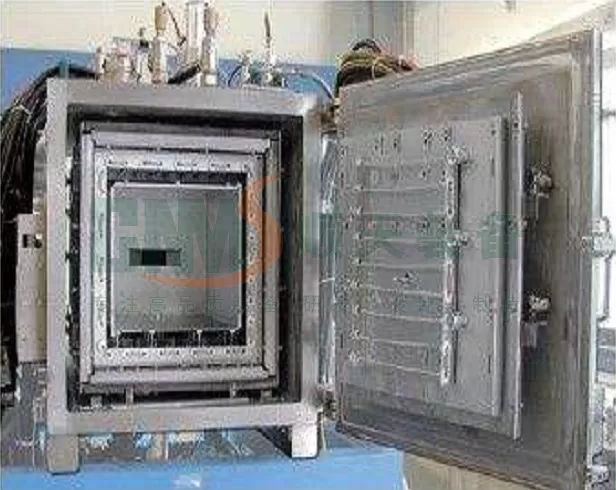

| Diffusion Bonding Machine | Solid-state bonding under controlled heat and pressure | Titanium alloys, stainless steel, nickel alloys and similar metals | Multi-layer structures, hollow panels, heat exchangers and lightweight structural components |

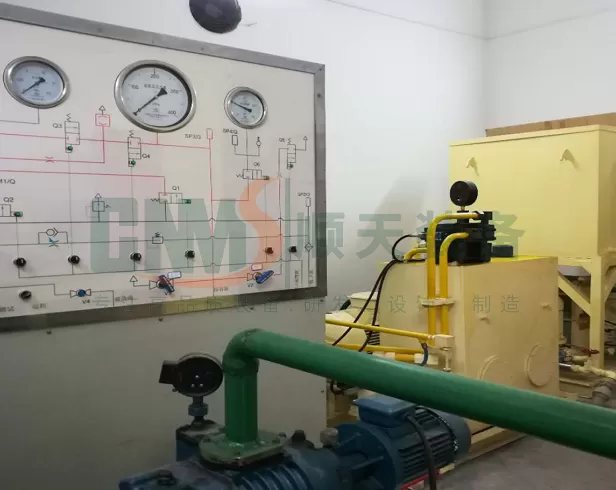

| Hot Isostatic Press | High-temperature and high-pressure densification | Castings, metal powders, additive manufactured parts and superalloys | Turbine components, engine parts, aerospace castings and critical structural components |

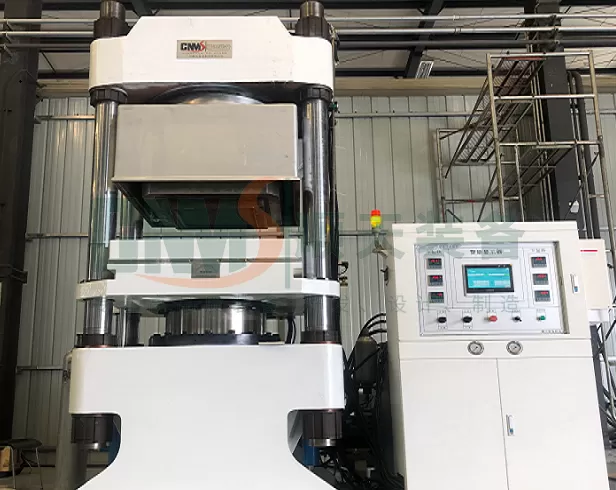

| High-Temperature Vacuum Hot Press | Vacuum sintering, bonding and pressure-assisted densification | Refractory metals, ceramics, carbon composites and high-temperature alloys | Engine materials, thermal protection components, ceramic parts and material research |

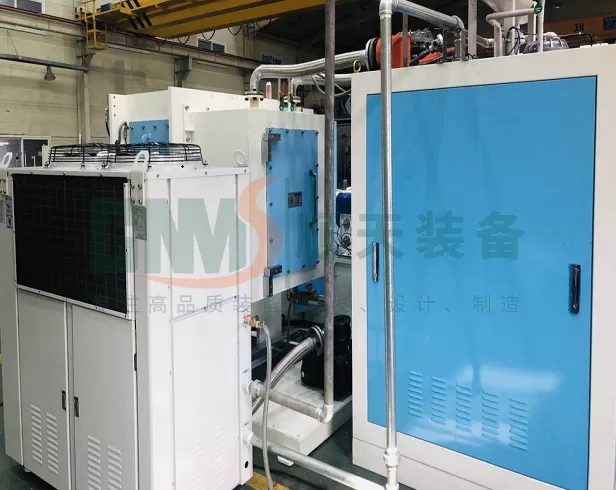

| High-Temperature Hot Press | Controlled heating and pressing | Metal, ceramic and composite materials | Forming, lamination, sintering and bonding of aerospace components |

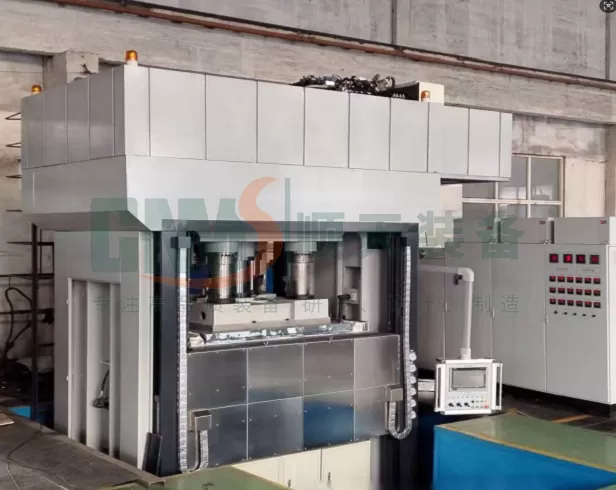

| Thermoforming Machine | Heating and forming of sheets or composite materials | Thermoplastic composites and other formable sheets | Interior panels, covers, lightweight shells and composite structures |
Hot isostatic pressing and advanced sheet-forming technologies are widely used in the aerospace sector to improve component integrity, reduce weight and manufacture complex airframe, engine, rocket and satellite components.
Aerospace manufacturers increasingly work with materials that are difficult to process using conventional stamping or pressing methods. Titanium alloys, heat-resistant superalloys and advanced composites require carefully controlled manufacturing conditions.
Shuntian aerospace production equipment can be engineered to address several common manufacturing challenges:
Superplastic forming and hot-forming processes make it possible to manufacture thin-wall components with deep cavities, curved surfaces, ribs and integrated structures while reducing the number of separate parts and welded joints.
Multi-zone heating and closed-loop temperature control help maintain a stable thermal environment across the working area. This is especially important when forming titanium alloys, sintering advanced materials or bonding large components.
Servo-hydraulic control can be configured to manage pressing force, ram position, forming speed, pressure-holding time and decompression sequences according to the production process.
Vacuum chambers and inert gas systems can be integrated when the material must be protected against oxidation, contamination or unwanted chemical reactions during heating and forming.
Temperature, pressure, vacuum, displacement and cycle-time data can be monitored and recorded. Recipe management and data export functions can also be incorporated according to the customer’s quality-control requirements.
Shuntian’s superplastic forming systems, for example, can combine multi-zone heating, controlled gas pressure, servo-hydraulic blank holding and process-data recording for complex titanium and aluminum components.
Our aerospace manufacturing machinery can be configured for the production and development of components used in:
Fuselage and wing structural panels
Aircraft doors and access panels
Fairings and aerodynamic covers
Thin-wall titanium and aluminum components
Composite interior and exterior panels
Turbine disks and vanes
Engine heat shields
High-temperature alloy components
Combustion and exhaust system parts
Lightweight heat exchangers
Rocket and missile structural components
Satellite brackets and housings
Thermal protection components
Composite nozzles and insulation structures
Lightweight integrated panels
Powder metallurgy development
Ceramic and composite sintering
Diffusion bonding process testing
Titanium alloy forming research
Additive manufacturing post-processing
High-temperature vacuum hot presses can also be applied to the densification and sintering of superalloys, refractory metals, ceramics and composite materials used in demanding aerospace and defense applications.
We evaluate the material, component and production process before recommending the equipment configuration. The objective is to provide a machine that fits the manufacturing process rather than simply supplying a standard press.
Working area, pressing capacity, heating method, vacuum system, protective atmosphere, cooling method and control software can be adapted to the project.
Servo-hydraulic systems, multi-zone temperature control, vacuum monitoring, process recipes and production-data recording can be integrated into one operating platform.
Equipment can be configured for material research, process verification, pilot production or continuous manufacturing.
Support can cover equipment installation, commissioning, operating guidance, process testing and after-sales technical service.
