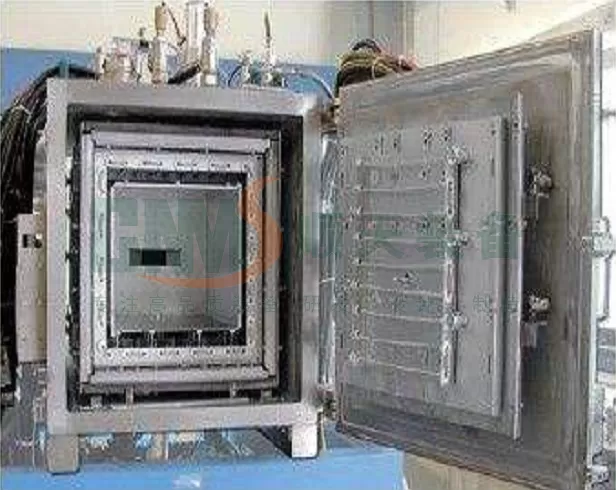

The Vacuum Diffusion Bonding Machine by Shuntian Equipment is a high-end system engineered for critical applications such as aerospace superalloys, titanium alloy structures, laminated composites, nuclear fuel elements, and microelectronic packaging.
Designed to deliver precise control over temperature, pressure, time, and vacuum levels—either in vacuum or atmosphere environments—it empowers customers to scale seamlessly from R&D to full-scale production.
PRODUCT DESCRIPTION

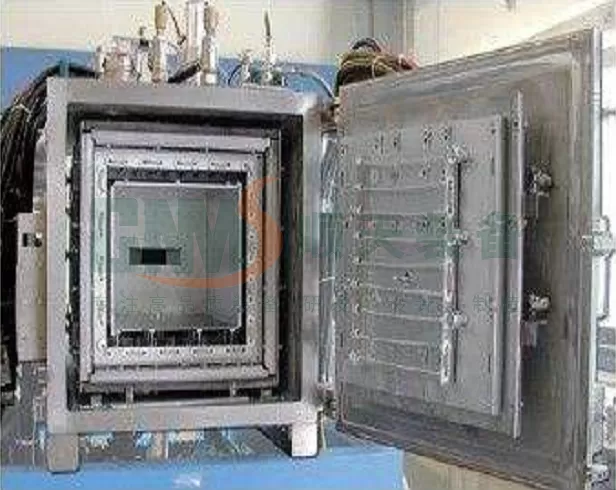

A Diffusion Welding Machine is a specialized solid-state joining system that bonds two or more metal components through the application of controlled temperature, pressure, and time in a vacuum or protective atmosphere. Unlike conventional fusion welding methods, diffusion welding creates metallurgical bonds without melting the base materials, resulting in superior joint integrity, minimal distortion, and exceptional mechanical properties.
Diffusion welding technology is widely used in aerospace, defense, nuclear energy, medical devices, electronics, automotive manufacturing, and advanced material research where high-strength, leak-tight, and precision-engineered joints are required.
The machine is suitable for titanium alloy structures, nickel-based superalloys, multilayer metal components, microchannel parts, heat exchangers, electronic packaging and advanced material research. Equipment configurations can be customized for laboratory development, pilot production or industrial manufacturing.
Diffusion welding is a solid-state welding process in which two precisely machined surfaces are pressed together at elevated temperatures, typically between 50% and 80% of the material's melting point. Under controlled pressure and vacuum conditions, atoms diffuse across the interface, creating a permanent metallurgical bond without forming a molten phase.
A three-stage pumping system (molecular pump + Roots pump + mechanical pump) and full-metal-sealed chamber achieve an ultimate vacuum of ≤5×10⁻⁴ Pa (higher options available). This removes surface oxides and adsorbed gases, preventing re-oxidation at high temperatures—ideal for reactive metals like titanium and zirconium alloys.
Heaters (graphite, molybdenum, or nickel-chromium strips) are independently controlled in multiple axial/radial zones, with dual thermocouple and infrared feedback. Temperature uniformity across the working zone is held within ±3°C to ±5°C, ensuring consistent grain structure in large or complex parts and eliminating incomplete bonding or grain coarsening.
Closed-loop servo-hydraulic or electric actuators, paired with high-resolution displacement sensors, deliver real‑time compression monitoring. Pressure accuracy is ±0.5% FS, and displacement resolution reaches 0.1 μm—critical for multilayer foils, micro‑channel structures, and bond‑line tolerance control.
An integrated internal/external gas quenching system (argon/nitrogen) with a high‑efficiency heat exchanger enables fast cooling after the soak. This refines grain size, improves joint properties, and cuts cycle times, boosting overall equipment productivity.
The intelligent control system includes an expert database for common material pairs (e.g., Ti/Al, Ti/stainless steel, superalloys). All process parameters—temperature, pressure, vacuum, displacement—are recorded in real time, supporting AS9100 and Nadcap compliance with tamper‑proof electronic records for each bond.
● Aerospace: Hollow fan blades, blisks (titanium/superalloys); multi‑layer honeycomb panels, heat exchangers; SPF/DB titanium structures
● Electronics & Semiconductors: High‑power chip/substrate packaging (Cu/Al₂O₃, Cu/DBC); wafer‑level MEMS vacuum packaging
● Medical Devices: Dissimilar metal implants (Ti/stainless steel); precision instrument joining
● Advanced Materials R&D: Layered metal composites (Ti/steel, Al/Cu, Ni/Al); metal matrix composites; refractory metal bonding
The vacuum chamber can achieve extremely low pressure levels, minimizing oxidation and ensuring optimal diffusion bonding conditions.
Advanced resistance, induction, or graphite heating technologies provide stable thermal distribution across large and complex workpieces.
The control system automatically records:
Welding temperature
Vacuum level
Pressure history
Cycle duration
Process parameters
This ensures complete production traceability and quality assurance.
Optional configurations include:
Vertical diffusion welding machines
Horizontal diffusion welding machines
Hot press diffusion welding systems
Vacuum diffusion bonding furnaces
Custom multi-axis loading systems
The bonding surfaces must be machined, flattened and cleaned before loading. Surface roughness, flatness, oxide layers, oil, dust and other contaminants can directly affect bond quality.
The appropriate preparation method depends on the material and may include:
Precision machining or grinding
Mechanical polishing
Ultrasonic cleaning
Chemical degreasing
Pickling or oxide removal
Controlled storage before bonding
The prepared parts are aligned and installed in suitable tooling. Graphite, ceramic, molybdenum or other high-temperature tooling materials may be selected according to the bonding temperature, component material and required pressure distribution.
For multilayer components, tooling design is especially important for maintaining alignment and transferring pressure evenly across every interface.
The chamber is evacuated to the required vacuum level. A vacuum environment helps limit oxidation and contamination during heating, particularly when processing reactive metals such as titanium and zirconium alloys.
For materials or tooling that are not suitable for high-vacuum processing, the equipment can be configured to operate under a partial pressure of argon, nitrogen or another controlled atmosphere.
The workpiece is heated according to a programmed rate. Multi-zone heating helps reduce temperature differences across large, thick or geometrically complex components.
After reaching the target bonding temperature, the system may hold the temperature for equalization before full pressure is applied.
The servo system applies the required bonding force or pressure. Pressure, ram displacement and compression rate can be monitored in real time.
Precise displacement control is important for:
Thin metal foils
Multilayer structures
Microchannel components
Hollow structures
Components with strict final-thickness requirements
Temperature and pressure are maintained for the specified bonding time. The correct process window depends on material grade, component dimensions, surface condition, interface design and required joint properties.
After the bonding stage, the component can be cooled naturally or through an optional inert-gas circulation system.
Cooling rate should be selected according to the material and required microstructure. Rapid cooling is not appropriate for every alloy or component, so the cooling program must be matched to the validated production process.
After the workpiece reaches a safe unloading temperature, it is removed for inspection. Depending on the application, inspection may include:
Visual and dimensional inspection
Ultrasonic testing
Leak testing
Metallographic examination
Tensile or shear testing
Microhardness testing
Pressure testing
Destructive sample testing
We provide advanced diffusion bonding solutions for demanding industrial applications requiring precision, repeatability, and long-term reliability.
Our engineering team can tailor equipment based on:
Material type
Component dimensions
Production volume
Vacuum requirements
Heating technology
Automation level
Every system is designed for:
Consistent bond quality
Long equipment life
High production efficiency
Reduced maintenance costs
We provide:
Process development assistance
Equipment installation
Operator training
Maintenance support
Spare parts supply
Remote technical service
