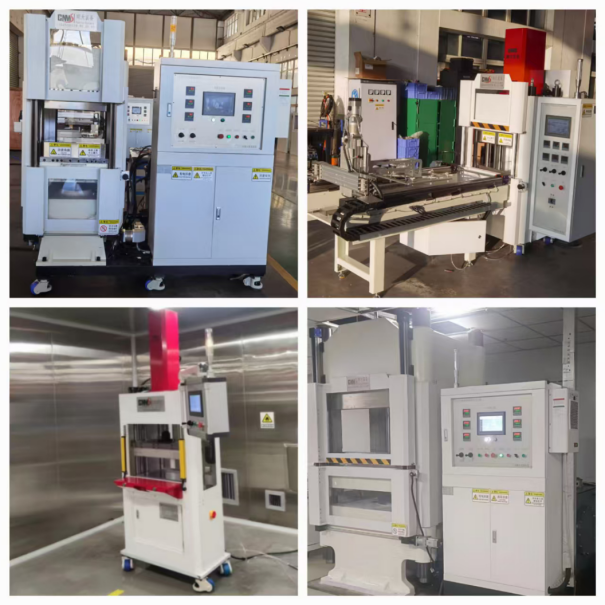

Shuntian Equipment Servo Hot Press Forming Machine

Shuntian Equipment Servo Hot Press Forming Machine is engineered for high-end manufacturing. With its exceptional precision and intelligent control, it empowers industries such as hydrogen fuel cells, composite materials, and consumer electronics to overcome process limitations, achieving a high-quality leap from R&D to mass production.

I. Applicable Fields

The Shuntian Servo Hot Press Forming Machine is suitable for a wide range of high-end manufacturing sectors:

1. New Energy & Electrochemistry:

●Hydrogen Fuel Cells: Hot lamination for CCM membrane electrodes, MEA membrane electrodes, and hot pressing for GDL gas diffusion layers.

●Other Batteries: Hot lamination for flow battery bipolar plates.

●Energy Storage Materials: Hot lamination for CCS aerogels.

2. Composite Material Forming:

●Advanced Materials: Molding of thermoset/thermoplastic composites such as carbon fiber, glass fiber, and modified epoxy sheets.

●Aerospace: Hot press forming for composite component parts.

3. Consumer Electronics & Smart Hardware:

●3C Electronics: Hot press forming for 5G phone covers/back covers/cases, laptop shells, etc.

●VR/AR: Wearable devices like smart glasses and head-mounted displays.

4. Automotive & Home Appliances:

●Hot press forming for automotive interior parts, films, home appliance panels, and other products.

II. Advantages & Features

The core competitiveness of the Shuntian Servo Hot Press Forming Machine lies in its ultra-high precision, intelligent control, and process flexibility, providing fundamental assurance for high-quality production:

1. Exceptional Precision:

●Mechanical Precision: Parallelism ≤ 0.03mm, Flatness ≤ 0.02mm.

●Control Precision: Pressure control accuracy 1%, Temperature control accuracy ±0.5°C.

●Temperature Uniformity: Overall hot plate temperature variation within ±1°C, uniformity within 2°C.

2. Intelligent Servo System:

●High Efficiency & Stability: Stable pressure, high efficiency, resulting in high production yield and quality rate.

●Flexible Pressurization: Features constant pressure and constant stroke functions.

●Real-time Monitoring: Utilizes torque pressure sensors for real-time monitoring of actual pressure.

3. Superior Process Flexibility:

●Multi-stage Control: Supports multi-stage slow pressurization and multi-stage heating, capable of handling complex processes.

●Customizable Settings: Allows free definition of the number, magnitude, and sequence of multi-stage pressure and stroke settings based on product requirements, with the flexibility for on-the-fly adjustments. This is particularly suitable for R&D and scenarios requiring frequent line changeovers.
