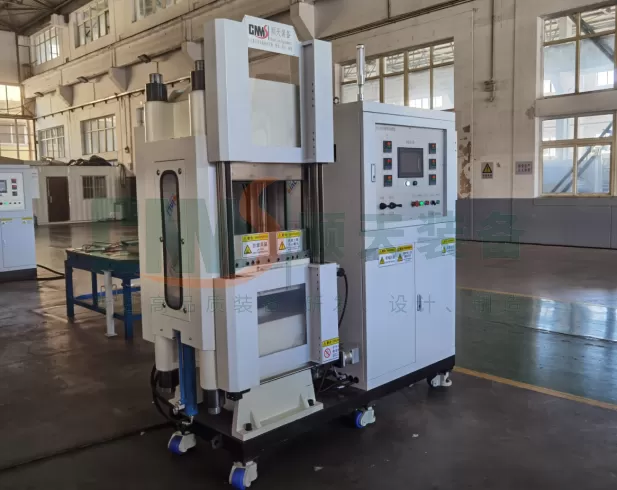

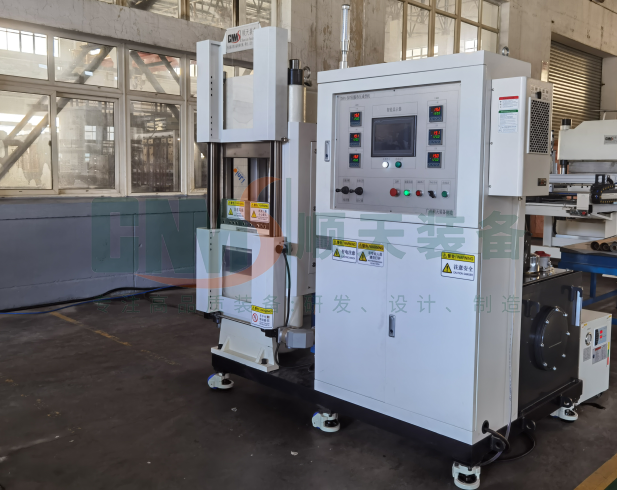

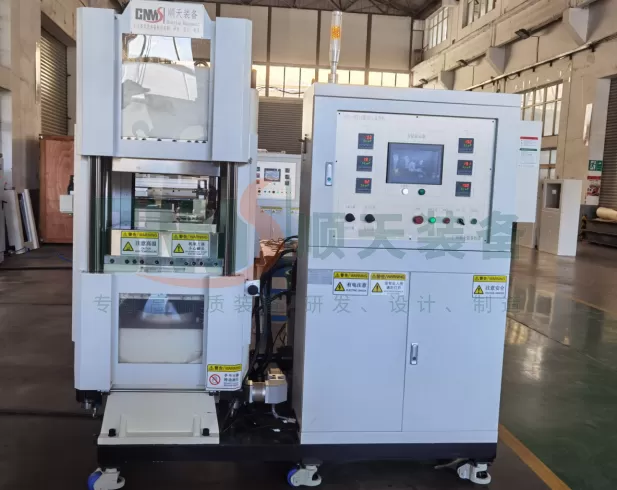

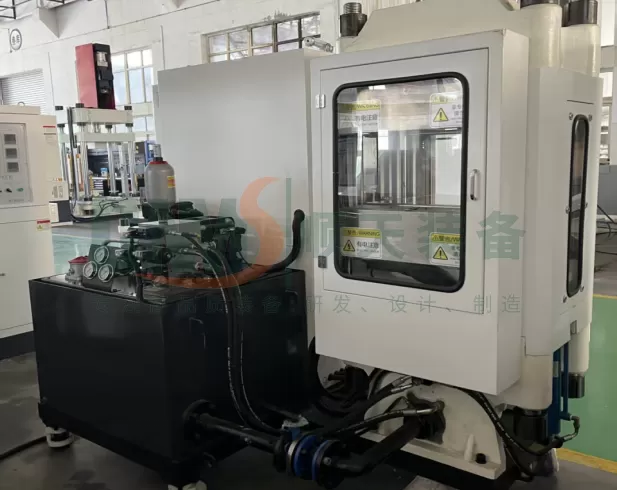

50T MEA Servo-controlled hot press forming machine

Shuntian Equipment's MEA Servo-controlled hot press forming machines are primarily used in fields demanding extremely high precision, surface quality, and production efficiency. Applicable fields:

●New Energy and Fuel Cells: Thermal lamination of CCM/MEA membrane electrodes, hot pressing of GDL gas diffusion layers, thermal lamination of CCS aerogels, and thermal lamination of flow battery bipolar plates.

●Advanced Composite Processing: Molding and hot pressing of carbon fiber, glass fiber, modified epoxy sheets, and thermoplastic composites such as ABS/PP/PA.

●Consumer Electronics and Smart Hardware: Hot pressing of VR/AR smart glasses and head-mounted devices, 5G smartphone covers/backs/cases, laptops, and other 3C electronic products.

●Industrial and High-End Manufacturing: Precision hot pressing of automotive interior components, home appliance panels, aerospace composite parts, and other products.

Inquire Now + Next Product

PRODUCT DESCRIPTION

The 50T MEA Servo-Controlled Hot Press Forming Machine is a specialized high-precision thermal compression molding system designed for the production of Membrane Electrode Assemblies (MEA), fuel cell components, bipolar plate assemblies, proton exchange membrane (PEM) materials, and advanced composite laminates. Featuring advanced servo-electric control technology, precise temperature regulation, and programmable pressure profiles, the machine ensures consistent bonding quality, high production efficiency, and excellent repeatability for hydrogen energy and fuel cell manufacturing applications.

The equipment is widely used in hydrogen fuel cell production lines, new energy research institutes, automotive fuel cell manufacturing, and advanced materials processing industries.

A MEA hot press machine is specifically engineered to laminate and bond:

Proton Exchange Membranes (PEM)
Catalyst-coated membranes (CCM)
Gas diffusion layers (GDL)
Fuel cell electrode assemblies
Multi-layer composite structures

Through precise control of temperature, pressure, and dwell time, the machine creates high-quality membrane electrode assemblies with excellent conductivity, durability, and bonding strength.

Core Advantages and Features

●Ultra-High Precision Assurance: Mold parallelism controlled within 0.03mm, flatness within 0.02mm, ensuring product quality from the foundation.

●Precision Temperature Control System: Hot plate temperature uniformity ≤2℃, overall temperature difference ±1℃, temperature control accuracy ±0.5℃.

●Intelligent Servo Drive: Pressure control accuracy reaches 1%, ensuring stable operation with industry-leading efficiency and yield rates.

●Flexible Pressurization Technology: Features constant pressure and constant stroke functions, supporting slow multi-stage pressurization and real-time pressure monitoring to handle complex processes.

●Customizable Processes: Enables free configuration and sequential adjustment of multi-stage pressure and multi-stage stroke settings to meet your personalized production requirements.

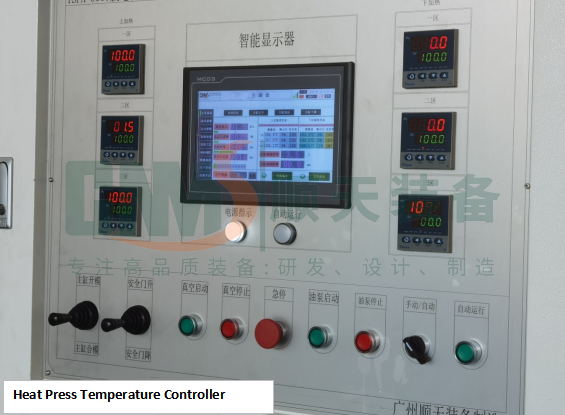

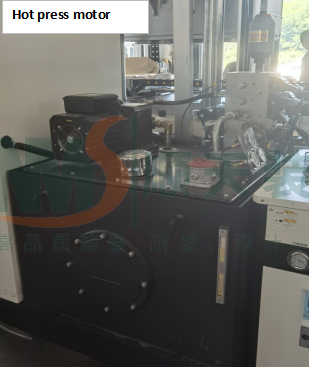

Heat Press Temperature Controller Hot press motor

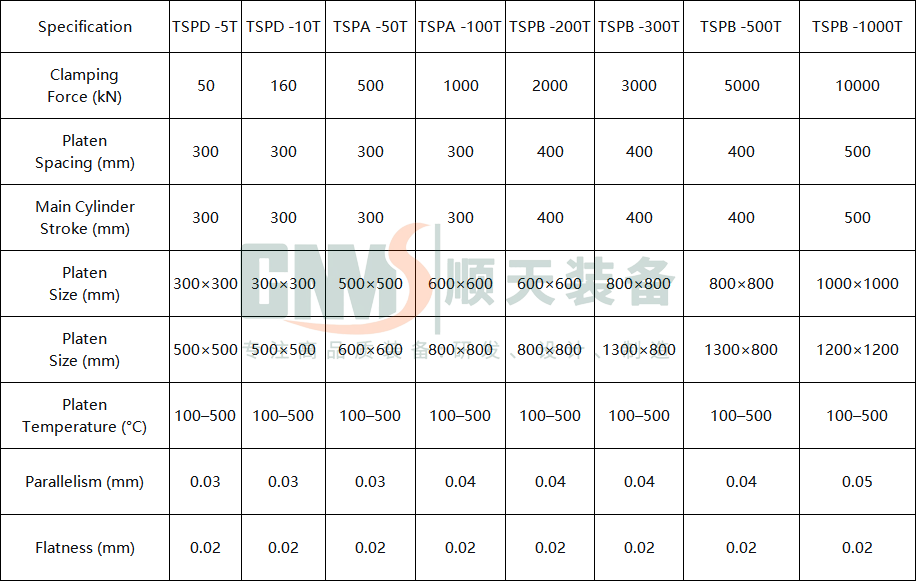

Project parameters

Item	TSPD-5T	TSPD-10T	TSPA-50T	TSPA-100T	TSPB-200T	TSPB-300T	TSPB-500T	TSPB-1000T
Clamping Force (kN)	50	160	500	1000	2000	3000	5000	10000
Platen Spacing (mm)	300	300	300	300	400	400	400	500
Main Cylinder Stroke (mm)	300	300	300	300	400	400	400	500
Platen Size (mm)	300×300	300×300	500×500	600×600	600×600	800×800	800×800	1000×1000
Platen Size (mm)	500×500	500×500	600×600	800×800	800×800	1300×800	1300×800	1200×1200
Platen Temperature (°C)	100–500	100–500	100–500	100–500	100–500	100–500	100–500	100–500
Parallelism (mm)	0.03	0.03	0.03	0.04	0.04	0.04	0.04	0.05
Flatness (mm)	0.02	0.02	0.02	0.02	0.02	0.02	0.02	0.02
