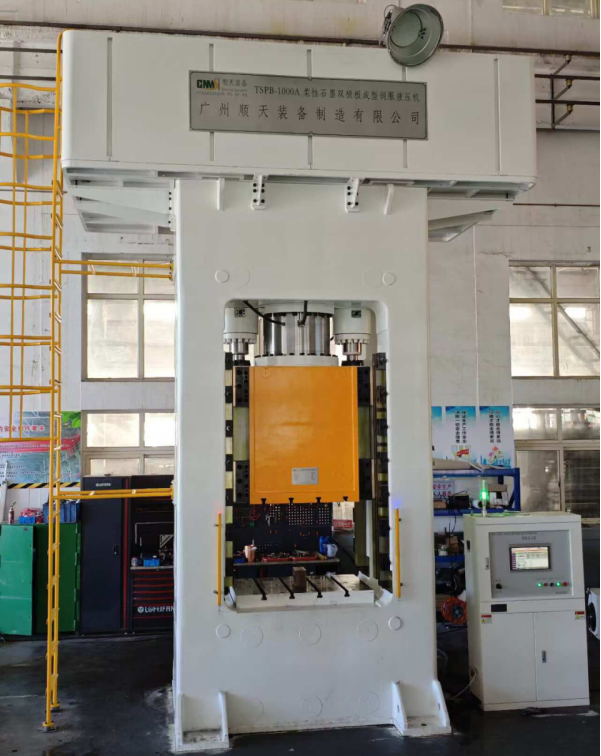

Selection Guide for Bipolar Plate Forming Hydraulic Presses

In new energy sectors such as hydrogen fuel cells and energy storage equipment, bipolar plates serve as core components where forming quality directly determines overall product performance and durability. As key equipment for achieving high-precision forming, bipolar plate forming hydraulic presses have become vital support for enterprises to enhance process capabilities and ensure mass production efficiency through stable pressure control and consistent forming results. This article systematically outlines the core value of this hydraulic press type from perspectives including technical requirements, selection criteria, and typical applications, aiding enterprises in precise selection and efficient production deployment.

What are the core technical requirements for hydraulic presses in bipolar plate forming?

Bipolar plates, particularly metal ones, demand both “high precision” and “high consistency” during forming. This imposes clear technical requirements on the hydraulic press system:

● Stable Pressure Control: The forming process requires constant pressure, typically within the 50–200 ton range. Equipment must incorporate servo control systems to ensure pressure fluctuations do not exceed ±1%, thereby preventing micro-cracks or wrinkling in the plates.

● High Displacement Accuracy: The ram displacement error of the hydraulic press should be controlled within ±0.05mm to ensure uniform plate thickness. This is critical for fuel cell sealing performance and uniform reaction gas distribution.

● Temperature Coordination Capability: Certain metal bipolar plates require hot pressing at 80–150°C. The hydraulic press must include mold temperature control interfaces to support coordinated temperature and pressure regulation, accommodating diverse process requirements.

How to Select the Right Bipolar Plate Forming Hydraulic Press? Three Key Dimensions to Guide Your Decision

When selecting equipment, companies should consider plate material, production capacity goals, and process routes, focusing on the following aspects:

1. Optimize Tonnage Matching

Metal sheets (0.1–0.3mm): Recommend 63–100 ton models to balance efficiency and forming quality;

Graphite composite plates: Opt for 120–200 ton equipment to overcome material brittleness and achieve crack-free forming.

2. Automated Configuration Based on Production Volume

Small-to-medium batch trials: Semi-automatic mode with manual loading/unloading is suitable for controlling initial investment;

Mass production (≥5,000 pieces/day): Recommended to configure automatic feeding, online inspection, and robotic arms to achieve full-process automation, boosting overall efficiency by over 30%.

3. Safety and After-Sales Service as Safeguards

Equipment must incorporate safety structures such as two-hand operation, emergency stop, and hydraulic locks, compliant with GB 28240 standards;

Prioritize manufacturers offering installation commissioning, process support, and a warranty exceeding one year to minimize operational and maintenance risks.

Typical Industry Applications

● Hydrogen Fuel Cell Plate Manufacturing: Suitable for precision stamping of metal bipolar plates. After introducing a 100-ton servo hydraulic press, an automotive manufacturer achieved a daily production capacity of 8,000 plates with a product qualification rate exceeding 99%.

● Energy Storage Battery Plate Forming: For flow batteries like vanadium flow batteries, cold-press forming plates with hydraulic presses significantly enhances conductivity and corrosion resistance.

● Special Material Forming Applications: Compatible with corrosion-resistant metals like titanium alloys and stainless steel, meeting stringent plate performance requirements for high-end applications in defense and offshore platforms.

Frequently Asked Questions (FAQ)

Q1: What is the primary difference between a bipolar plate forming hydraulic press and a standard hydraulic press?

A: The core distinction lies in control precision. Specialized hydraulic presses achieve coordinated pressure and displacement control via servo systems, delivering accuracy within ±0.05mm. Standard hydraulic presses typically exhibit fluctuations exceeding ±5%, rendering them unsuitable for plate forming requirements.

Q2: What aspects should be prioritized in routine maintenance?

A: We recommend monthly checks of hydraulic oil cleanliness (NAS rating ≤8) and quarterly filter element replacement. Conduct comprehensive annual inspections and maintenance of servo motors and critical seals. Proper maintenance can effectively extend equipment lifespan to 8–10 years.

Selecting the right bipolar plate forming hydraulic press is a critical step in ensuring product quality and boosting production capacity. If you have specific requirements regarding specifications (material, dimensions, production capacity targets), please contact us to obtain customized technical solutions and detailed quotations, providing reliable equipment support for your project implementation.
