Amidst the rapid development of the hydrogen fuel cell industry, the forming quality of metal bipolar plates—as the core component of fuel cell stacks—directly determines battery performance, efficiency, and lifespan.
Designed specifically for precision manufacturing in the hydrogen energy sector, this metal bipolar plate forming hydraulic press integrates ultra-high precision, intelligent control, and exceptional stability, making it the ideal choice for those pursuing high-quality, high-efficiency, and automated production.
PRODUCT DESCRIPTION
This hydraulic press for metal bipolar plate forming delivers multiple core performance features to meet the demands of high-efficiency, high-quality bipolar plate production:
● Exceptional Precision and Rigidity:
The parallelism of the upper and lower worktables is strictly controlled within 0.01 mm/m. Combined with the high-rigidity frame design, this significantly reduces elastic deformation, ensures uniform flow channel forming, and effectively protects the die.
● Accurate Pressure Control:
With a nominal force ranging from several hundred to over a thousand tons, and paired with a precise servo system, the press achieves accurate control over slide speed, position, and pressure. The equipment follows a scientific forming cycle—"rapid descent → slow closing → pressure holding → pressure release and return"—to guarantee process stability.
● Superior Worktable Performance:
The high-flatness worktable provides an accurate reference for die installation. Its strong resistance to off-center loading prevents slide tilting, ensuring stable and reliable forming even for products with asymmetrical structures.
● Extended Functions and Automation Integration:
An optional vacuum chamber is available to enable an oxidation-free forming environment. The press is also equipped with comprehensive automation interfaces for seamless integration of peripheral equipment such as loading/unloading robots and vision inspection systems, supporting the construction of fully automated production lines to comprehensively enhance manufacturing efficiency and product consistency.
This bipolar plate hydraulic press is not merely a standalone piece of equipment but a comprehensive one-stop solution for the manufacturing of metal bipolar plates for hydrogen fuel cells. It is dedicated to meeting customers' core demands for precision, efficiency, reliability, and automation. By providing a solid foundation for large-scale production of high-quality bipolar plates from both hardware rigidity and control software perspectives, it serves as a key enabler in advancing the hydrogen energy industry from demonstration phases to scaled commercial application.

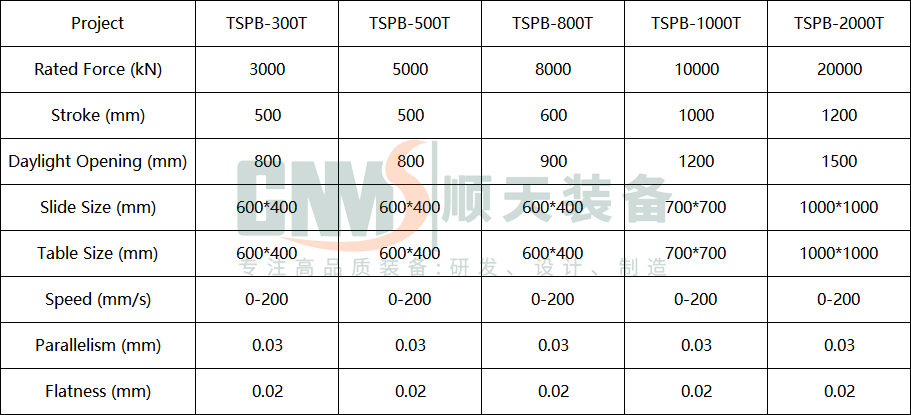

Project Parameters
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
