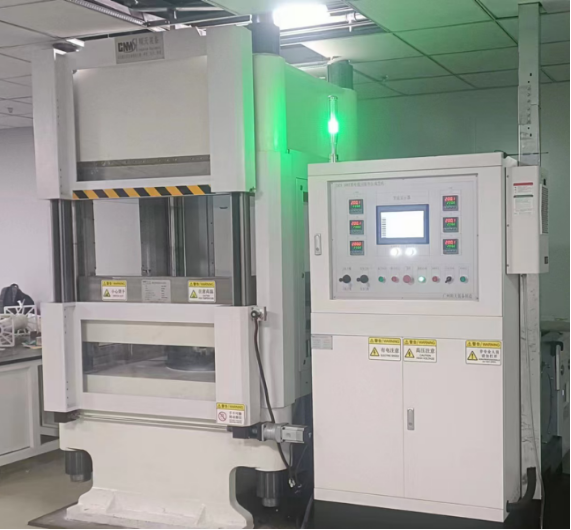

MEA Hot Pressing Machine

The MEA (Membrane Electrode Assembly) serves as the “heart” of a fuel cell, acting as the core site for electrochemical reactions. It consists of a five-layer structure: a proton exchange membrane flanked by two catalyst layers and two gas diffusion layers. These five layers must be tightly and securely bonded together to ensure efficient conduction of protons, electrons, and gases while preventing delamination.

The role of the MEA hot pressing machine is to laminate the dispersed five-layer materials (typically a three-in-one CCM + two GDL layers, or a five-in-one assembly) under specific temperature, pressure, and time conditions. This process transforms them into a complete, stable, and reliable integrated unit.

Core Functions of the MEA Hot Pressing Machine

The core task of this equipment is to precisely and repetitively execute the aforementioned hot pressing process. Its primary functions include:

1. Precise Temperature Control: High-precision temperature regulation of the upper and lower heating plates (typically achieving ±1°C or even higher accuracy) ensures uniform heating across the entire MEA area. The temperature range typically spans from room temperature to over 200°C to accommodate different types of proton exchange membranes.

2. Precise Pressure Control: Utilizes servo motor drive with high-precision force sensors for closed-loop pressure regulation. Pressure control is exceptionally smooth and accurate, enabling the setting and maintenance of constant pressure to prevent pressure surges that could damage fragile membranes and catalyst layers.

3. Precise Parallelism Control: The upper and lower hot plates exhibit exceptional flatness and parallelism, ensuring uniform pressure distribution across the entire MEA surface and preventing localized over- or under-pressurization.

4. Programmable Pressing Process: Complex pressing curves can be configured, such as:

(1) Multi-stage pressure holding: Applying different pressures at distinct displacement points or time intervals.

(2) Degassing process: Initial low pressure to expel bubbles and excess moisture, followed by gradual increase to final pressure.

5. Vacuum Environment (Optional): Some high-end models integrate vacuum chambers. Pre-press vacuuming thoroughly removes air between layers, significantly reducing bubble formation and enhancing product quality and consistency.

6. Automation and Integration: Capable of integrating with upstream/downstream equipment (e.g., loading manipulators, unloading robots, cooling stations) to achieve fully automated production lines.

Primary Applications of MEA Hot Pressing Machine

1. Hydrogen Fuel Cell Industry: Production of MEAs for proton exchange membrane fuel cells and direct methanol fuel cells used in automobiles, backup power supplies, drones, and other applications.

2. Academic and Research: Small-batch, multi-formulation MEA process R&D.

3. Related Membrane Material Evaluation: Testing the performance of novel proton exchange membranes or catalyst-coated membranes under hot pressing conditions.

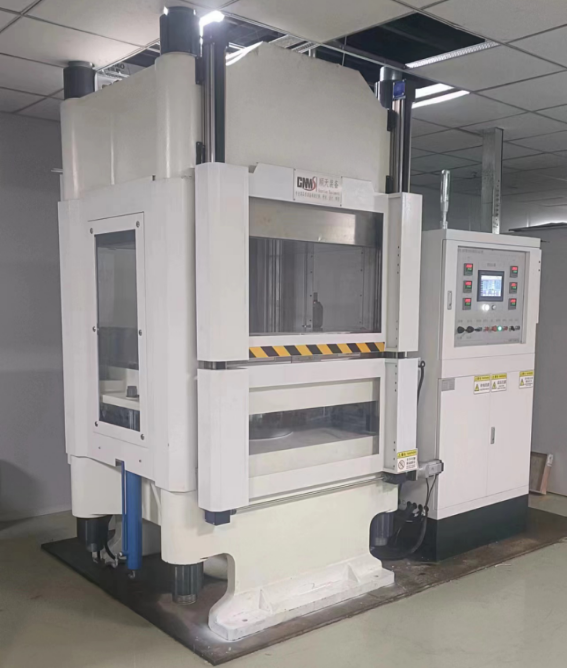

Shuntian Equipment's MEA Servo Hot Pressing Machine stands as an exemplary representative of China's domestic substitution and autonomous control in core fuel cell manufacturing equipment. It integrates high-precision servo pressure control, uniform and stable heating systems, robust mechanical structures, and deep process optimization for MEAs, meeting demands from R&D to mass production.

If you are seeking hot-pressing equipment for fuel cell projects, Shuntian Equipment is undoubtedly a supplier that warrants thorough consideration and evaluation. We strongly recommend contacting Shuntian Equipment directly to obtain the latest product manuals, technical solutions, and successful case studies, and to engage in detailed discussions based on your specific product specifications and production capacity requirements.
