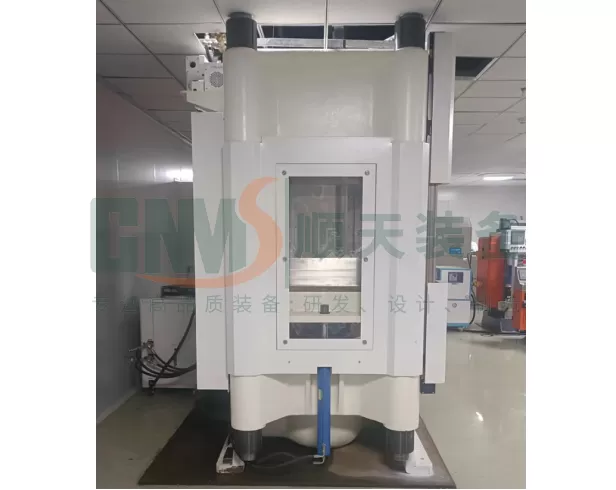

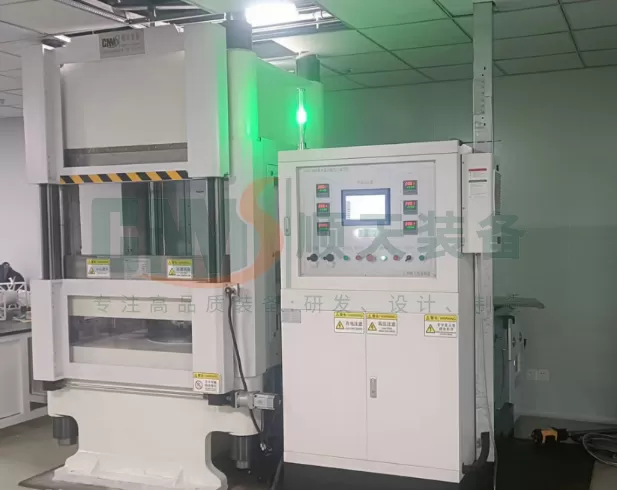

MEA servo hot press forming machine represent a highly efficient, precision-engineered, and energy-saving forming solution in modern manufacturing. Integrating advanced servo control technology, precise temperature regulation, and robust pressure management capabilities, these machines are widely deployed across industries requiring combined processes such as heating, pressurization, pressure maintenance, and cooling.
PRODUCT DESCRIPTION
Core Application Fields of MEA Servo Hot Press Forming Machine
●New Energy: Specializes in core processes such as thermal lamination of fuel cell membrane electrode assemblies (CCM/MEA), hot pressing of gas diffusion layers (GDL), and battery cell sealing (CCS).
●Composites: Serves precision molding and hot pressing of high-end materials including carbon fiber, glass fiber, and thermoplastics.
●Consumer Electronics: Precision structural component hot pressing for 3C products like VR/AR glasses and 5G smartphone components.
●High-End Manufacturing: High-quality production of automotive interiors, home appliance panels, and aerospace composite components.
Advantages & Features
1. Intelligent Full Closed-Loop Control
Employing a full closed-loop servo control system, this machine enables millisecond-level real-time monitoring and dynamic feedback of four core process parameters: pressure, temperature, position, and speed. Integrated with high-precision sensors and intelligent algorithms, the system automatically corrects deviations and provides real-time compensation, ensuring exceptional stability and precise controllability throughout the entire process. From mold clamping, pressing, and dwell to pressure release and mold opening, the entire cycle operates automatically without manual intervention—truly achieving "one-touch start, fully automatic operation." This intelligent control architecture not only significantly enhances molding accuracy and product consistency but also substantially reduces reliance on operator expertise, providing solid technical support for standardized, large-scale production.
2. Multi-Stage Process Programming
The equipment supports free combination and sequencing of up to 6 stages of pressure, 6 stages of temperature, and 6 stages of time. Users can intuitively set target values, dwell times, and transition rates for each stage via the touchscreen interface. Whether processing thermosetting plastics, composite materials, rubber products, specialty engineering plastics, or multi-layer structures, the machine easily adapts through flexible invocation of preset process recipes or custom programs. This multi-stage process programming capability frees the equipment from being limited to a single product type, making R&D sampling and small-batch, multi-variety switching more efficient—greatly expanding the machine's process coverage and production flexibility.
3. Safety & Durability
The entire machine design strictly adheres to international mechanical safety standards, incorporating multiple active and passive safety devices including light curtain protection, emergency stop, dual overpressure/overtemperature alarms, hydraulic locking, and mechanical limit stops—ensuring reliable protection for both personnel and equipment under any abnormal condition. All key structural components have undergone finite element analysis optimization and fatigue life simulation verification. Core castings, plates, and cylinder systems utilize high-strength alloy materials, treated with stress relief processes and precision machining to maintain initial accuracy even under long-term, high-frequency, heavy-load operation. The machine boasts a design life of no less than 10 years, with major wear parts featuring quick-change structures to reduce lifecycle maintenance costs.
4. Customization Capability
Built on a modular design and flexible manufacturing platform, the equipment can be deeply customized according to customers' specific product process requirements. Customization options include but are not limited to: worktable dimensions and T-slot layout, heating power and independent heating zone configurations, servo system power and cylinder stroke parameter matching, temperature controller model and control accuracy level selection, hydraulic station layout and cooling method customization, and even secondary development of the control program interface and data acquisition ports.
Whether for precision laboratory molding, pilot production validation, or large-scale automated production line integration, we provide highly tailored technical solutions to help customers rapidly build differentiated competitive advantages.

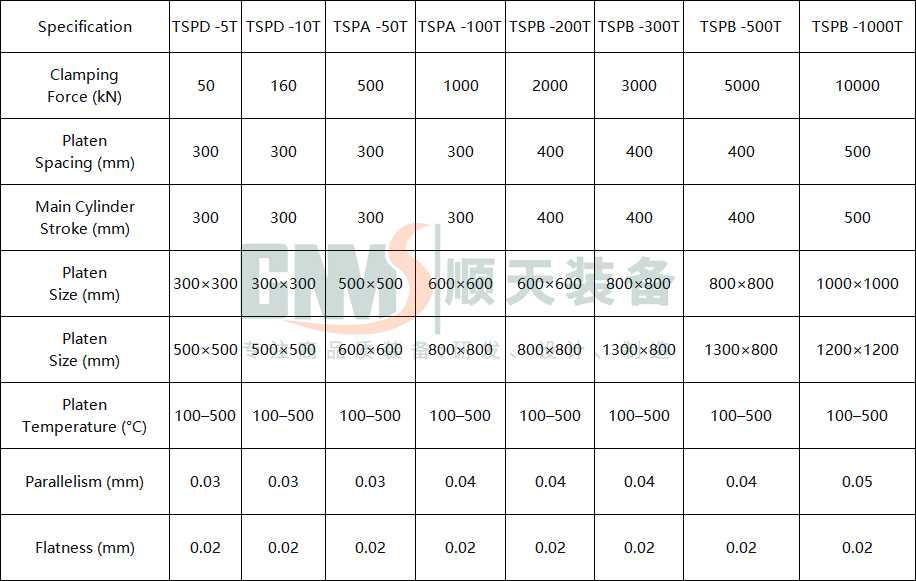

Project parameters
