As the green hydrogen industry accelerates, Proton Exchange Membrane (PEM) electrolysis stands out for its high efficiency and rapid response. The performance and longevity of the entire system hinge on one critical process: the precision assembly of the PEM electrolyzer stack. This is where the Servo-Hydraulic PEM Electrolyzer Stack Assembly Press comes in—the cornerstone of reliable, high-volume manufacturing.
1. What is a Servo-Hydraulic PEM Electrolyzer Stack Assembly Press?

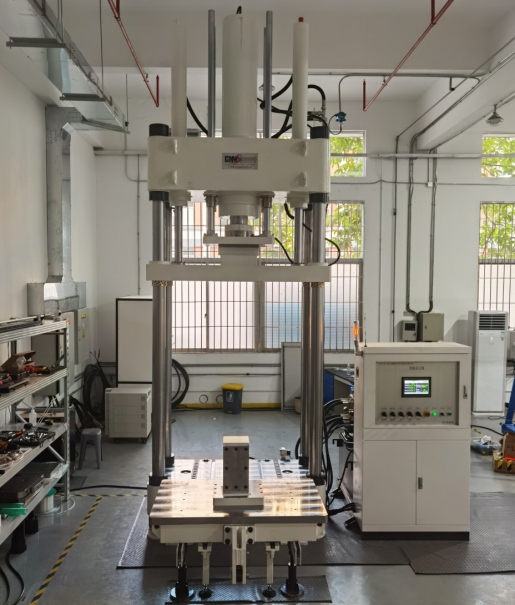

It is a state-of-the-art, intelligent press built for the mass production of PEM electrolyzer stacks. By merging the pinpoint accuracy of servo control with the powerful force of hydraulic systems, it precisely compresses hundreds of delicate components—bipolar plates, membrane electrode assemblies (MEAs), and seals—into a single, perfectly sealed, and high-performance stack. It is the vital link between R&D and cost-effective, industrial-scale hydrogen production.
2. Why Specialized Assembly Equipment is Non-Negotiable
PEM stacks operate under extreme pressure and current density. Ordinary presses cannot meet the stringent demands for quality and safety:
●Unmatched Precision: Pressure control within ±0.5% ensures uniform compression in every cell, which is crucial for consistent efficiency and preventing dangerous gas crossover.
●Complex, Controlled Process: Executes multi-stage pressure profiles (pre-press, main press, hold) to accommodate material properties and ensure optimal bonding.
●Ultra-Rigid & Aligned: Frame rigidity and platen parallelism (<0.02mm/m) are critical to prevent uneven force that could damage the core MEA.
●Clean & Corrosion-Resistant Design: Protects sensitive cell interfaces from contaminants, ensuring purity and longevity.
●Full Digital Traceability: Each stack’s complete “pressure-displacement” curve acts as a digital fingerprint for quality assurance and predictive analytics.
3. Core Components of a Reliable Stack Press
Our electrolyzer stack assembly press is engineered for precision and durability with key modules:
●Ultra-Stable Frame: A rigid four-column or frame structure minimizes deflection under maximum load.
●Smart Servo Drive: High-efficiency servo motors provide precise, on-demand control of hydraulic pressure and flow.
●High-Fidelity Sensors: Real-time feedback from pressure and displacement sensors enables closed-loop control.
●Advanced Control System: An integrated platform (Industrial PC/PLC) manages automated cycles, process recipes, and full data logging.
4. The Precision Assembly Process, Simplified
Our automated process ensures every stack is assembled perfectly:
●Precise Alignment: Components are positioned accurately.
●Pre-Press: Gaps are gently eliminated.
●Main Press (Core): The stack is compressed to its target thickness while the system records the vital quality-assurance “pressure-displacement” curve.
●Hold & Settle: Pressure is maintained to ensure lasting seal integrity.
●Lock & Release: The stack is fastened and unloaded, ready for testing.
5. Key Benefits for Your Hydrogen Production
●Superior Energy Efficiency: “Power-on-demand” servo technology reduces energy consumption by 30-70% compared to standard hydraulic presses.
●Unrivaled Consistency: Achieve identical compression for every stack—essential for reliable performance in large-scale deployments.
●Flexible & Future-Proof: Easily adapt to different stack designs and evolving production recipes through programmable controls.
●Data-Driven Manufacturing: Enable smart factory integration, predictive maintenance, and product digital twins with comprehensive process data.
Your Strategic Partner in Green Hydrogen Manufacturing
The Servo-Hydraulic PEM Electrolyzer Stack Press is more than a machine—it’s your partner in building the foundation of the hydrogen economy. By guaranteeing precision, efficiency, and traceability, it directly lowers the levelized cost of hydrogen (LCOH) and de-risks scale-up.
Ready to elevate your manufacturing quality and efficiency? Explore how our advanced assembly press technology can become the backbone of your production line.
