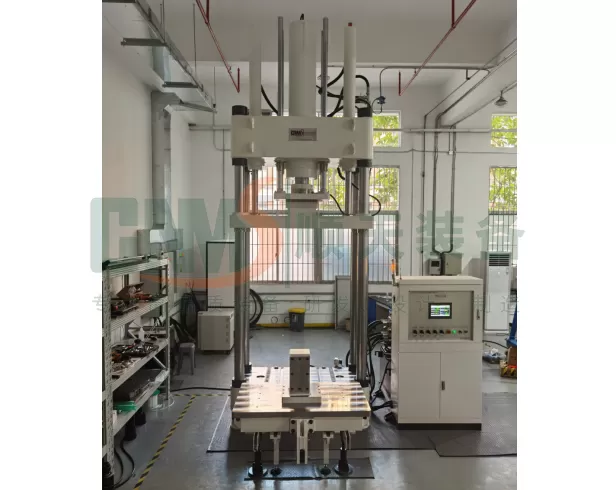

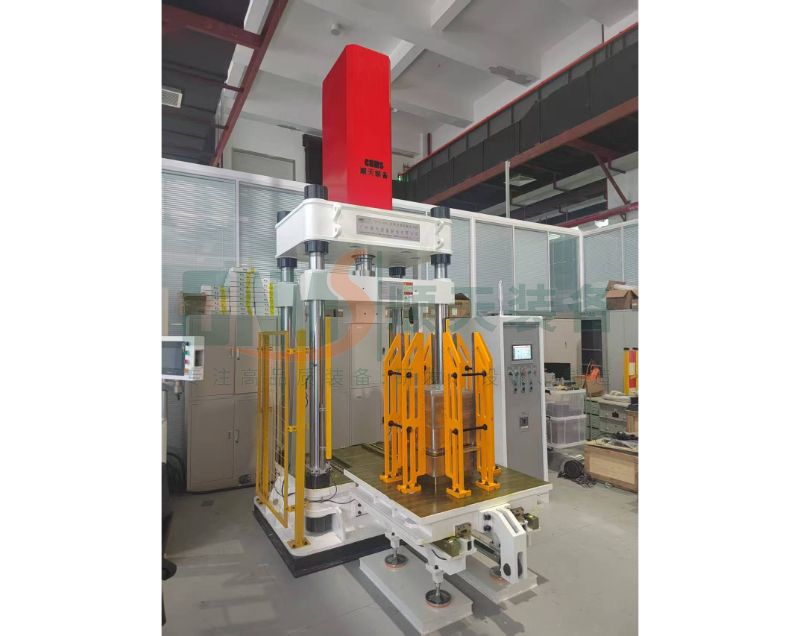

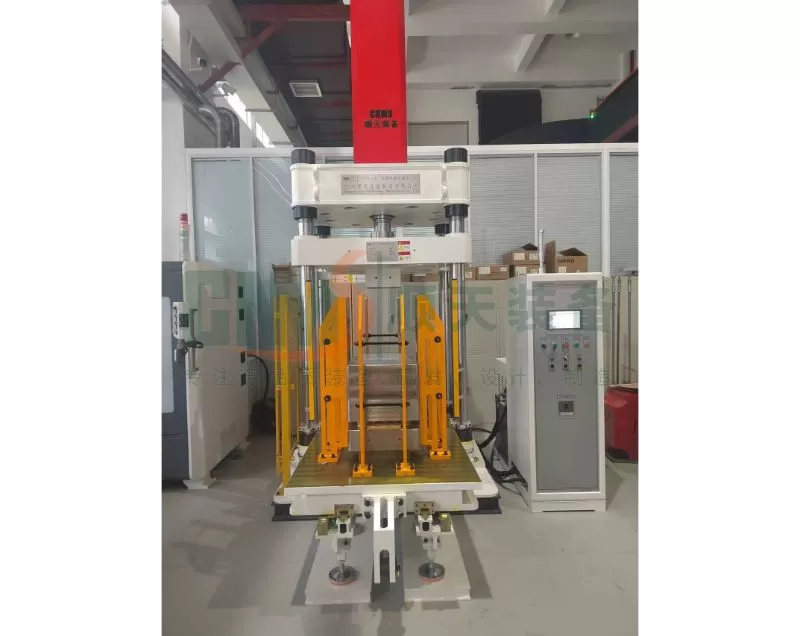

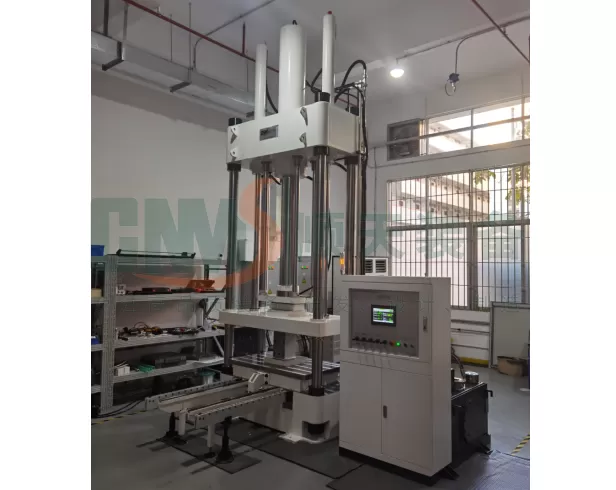

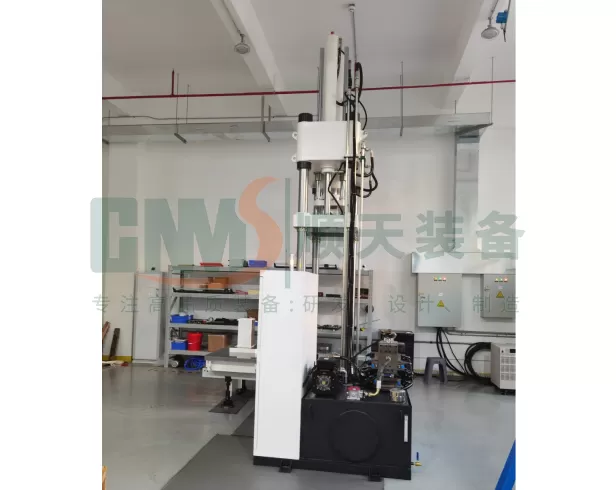

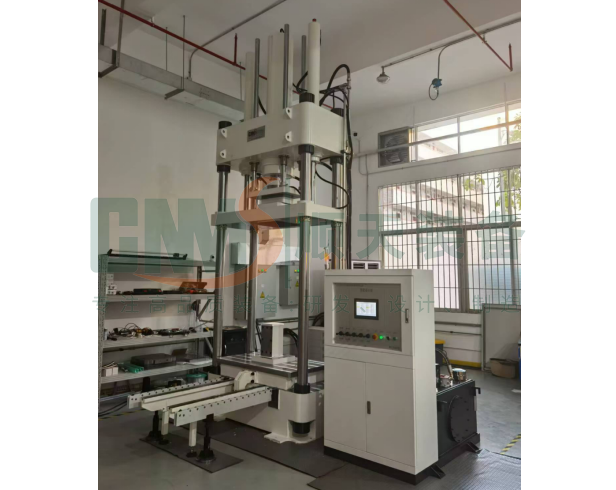

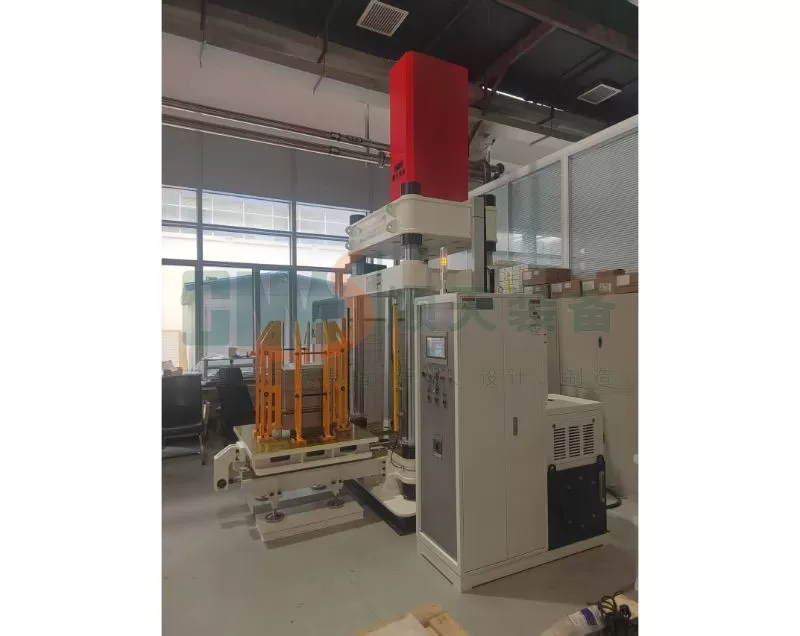

The electrolyzer stack assembly servo-hydraulic press is an advanced pressure assembly device that integrates high precision, intelligence, and energy efficiency. It is specifically designed for the precise stacking and compression of core components in PEM electrolyzer stacks, such as multi-layer bipolar plates, membrane electrodes, and sealing elements. This ensures that the stack maintains stable contact resistance, excellent gas tightness, and uniform stress distribution even under long-term high-pressure and highly corrosive operating conditions.
The servo-hydraulic press provides programmable force, displacement, and speed control to achieve consistent cell assembly quality while reducing sealing failures, uneven compression, and component deformation.
PRODUCT DESCRIPTION
●Ultimate Precision, Guaranteed Yield: Servo closed-loop control achieves micron-level accuracy in pressure and displacement, ensuring uniform internal stress distribution within the stack. This fundamentally enhances consistency and yield rates.
●Intelligent Control, Data Traceability: Built-in specialized press-fitting processes support complex curve settings and real-time monitoring. Full-process data recording enables traceability, providing robust evidence for quality analysis and process optimization.
●Energy-Efficient, Cost-Effective: Servo drives significantly reduce energy consumption compared to traditional hydraulic presses. Comprehensive automation interfaces enable seamless integration into smart production lines, boosting overall manufacturing efficiency.
●Robust, Stable, Durable: High-rigidity chassis and specialized corrosion-resistant design ensure long-term stable operation under demanding conditions, extending equipment lifespan while minimizing maintenance costs.
Electrolyzer stacks require highly controlled assembly processes because compression directly affects:
● Gas sealing performance
● Electrical contact resistance
● Water and gas flow distribution
● Stack durability
● Hydrogen production efficiency
The electrolyzer assembly press uses closed-loop servo hydraulic control to maintain stable pressing parameters throughout the entire compression cycle.
| Item | TSPD -5T | TSPD -20T | TSPA -50T | TSPA -40/60T | TSPA- 60/100T | TSPB- 60/200T | TSPB- 70/315T | TSPB– 100/500T |
| Nominal force (kN) | 50 | 200 | 500 | 1000 | 1600 | 2600 | 3850 | 6000 |
| Disc spring compression force (kN) | - | - | - | 400 | 600 | 600 | 700 | 1000 |
| Table spacing (mm) | 1000 | 1000 | 1000 | 1300 | 1300 | 1300 | 1500 | 1700 |
| Master Cylinder Stroke (mm) | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Upper bench area (mm) | 400*150 | 400*150 | 400*150 | 400*150 | 400*150 | 400*150 | 400*150 | 400*150 |
| Lower bench area (mm) | 1000*500 | 1000*500 | 1000*500 | 1300*800 | 1300*800 | 1600*1000 | 2000*1600 | 2200*2200 |
| Mobile table area (mm) | - | - | 1000*500 | 1300*800 | 1300*800 | 1600*1000 | 2000*1600 | 2200*2200 |
| Parallelism (mm) | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.05 | 0.06 | 0.06 |
| Flatness (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
Shuntian provides customized electrolyzer cell assembly press solutions based on:
● Electrolyzer type
● Stack dimensions
● Production capacity
● Automation requirements
● Inspection process
Optional configurations include:
● Custom tooling fixtures
● Automatic loading systems
● Barcode traceability
● MES production integration
● Leak testing integration
Shuntian specializes in precision equipment for hydrogen energy and new energy industries.
Advantages include:
● Experience in hydrogen fuel cell and electrolyzer equipment development
● Servo hydraulic press technology
● Customized automation solutions
● Precision force and displacement control
● Support from prototype development to mass production
The Electrolyzer Cell Assembly Servo-Hydraulic Press helps manufacturers improve assembly consistency, production efficiency, and quality control for hydrogen energy applications.
Contact Shuntian for a Customized Electrolyzer Assembly Press Solution
Share your electrolyzer cell dimensions, required compression force, production capacity, and automation requirements. Our engineers can recommend a suitable servo-hydraulic press configuration for your hydrogen production equipment.
