In today's industrial manufacturing landscape accelerating toward “high precision, high efficiency, and low energy consumption,” servo-driven hot and cold press forming machines are emerging as indispensable core equipment in high-end manufacturing sectors such as automotive production, precision electronics processing, and composite material forming—all thanks to their exceptional technical performance. Through precise servo system control combined with the innovative “heat-forming-rapid cooling” process, this equipment has successfully overcome the limitations of traditional forming equipment in precision, energy efficiency, and process adaptability, providing an optimal solution for the mass production of complex structural components.
Core Technology: System Composition and Functional Analysis

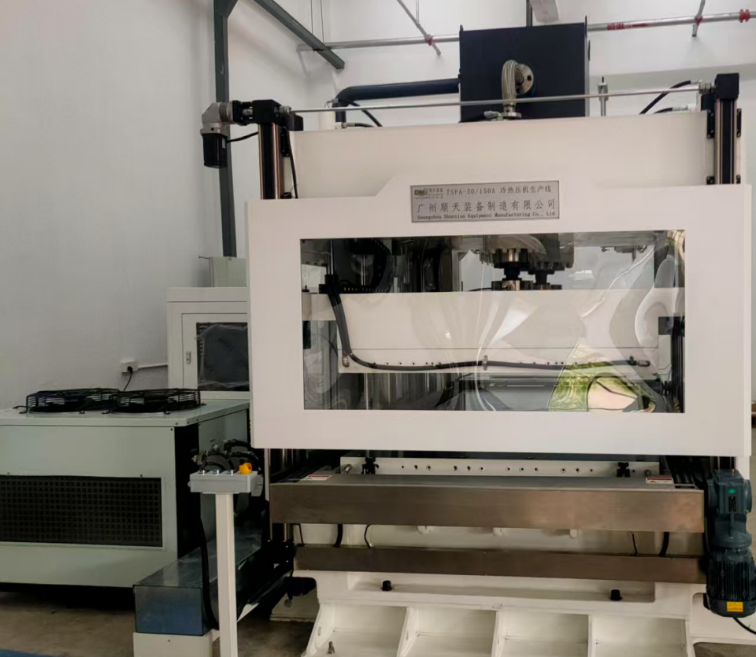

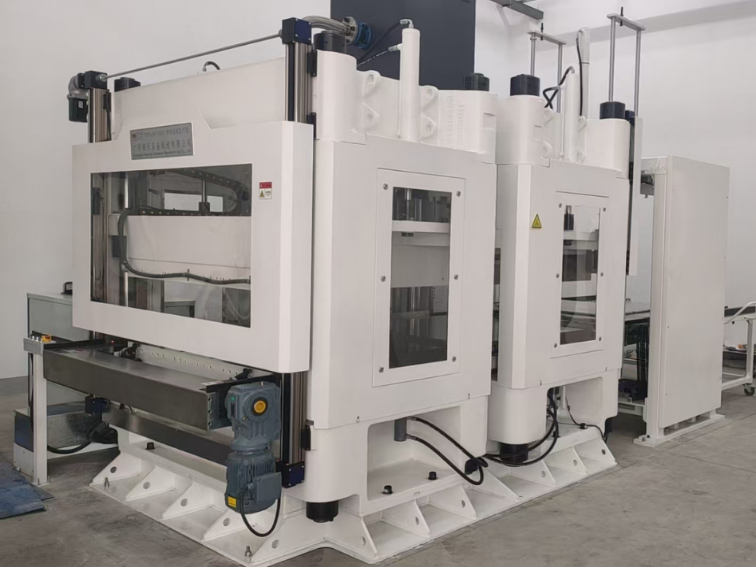

The servo hot/cold press forming machine is a composite precision forming equipment driven by servo motors, integrating both hot and cold pressing functions. Its technical framework comprises four key systems:
● High-Precision Servo Drive System: Utilizing fully closed-loop control technology, it enables real-time, precise adjustment of pressure and speed. Control accuracy reaches ±0.01mm, with pressure fluctuations maintained within ±1%, providing reliable assurance for precision forming.
● Intelligent Temperature Control Hot Press Module: Equipped with advanced heating elements (graphene heating sheets/cast aluminum heating plates) and a PID intelligent temperature control system. Operating temperature range: 50-300°C (high-temperature models up to 500°C). Temperature uniformity error ≤ ±3°C, ensuring thorough material softening and precise shaping.
● High-Efficiency Cooling and Setting Module: Optimized cooling circuits (water-cooled/air-cooled) achieve rapid workpiece cooling at rates of 10-20°C/s, effectively preventing deformation and cracking to guarantee forming quality.
● Intelligent Control System: Integrated PLC and touchscreen interface supports preset process parameters, recipe management (stores 100+ process schemes), real-time data monitoring, and curve analysis. High-end models feature MES system interfaces for digital production management.
Process Principle: The Scientific “Heat-Press, Cold-Set” Workflow
The equipment's core competitiveness stems from its scientifically rigorous process design. The entire molding cycle is divided into four precisely controlled stages:
● Intelligent Preheating Stage: The hot-press module heats up to the material's softening point according to a preset curve. The servo system simultaneously applies a pre-pressure of 10%-20% of the molding pressure, ensuring perfect material-to-mold contact.
● Precise Hot Pressing Stage: Upon reaching the set temperature, the servo system rapidly increases to full forming pressure (adjustable from 5-500kN) and maintains stability for a set duration (10-300s), enabling precise material forming through thermal coupling.
● Rapid Cooling Stage: The cold-press system immediately activates, rapidly cooling the material while maintaining 50%-80% of the forming pressure. This prevents shrinkage deformation and ensures dimensional stability.
● Automatic Demolding Stage: Once the temperature drops below the set-shape threshold, the system automatically opens the mold to remove the part, completing the entire forming cycle. Cycle time can be flexibly adjusted between 30 seconds and 5 minutes based on part dimensions.
Technical Advantages: Performance Breakthroughs Beyond Conventional Methods
Compared to traditional forming equipment, servo-driven hot/cold press forming machines achieve major breakthroughs in three dimensions:
● Ultimate Precision and Exceptional Consistency: Closed-loop control completely eliminates parameter drift caused by media leakage and pressure fluctuations in conventional equipment. Batch part dimensional tolerances are controlled within ±0.05mm, far exceeding the ±0.2mm level of traditional equipment.
● Significant Energy Savings and Environmental Benefits: Servo motors deliver power on demand, reducing standby energy consumption by over 80%. Eliminating hydraulic oil contamination and incorporating rapid cooling processes lowers energy consumption per unit by 30%-50% compared to traditional equipment.
● Exceptional Process Adaptability and Material Compatibility: Flexible adjustment of parameters like temperature, pressure, and time ensures perfect adaptation to forming requirements for metal materials (aluminum foil, copper sheets), polymer materials (plastics, rubber), and composite materials (carbon fiber, glass fiber).
Application Areas: Driving Manufacturing Upgrades
Equipped with precision and high efficiency, the machinery has played a vital role across multiple critical manufacturing sectors:
● Automotive Manufacturing: Ensures structural integrity and dimensional accuracy for key components through thermal pressing of battery electrode sheets in new energy vehicles, precision stacking of motor cores, and cold pressing of carbon fiber interior parts.
● Electronics Manufacturing: Achieves precise temperature control during PCB lamination to prevent oxidation and enhances performance through rapid curing; ensures connection reliability in semiconductor chip hot-press bonding
● Composites: Enables thorough resin impregnation and rapid shaping during carbon fiber/glass fiber component molding, significantly reducing warping deformation and boosting production efficiency
● Precision Hardware: Cold-pressing thin steel sheets for post-stamping straightening and hot-stamping metal fittings to resolve dimensional deviations and blurred markings in traditional processes
Development Prospects: Advancing Intelligence and Specialization
Addressing manufacturing demands for flexibility and sustainability, servo-driven hot/cold press forming machines are evolving in these directions:
● Deep Intelligence: Integrating AI process optimization algorithms for real-time parameter self-adjustment via data collection; pairing with machine vision for online quality inspection to build integrated “processing-inspection” solutions
● High Customization: Adopting modular design principles to develop specialized configurations for diverse industries—e.g., high-temperature composite heating systems and microelectronics precision forming drive modules
● Comprehensive Greening: Utilizing new insulation materials to reduce heat loss, developing waste heat recovery systems to enhance energy efficiency, and adopting eco-friendly cooling media to minimize environmental impact
The technological breakthroughs in servo-controlled hot/cold press forming machines mark a transformative leap for forming equipment—shifting from “traditional power” to “digital precision”—and embody the “precision manufacturing” philosophy in the forming sector. As automotive electrification, electronic miniaturization, and material lightweighting trends deepen, this equipment will deliver increasingly precise, efficient, and eco-friendly forming solutions through continuous technological innovation, becoming a pivotal driver for industrial upgrading. In the future, with ongoing advancements in intelligence and specialization, servo-controlled hot/cold press forming machines will play a critical role across broader industrial applications, injecting robust momentum into the high-quality development of manufacturing.
