November 06, 2025
As global efforts advance toward achieving carbon neutrality and peak carbon emission targets, hydrogen energy—particularly “green hydrogen” powered by renewable sources—is emerging as a pivotal player in the energy transition. Among various hydrogen production technologies, proton exchange membrane (PEM) water electrolysis stands out as one of the optimal choices for integration with renewable energy due to its high efficiency, rapid response, and superior hydrogen purity. The stack—the core component of a PEM electrolyzer—directly determines the performance, lifespan, and cost of the entire hydrogen production system through its manufacturing precision and assembly quality. Consequently, a highly automated and precision-engineered PEM hydrogen production stack assembly line has become the fulcrum for scaling up the green hydrogen industry.
Why is stack assembly so critical?
The stack—composed of hundreds of individual cells (membrane electrode assembly + bipolar plate) stacked using screws or hydraulic cylinders—serves as the “energy conversion core.” Its internal structure represents a deep integration of microscopic nanostructures and macroscopic mechanical components. Any minor flaw can trigger chain reactions:
Srict gas tightness requirements: Hydrogen and oxygen must be rigorously isolated under hundreds of bars of pressure. Micron-level leaks not only pose safety hazards but also drastically reduce hydrogen production efficiency.
Contact resistance impacts energy consumption: Bipolar plates and membrane electrode assemblies require uniform and compatible contact pressure. Excessive contact resistance directly converts into thermal losses, lowering overall stack efficiency.
Zero tolerance for contamination: Trace metal ions, dust, and other pollutants poison precious metal catalysts, causing permanent degradation of MEMBRANE ELECTRODE ASSEMBLIES (MEAs) performance;
Uniform mechanical stress is essential: Uneven assembly pressure can cause localized deformation or damage to MEAs, leading to gas cross-contamination and ultimately short-circuit failure.
Clearly, stack assembly is far from a simple “stacking of components.” It represents a cutting-edge manufacturing technology integrating precision mechanics, automated control, materials science, and process engineering—the core challenge in mass-producing PEM hydrogen generation equipment.

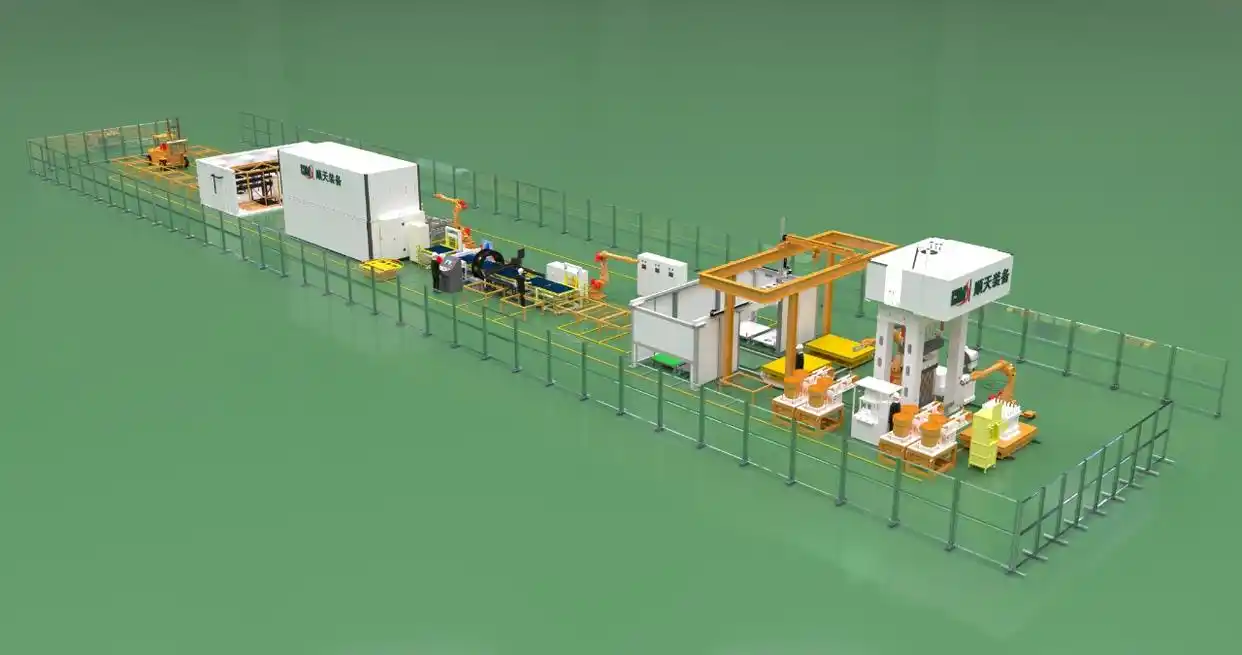

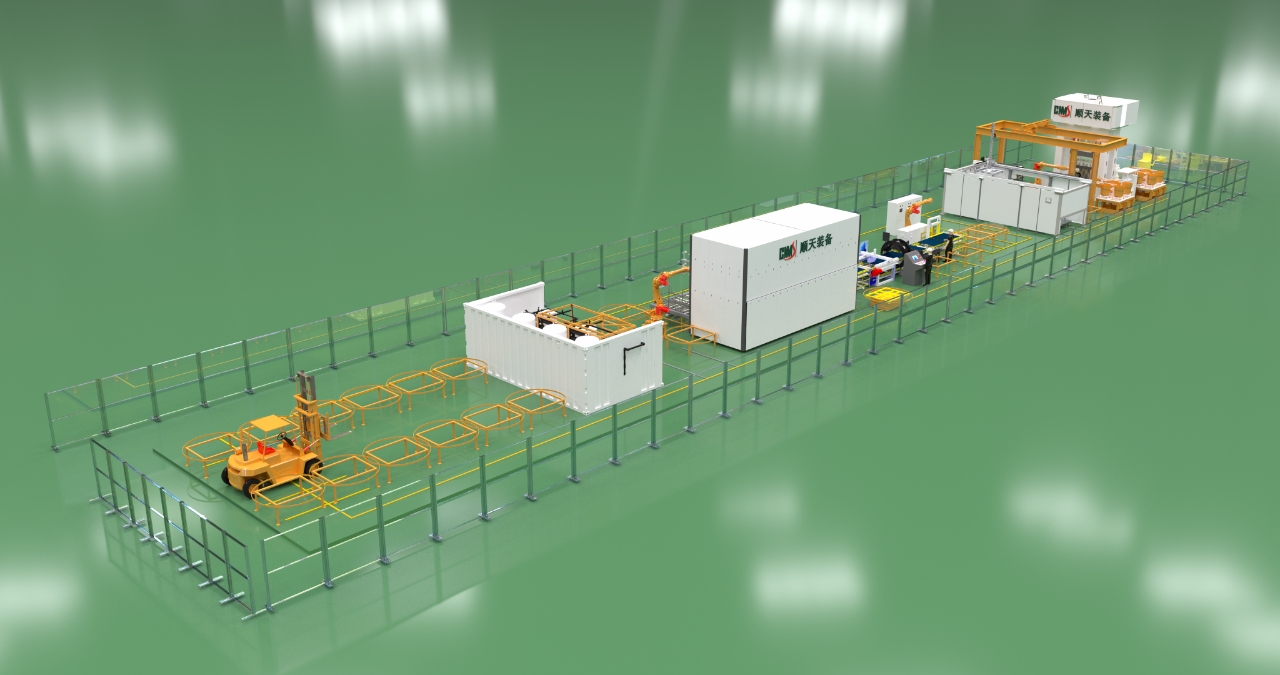

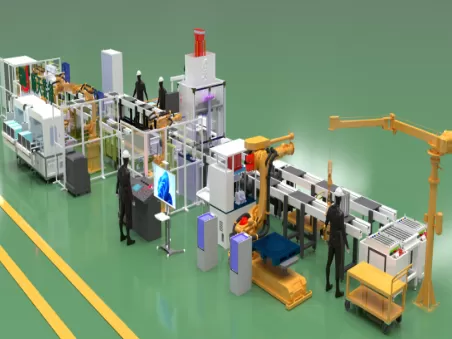

Core Process Steps in PEM Fuel Cell Assembly Lines
Modern PEM fuel cell assembly lines comprise multiple core modules, with each step seamlessly integrated to collectively ensure fuel cell quality:
1. Pre-Process Preparation and Inspection Zone: Ensuring cleanliness and consistency from the outset
Precision Component Pre-treatment: Metal parts such as bipolar plates and end plates undergo multiple processes including ultrasonic cleaning and plasma cleaning to thoroughly remove surface oils and particulates, ensuring compliance with cleanliness standards.
Online 100% Visual Inspection: Utilizing high-resolution cameras and image processing algorithms, critical dimensions like bipolar plate flow channels and sealing grooves undergo full inspection, instantly rejecting components with dimensional deviations or surface defects;
ME Membrane Performance Screening: Initial activity and consistency testing of membrane electrodes identifies compliant products, preventing non-conforming components from entering subsequent stages.
2. Single Cell Assembly Unit: Millimeter-Level Precision “Component Integration”
This fully automated workstation integrates dispersed components into stable single cells:
Multi-Layer Precision Alignment: High-precision robotic vision systems stack membrane electrode assemblies, gas diffusion layers, bipolar plates, and sealing rings with multi-layer alignment, ensuring hole and flow channel registration accuracy within ±0.1mm;
Controlled Pre-Pressing: A predetermined pressure is applied for initial pressing, setting the sealing ring and forming a structurally stable single cell unit, laying the foundation for subsequent stacking.
3. Stack Assembly and Pressing Main Production Line: Precision Control at the “Heart” of the Line
As the core segment of the production line, it demands the highest levels of automation and precision:
Ultra-clean Stacking Environment: Six-axis robots retrieve components from single-cell units and stack them sequentially along a central positioning rod. The entire process occurs in a temperature- and humidity-controlled ultra-clean environment to prevent component moisture absorption and contamination.
Real-time Pressure Monitoring: During stacking, force-displacement sensors continuously collect pressure data to generate pressure curves. This enables immediate detection of components with abnormal thickness or foreign object interference, preventing accumulation of defective products.
Intelligent Final Compression: Upon stacking completion, a servo electric cylinder or hydraulic system applies the designed compression force. Dual-loop “pressure-displacement” control ensures precise and stable pressure application while recording the final compression value as the stack's unique “performance data tag.”
4. Post-Process Testing & Encapsulation Zone: Comprehensive Validation & Traceability
High-Precision Leak Testing: Utilizes helium mass spectrometry leak detection technology to measure overall stack and individual compartment leak rates, ensuring compliance with 10⁻⁶ mbar・L/s or higher standards;
Contact Resistance Testing: Measures overall stack contact resistance via low-resistance tester to indirectly verify press-fit quality compliance;
Optional Factory Performance Testing: Select high-end production lines integrate simplified test benches. Deionized water is introduced during brief energization to obtain initial voltage-current curves, validating fundamental stack performance;
Encapsulation and Traceability Marking: After passing tests, housings, connectors, and sensors are installed. Laser marking assigns a unique identity ID, enabling full lifecycle quality traceability.
Technical Challenges and Development Trends Facing Production Lines
1. Current Core Challenges
Cost Control Difficulties: Precious metal catalysts and titanium bipolar plates drive up material costs, necessitating cost allocation through improved production line yield rates and optimized production cycle times;
Capacity Ramp Pressure: Under gigawatt-scale market demand, balancing production cycle times and utilization rates is crucial to ensure scalable supply capabilities.
Flexible Adaptability Requirements: Significant structural and dimensional variations across different power stacks necessitate production lines that balance standardized batch manufacturing with rapid changeover capabilities.
2. Future Development Trends
Comprehensive Intelligent Upgrades: Transitioning from “machine substitution” to “intelligent decision-making,” integrating MES systems for end-to-end data traceability, and leveraging AI algorithms to optimize pressing parameters and predict equipment maintenance needs;
Widespread Adoption of Online Non-Destructive Testing: Incorporating infrared thermal imaging, X-ray, and other technologies to identify internal defects in real-time during assembly, reducing downstream rework;
Modular Standardized Design: Promoting standardized stack structures enables rapid “building block”-style deployment and expansion of core production line modules to accommodate diverse product specifications;
Adaptation for New Materials and Processes: Developing innovative gripping, alignment, and pressing techniques for novel materials like ultra-thin titanium felt diffusion layers and low-platinum/platinum-free catalysts to ensure production line compatibility.
Today's PEM water electrolysis hydrogen production stack assembly lines have transcended the boundaries of traditional manufacturing workshops, evolving into “smart manufacturing entities” that integrate data, algorithms, and precision engineering. Their maturation and advancement form the core foundation for reducing green hydrogen costs and achieving scalable supply. With ongoing technological breakthroughs, this “core green hydrogen equipment production line” will continuously deliver highly efficient and reliable “hydrogen cores” with greater precision, faster efficiency, and lower costs. It provides critical equipment support for building a clean, low-carbon, and secure future energy system.
