When it comes to LED boards—whether light guides, diffusers, or substrates—quality starts with precision manufacturing. In a fast-evolving industry, you need equipment that delivers consistent, high-performance results.

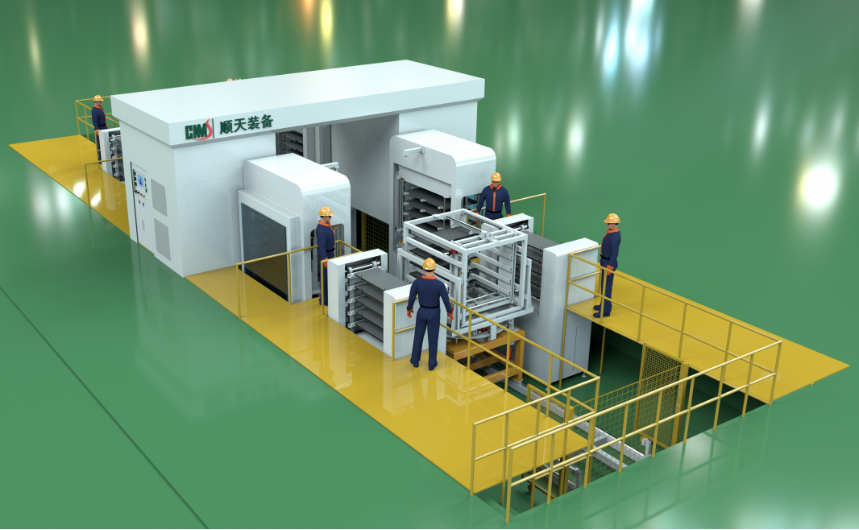

At [Shuntian Equipment] , we design and build multi-layer hot and cold press production lines specifically for LED panels. Our advanced lamination systems combine thermal control, automation, and efficiency into one integrated solution. More than just machines, we provide the expertise and technology to help you produce better boards, faster.
Producing high-quality LED panels (such as PMMA, PC, or MS light guide plates) requires solving two critical problems:
1. Optical Purity: Any internal stress or uneven thickness results in light refraction distortion.
2. Thermal Efficiency: The process requires both high heat for molding and rapid cooling to "lock in" the material properties.
Standard single-layer or poorly controlled presses lead to warping, inconsistent light transmission, and low yield rates. Our dedicated production line solves this through an integrated thermal-curing and rapid-cooling cycle.
1. Superior Thermal Accuracy for Optical Clarity
LED materials are sensitive. Our multi-layer presses feature independent zone temperature control, maintaining a temperature uniformity of within ±1.5°C across the platen. This ensures the resin flows evenly, resulting in light transmission rates exceeding 92%. The integrated cold press section utilizes a high-flow circulating cooling system to rapidly set the material, eliminating internal stress marks and "fish eyes" that plague standard production.
2. High-Capacity, Large-Format Production
To keep up with the demand for larger TV screens and lighting panels, our lines are built for scale.
●Multi-Layer Stacking: Available from 3 to over 20 openings, allowing for batch production that drastically reduces cost per unit.
●Ultra-Flat Platens: We use precision-ground platens with parallelism maintained within 0.05mm/m. This guarantees uniform thickness across the entire LED board, eliminating the need for secondary sanding.
3. Fully Automated, Clean Room Compatible
Contamination is the enemy of optics. Our lines feature fully automatic loading and unloading systems with servo-controlled pressing cycles. This minimizes human contact, reducing scratches and dust adhesion. The PLC-based control system stores hundreds of recipes, allowing for instant switching between producing thin backlight panels and thick LED lighting covers.
Choosing [Shuntian Equipment] means investing in a partnership. We understand that you are not just buying a press; you are buying the capability to produce superior LED boards.
●Process Engineering Support: Our team has decades of combined experience in optical-grade pressing. We assist you in formulating the perfect temperature and pressure curves for your specific raw materials.
●Custom Engineering: Need a special size? Handling exotic composites? We offer custom solutions for tonnage, platen size, and heating media.
●Global Service: From installation and commissioning to operator training, we ensure your production line operates at peak efficiency 24/7.
In the competitive landscape of LED lighting and displays, precision manufacturing equipment is your strongest competitive advantage. Partner with a manufacturer who understands the science behind the light.
Contact [Shuntian Equipment] today to discuss your next project.
Tel/WhatsApp: [+86 18629511413]
Email: [rubyzhang@dlcntn.com]
Official Website: [https://www.shuntian-equipment.com/]
Engineered for Precision. Built for Performance.
