In the wave of modern manufacturing advancing toward precision and efficiency, vacuum hot press forming machines have become indispensable core equipment across numerous industries due to their unique technological advantages. By precisely controlling temperature, pressure, and vacuum environments, they achieve the forming and processing of various materials, providing robust support for high-quality product manufacturing.

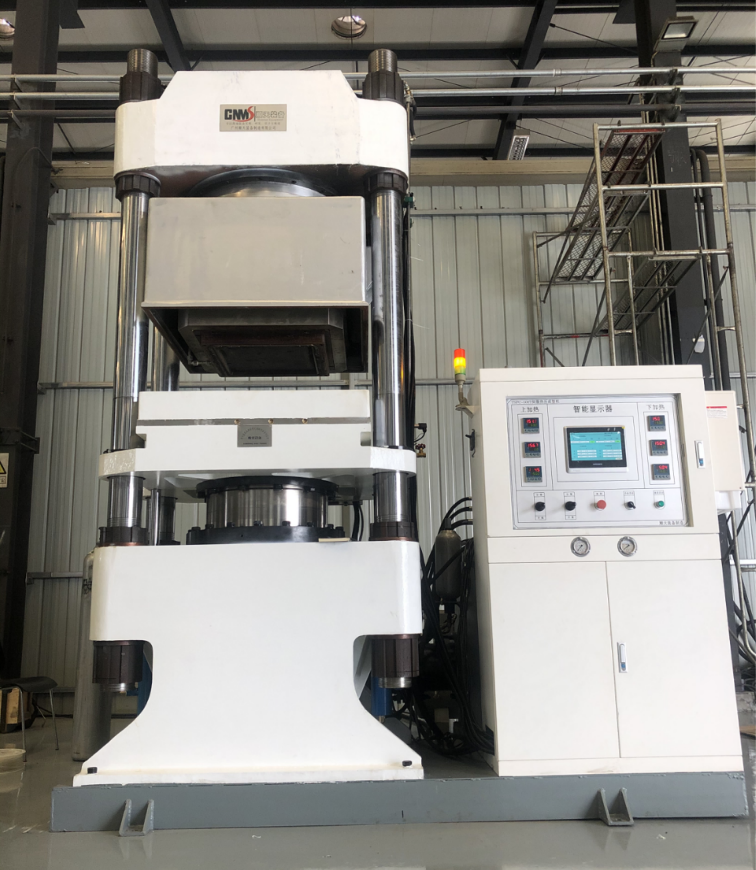

In-Depth Analysis of Vacuum Hot Press Forming Machine Principles
The core operational logic of vacuum hot press forming machines lies in the organic integration of three key technical processes: “thermal softening,” “vacuum adhesion,” and “pressure setting.” First, the equipment uses a heating system to uniformly preheat raw materials (such as plastic sheets, composite materials, metal foils, etc.), bringing them to a softened state and imparting plasticity. Subsequently, the vacuum system activates, rapidly evacuating air between the mold and material. Atmospheric pressure then forces the softened material to tightly conform to the mold cavity surface, forming the initial product outline. Finally, the pressure mechanism applies a preset force, coupled with sustained temperature control, to complete material shaping within the mold. After the cooling system stabilizes the product temperature, demolding occurs, yielding a precision-molded part. Throughout this process, the coordinated control of temperature, pressure, vacuum level, and holding time directly determines the molding quality of the product.

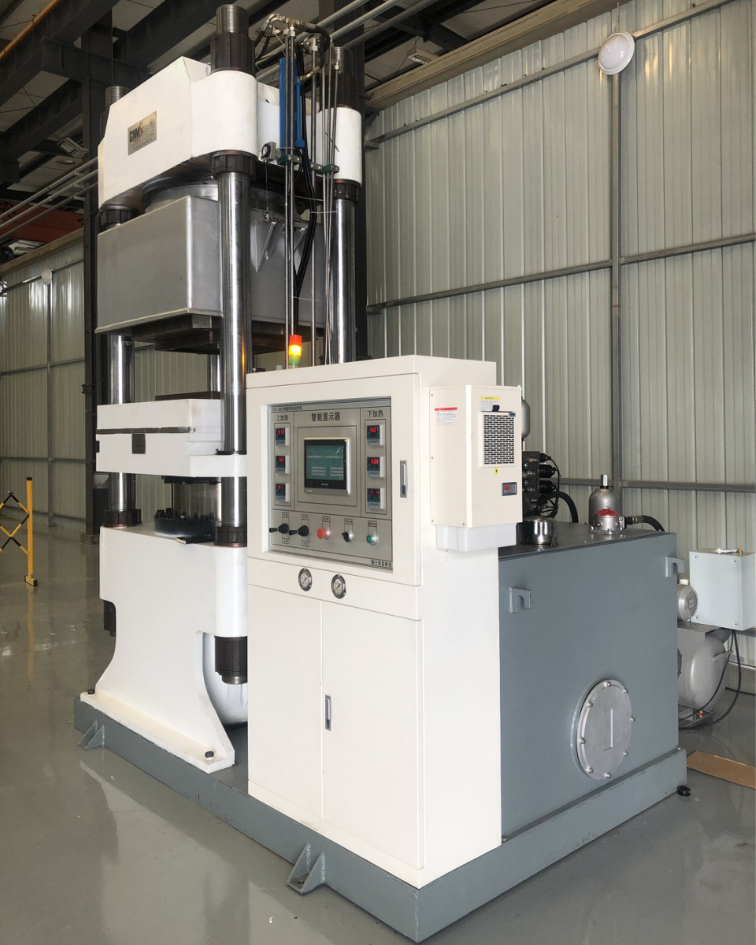

Detailed Explanation of Core Components in Vacuum Hot Press Molding Machines
The stable operation of vacuum hot press molding machines relies on the coordinated functioning of multiple critical components, each with distinct roles and indispensable to the system:
1. Heating System: Utilizes electric heating tubes, infrared heating panels, or electromagnetic induction heating methods. Equipped with a PID temperature control module, it achieves precise temperature regulation within ±1℃, ensuring uniform material heating and preventing localized overheating or insufficient softening.
2. Vacuum System: Comprising a vacuum pump (dry vacuum pump or rotary vane vacuum pump), vacuum valves, and a vacuum gauge. This system rapidly achieves a vacuum level exceeding -0.095 MPa within the mold cavity, ensuring tight adhesion between material and mold to minimize defects like bubbles and wrinkles.
3. Pressure Mechanism: Commonly available in pneumatic or hydraulic drive configurations, it provides adjustable pressure ranging from 0.1 to 50 MPa. The pressure value is set according to the product material and thickness to ensure a dense structure and dimensional stability.
4. Mold Assembly: Serving as the “template” for forming, molds are typically made of aluminum alloy, steel, or silicone. Cavity structures can be customized based on product design. Some equipment supports quick mold change, enhancing flexibility for multi-product production.
5. Control System: Centered around a PLC with a touchscreen interface, it allows presetting multiple forming parameters (temperature, pressure, vacuum level, time, etc.). It supports parameter storage and recall while featuring fault alarms (e.g., abnormal temperature, insufficient vacuum) to enhance operational safety and convenience.
6. Cooling System: Utilizes water or air cooling to rapidly reduce post-forming temperatures, shortening cooling cycles and boosting production efficiency while preventing deformation caused by uneven cooling.
Comprehensive Overview of Vacuum Thermoforming Machine Applications
Leveraging its adaptability to diverse materials and high-precision forming capabilities, vacuum thermoforming machines have penetrated multiple critical industries:
1. Packaging Industry: Core equipment for food and pharmaceutical packaging, producing thermoformed containers from PET and PVC (e.g., mooncake trays, pharmaceutical blister packs). Vacuum sealing extends product shelf life while meeting demands for transparent, aesthetically pleasing packaging.
2. Automotive Manufacturing: Used for forming interior components (e.g., dashboard skins, door trim panels) from ABS, PP, and other composite materials. The hot-pressing process achieves complex curved surfaces with high surface flatness and excellent adhesion, meeting the refined standards of automotive interiors.
3. Electronics Industry: Plays a critical role in semiconductor packaging and circuit board manufacturing. Examples include hot-press lamination of flexible printed circuits (FPC) and production of insulating housings for electronic components. The vacuum environment prevents air bubble retention, ensuring component stability and longevity.
4. Aerospace Sector: For high-performance materials like carbon fiber composites and titanium alloy sheets, vacuum hot-press forming produces aircraft components (e.g., wing skins, satellite structural parts). This process preserves material mechanical properties while achieving lightweight and high-precision components.
5. Medical Device Industry: Used to manufacture disposable medical devices (e.g., blood lancet protective covers, ventilator masks). Employing medical-grade plastics as raw materials and utilizing equipment with sterile-designed structures, this process meets the hygiene standards and molding precision requirements for medical devices.
Vacuum Hot Press Forming Machine Selection Guide: Key Considerations
Compared to traditional processes like injection molding and stamping, vacuum hot press forming machines offer significant technical advantages:
1. High forming precision: The vacuum environment effectively eliminates air gaps between materials and molds. Combined with precise temperature and pressure control, product dimensional tolerances can be maintained within ±0.02mm, meeting precision manufacturing requirements.
2. Wide Material Compatibility: Capable of processing plastics, metals, composite materials, and more. It achieves stable forming for both thin sheets and thick plates, particularly suited for difficult-to-form irregular parts and complex curved surfaces.
3. High Production Efficiency: High automation enables continuous operation from preheating to forming and demolding. Cycle times can be as short as tens of seconds, and multi-station designs significantly boost batch production capacity.
4. Significant Cost Advantage: Mold manufacturing complexity is lower than injection molds, with costs approximately 1/3 to 1/5 of traditional injection molds. Equipment energy consumption is relatively low (compared to large injection molding machines), making it suitable for small-to-medium batch production and frequent product variety changes.
5. Environmental Performance: Some equipment utilizes solvent-free heating technology and can accommodate eco-friendly materials like biodegradable plastics, reducing pollutant emissions during production and aligning with green manufacturing trends.
These advantages position vacuum hot-pressing machines as pivotal in driving industry technological advancement: On one hand, they help downstream sectors enhance product quality and production efficiency—such as enabling lightweight interior components in the automotive industry to reduce vehicle energy consumption. On the other hand, they propel innovations in material processing techniques, making industrial applications of novel materials like carbon fiber and flexible composites feasible.
Future Development Trends of Vacuum Hot-Pressing Technology
As manufacturing transitions toward intelligent, green, and high-end development, vacuum hot-press forming machines will undergo technological innovation and functional upgrades. Key future directions include:
1. Intelligent Upgrades: Integrating AI vision inspection systems to monitor defects (e.g., bubbles, cracks) in real-time during forming and automatically adjust parameters; leveraging industrial internet technology for remote monitoring of operational data and predictive maintenance to minimize downtime.
2. Green Improvements: Adopting more efficient heating methods (e.g., electromagnetic induction heating) to reduce energy consumption; optimizing equipment structural design to minimize material waste; developing forming processes compatible with biodegradable and recycled materials to meet environmental policy requirements.
3. Multi-Function Integration: Integrates molding with subsequent processing (e.g., cutting, punching, surface treatment) into a single “one-stop” production line, shortening product cycles while reducing transportation costs and losses between processes.
4. Extreme Condition Adaptation: Develop specialized vacuum hot-press molding machines capable of withstanding high temperatures (above 500°C) and pressures (above 100MPa) to meet the molding demands of high-performance materials in sectors like aerospace and new energy.
5. Parallel Development of Miniaturization and Large-Scale Equipment: On one hand, developing miniature vacuum hot-press forming machines for precision molding of microelectronic components and medical microdevices; on the other hand, creating large-scale equipment to process massive products like wind turbine blades and high-speed rail components, expanding application boundaries.
Industry Value and Future Outlook of Vacuum Hot Press Forming Machines
As critical equipment bridging materials and products, vacuum hot press forming machines hold significant positions in packaging, automotive, electronics, aerospace, and other sectors due to their high precision, efficiency, and broad adaptability. With continuous technological innovation, they will further overcome performance bottlenecks, adapt to more complex operating conditions and new material processing demands, and inject sustained momentum into the high-quality development of manufacturing. In the future, vacuum hot press forming machines will transcend their role as mere production tools to become vital enablers of industry innovation, green manufacturing, and smart manufacturing.
