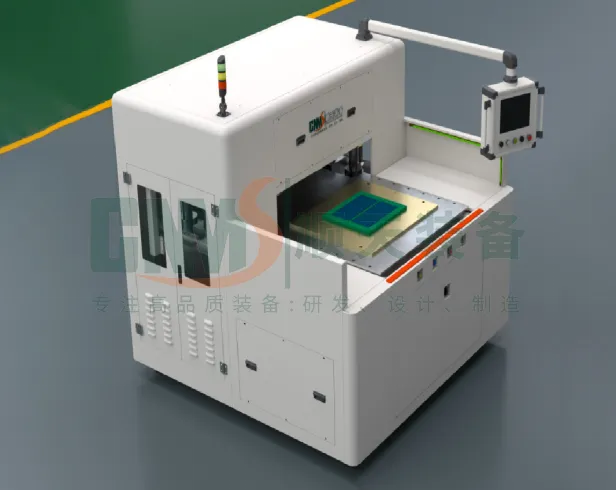

Fuel cell small servo cutting machine – primarily used for precision fixed-length cutting or die-cutting of key fuel cell materials in sheet or roll form. Typical applications include:
●Size cutting of gas diffusion layers (carbon paper/carbon cloth);
●Precision cutting of proton exchange membranes (perfluorosulfonic acid membranes);
●Fixed-length cutting of MEA frame materials (PI, PET, PEN films);
●Trimming or slitting of small MEA pieces after catalyst coating;
●Cutting preparation of sealing gaskets/adhesive films.
Designed with a "small-batch, high-mix, high-precision" philosophy, this equipment is widely used in university laboratories, corporate R&D centers, stack pilot lines, and small-scale production lines.
PRODUCT DESCRIPTION
The equipment uses either a servo‑driven roller feed or a servo‑driven translating worktable to precisely advance the material to the cutting station at a preset length. The cutting mechanism—an upper blade (or rotary circular knife, or die‑cutting mold) working with a lower anvil—completes the shearing or punching action. A control system with closed‑loop feedback from photoelectric sensors or encoders ensures precise synchronization between feed length and cutting timing, producing burr‑free, non‑stretched cut edges.
Depending on the cutting format, two operating modes are available:
●Fixed‑length rotary cutting mode: Continuous roll‑fed material is advanced, and a servo‑controlled rotary circular knife cuts at preset intervals. Ideal for high‑volume, same‑size roll stock.
●Sheet/piece cutting mode: Pre‑stacked sheet material is placed on a carrier platform; the servo‑driven platform or upper die performs a single cutting/punching stroke. Suited for larger or non‑rectangular parts.
1. Compact, benchtop design
Small footprint (typically <1 m), fits on lab benches or next to gloveboxes—perfect for space‑constrained R&D environments.
2. Servo‑driven, high cutting precision
Feed and cutting motions are fully digitally controlled, with repeatable positioning accuracy of ±0.05 mm—meeting fuel cell membrane electrode assembly (MEA) requirements of ≤±0.1 mm dimensional consistency.
3. Fast changeover, easy operation
Cut length, quantity, and speed are adjustable via touchscreen; no mechanical part replacement needed (for straight/rotary blade modes). For die‑change applications, a quick‑change structure allows mold replacement within 5 minutes.
4. Low stress, no material damage
Feed rollers are made of silicone or polyurethane with adjustable pressure to avoid marking or stretching. Sharp cutting edges combined with a resilient lower anvil produce clean, burr‑ and dust‑free cuts on fragile or soft materials such as proton exchange membranes and carbon paper.
5. Safe and clean
Fully enclosed transparent safety shield with interlock switch. Optional dust removal / static elimination devices cater to high‑cleanliness fuel cell material processing.
6. Inline inspection (optional)
A vision system can be added for real‑time measurement of cut dimensions and edge burrs, rejecting non‑conforming parts. It can also be integrated with weighing or thickness measurement units.
1. Fuel cell MEA R&D
Lab‑scale production of carbon paper and proton exchange membranes in various sizes; rapid recipe changes to evaluate how different MEA dimensions affect stack performance.
2. GDL pre‑cutting for assembly
Pre‑cutting gas diffusion layers (GDL) before small‑batch stack assembly, replacing manual scissors or punch presses, improving cut quality and dimensional consistency.
3. Cutting frames & sealing gaskets
Fixed‑length cutting of PI or PET frame films for subsequent thermal bonding processes, avoiding edge curling or dimensional deviations caused by manual cutting.
4. Teaching & demonstration
Training equipment for fuel cell production lines in universities or vocational schools, demonstrating precision cutting processes.
