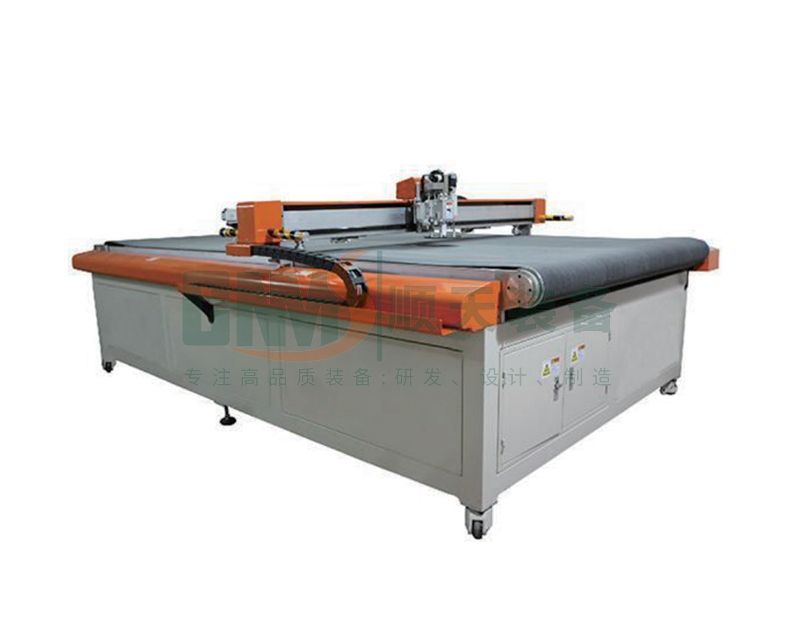

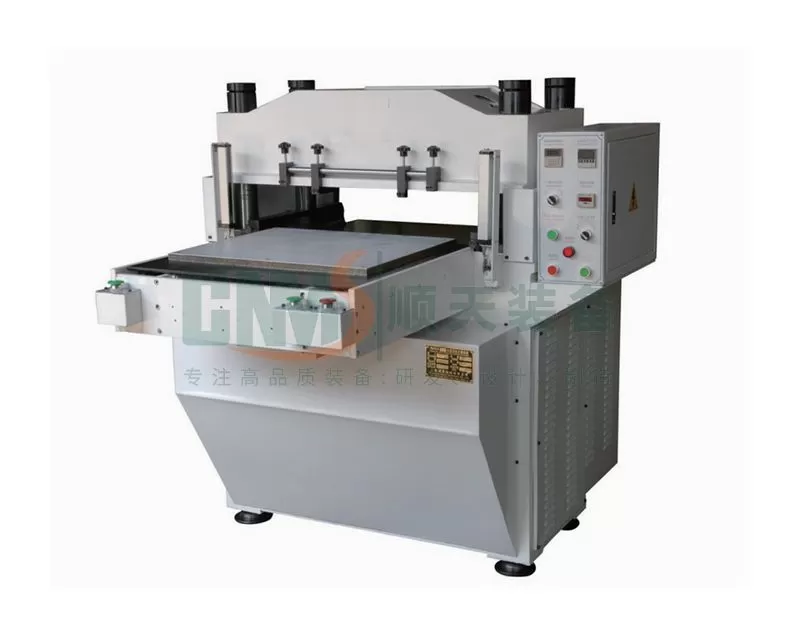

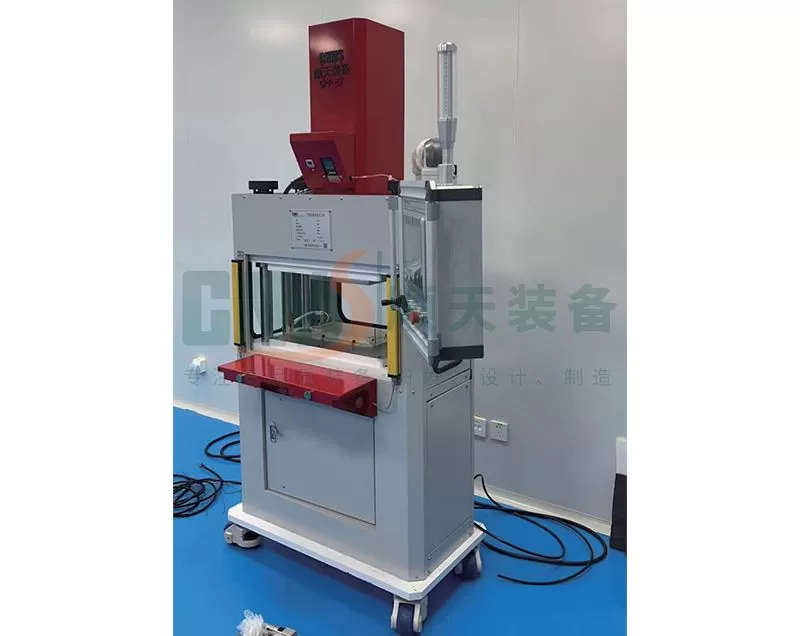

Suitable for die-cutting and CNC batch cutting of various films, it can effectively ensure the cutting efficiency of materials.
●The knife mold system adopts a metal knife mold to achieve cutting of 3CCM, frame, GDL, and 7CCM.
●The servo cutting system can freely set the cutting position and pressure according to different materials.
●The conveying system transports the cutting die system into the interior of the equipment to complete cutting.
●The information management system can achieve the transmission and automatic saving of process data such as cutting position, cutting force, and production capacity, compatible with MES system, and supports one click backup.
Advantages and Features
Advantages and Features

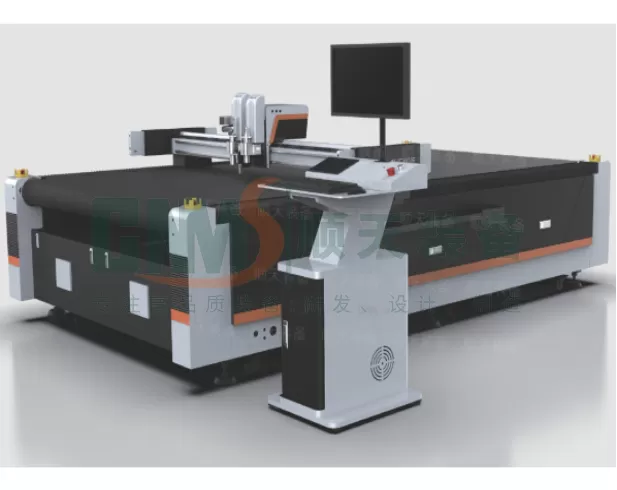

This equipment is equipped with an advanced integrated control system that combines operational interaction, intelligent planning, real-time monitoring, and safety protection to comprehensively ensure intelligent, precise, and reliable production processes.
1. Intelligent Control Core
●REALTOP LCD Touch Control System: Features a high-sensitivity industrial-grade touchscreen with an intuitive interface, supporting rapid parameter setting and process control.
●Intelligent Material Calculation and Automatic Layout: Built-in computer-aided intelligent nesting module automatically optimizes layout schemes, significantly improving material utilization and reducing waste.
●Full-Process Cutting Task Management: Supports viewing of task queues, progress monitoring, and historical task backtracking, enabling orderly management and traceability of production tasks.
2. Real-Time Monitoring and Diagnostics
●Intelligent Fault Detection and Early Warning: The system automatically performs an electrical self-check upon startup, instantly generating and pushing diagnostic codes to the system interface upon detecting faults.
●Real-Time Visual Monitoring of Cutting Position: Tracks and displays the position of cut pieces in real time during processing, ensuring full visibility and control of the machining process.
●Red Light Cutting Path Preview: Projects a red light contour onto the material surface to pre-verify the layout and material boundaries before processing, effectively preventing cutting errors and over-travel operations.
3. Remote Support and Data Interaction
●Optional Networked Remote Diagnostics: Network connectivity can be enabled based on customer requirements to facilitate remote troubleshooting and program maintenance, significantly reducing downtime.
●Flexible Data Interfaces and Formats: Standard interfaces include Ethernet ports and USB ports, with optional wireless transmission. Supports universal graphic data formats such as DXF and HPGL for seamless integration with various design software and production systems.
4. Safety and Process Assurance
●Multi-Layer Safety Protection Mechanisms: Integrates infrared light curtain protection, collision avoidance protection, and emergency stop functions to ensure the safety of personnel and equipment.
●Multi-Zone Intelligent Vacuum Platform: The worktable supports independent control of multiple zones, with adjustable vacuum force and activation areas. A frequency-controlled air pump is used to achieve energy efficiency and stable material holding.

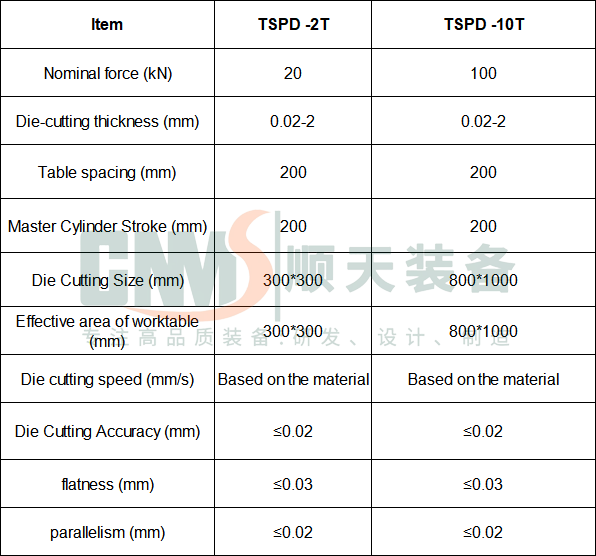

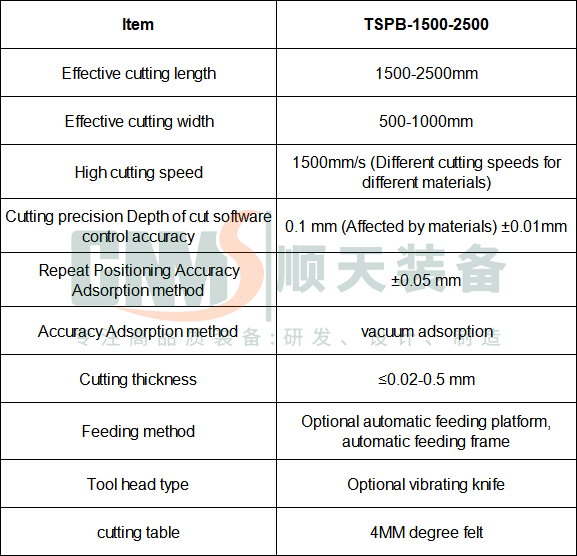

Project Parameters
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
