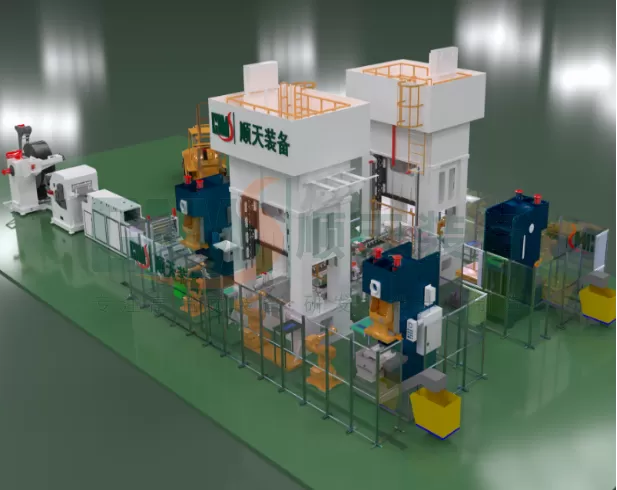

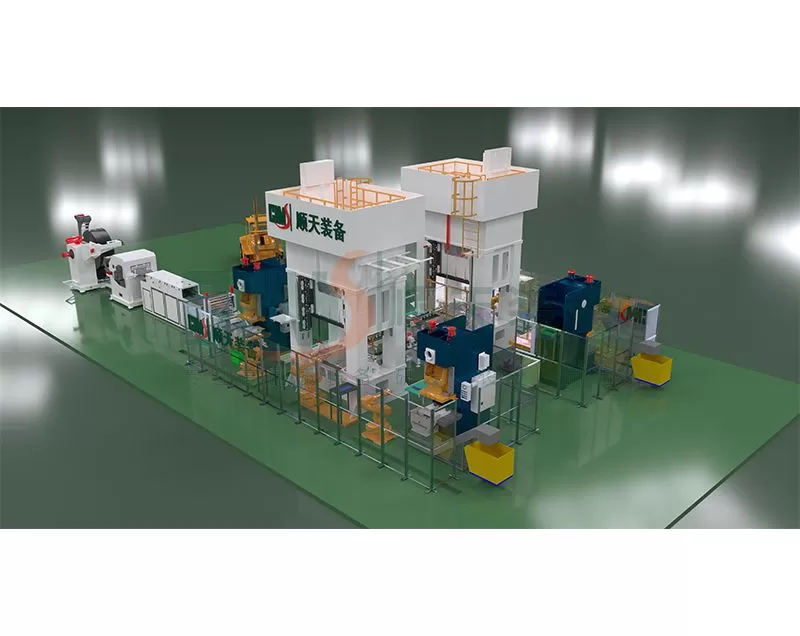

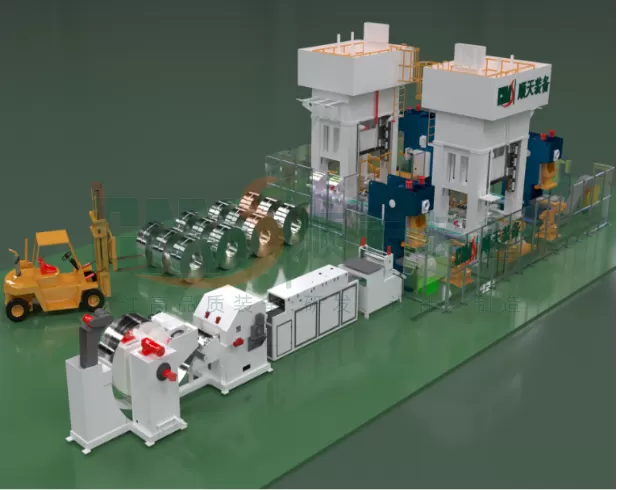

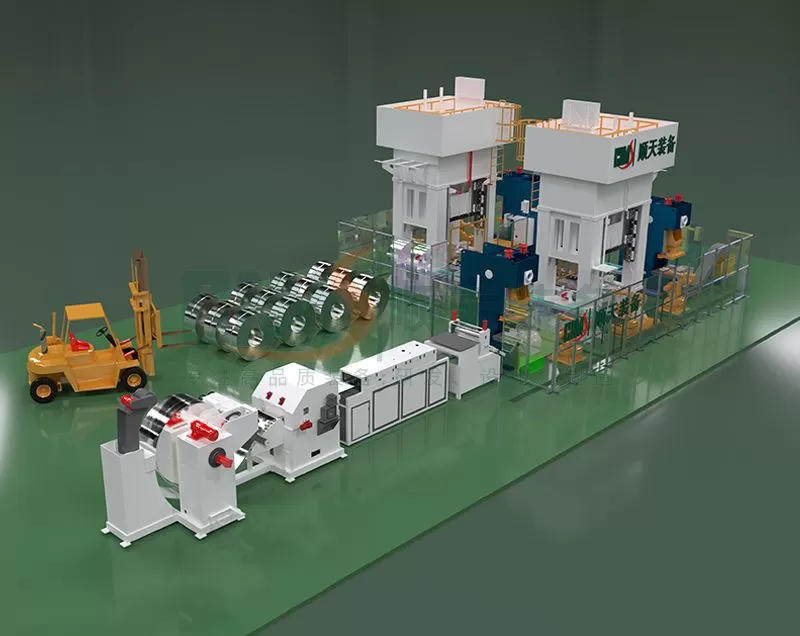

This metal bipolar plate forming production line is specifically designed for the efficient and precise mass production of fuel cell metal bipolar plates. It integrates a complete set of processes including uncoiling, leveling, feeding, forming, and cleaning, enabling fully automated and continuous production from coil material to finished products.
Equipped with a high-rigidity frame and a precise servo-hydraulic system, it ensures the parallelism of slide movement and dynamic stability, significantly enhancing product dimensional accuracy and consistency while improving production efficiency. This meets the fuel cell industry's demand for high-volume, high-quality bipolar plate manufacturing.
PRODUCT DESCRIPTION
Core Components and Process Advantages
● Integrated Coil Processing System: Combines uncoiling, leveling, and automatic feeding to ensure flatness and precise positioning of the sheet material, providing a stable foundation for subsequent forming.
● High-Precision Servo-Hydraulic Forming Unit: Utilizes closed-loop servo control for precise adjustment of pressure, speed, and position. Combined with a high-rigidity frame and precision guiding structure, it ensures stability during the stamping process, achieving a forming accuracy of up to ±0.03mm.

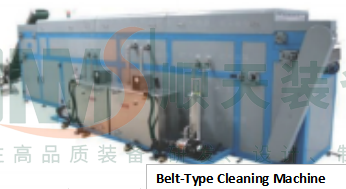

● In-line Cleaning and Auxiliary System: Equipped with a strip cleaning machine to clean the strip material before and after forming, reducing surface contamination. Integrated with a precision progressive die, it enables multi-station continuous stamping, significantly improving production efficiency and product consistency.
● Fully Controllable and Traceable Process: The production line supports digital setting and monitoring of process parameters, with key data recorded for traceability, providing a reliable basis for process optimization and quality control.

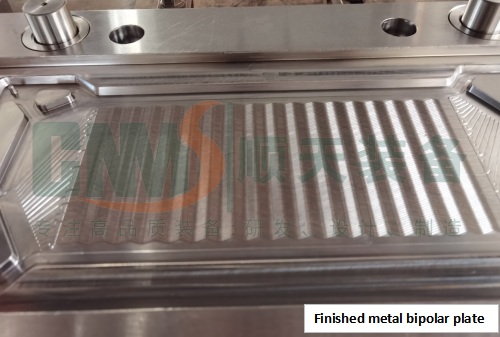

This metal bipolar plate forming production line is suitable for mass production of stainless steel, titanium alloy, and other metal bipolar plates. It features high forming precision, rapid production cycle, high degree of automation, and strong process adaptability, making it an ideal solution for enhancing the production capacity and quality of fuel cell metal bipolar plates.

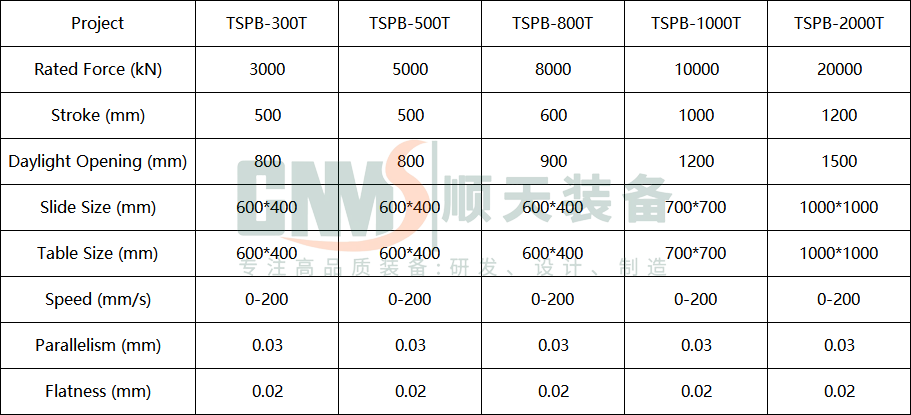

Project Parameters
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
