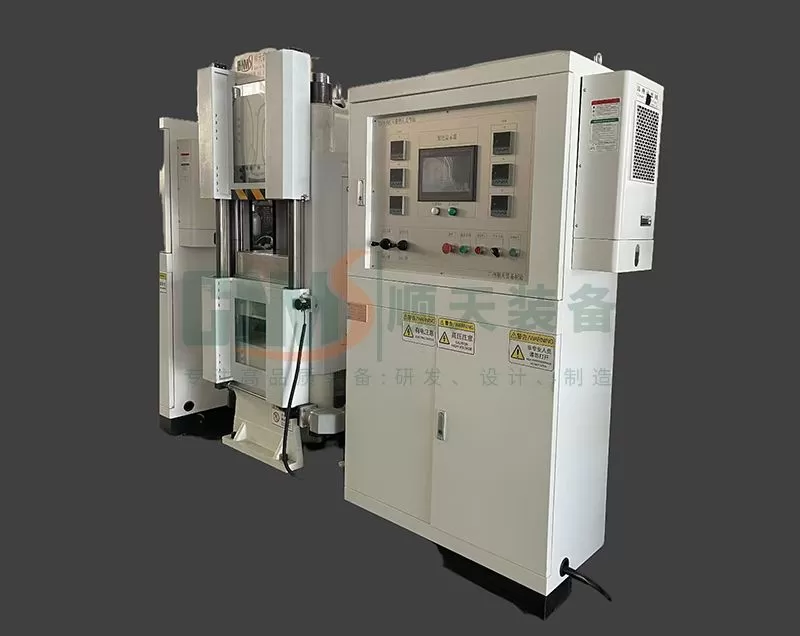

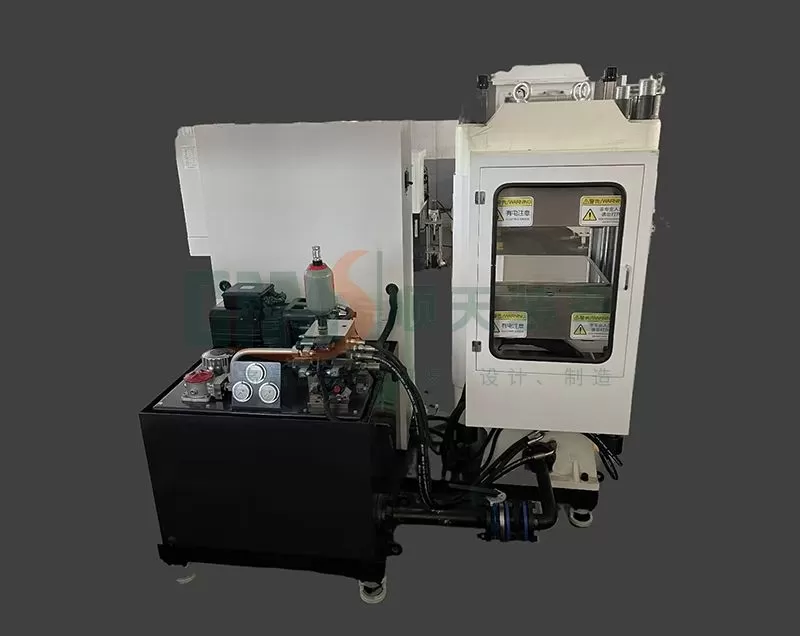

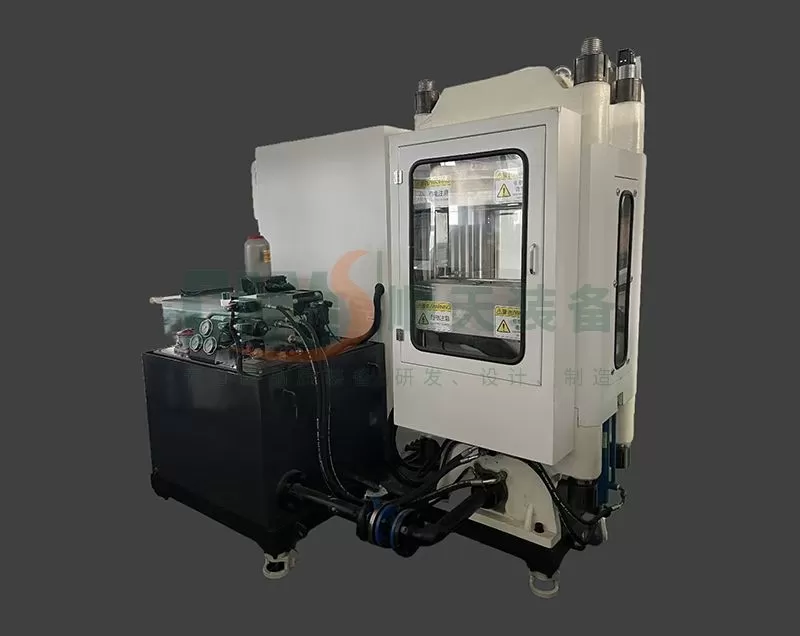

MEA Servo Hot Press Forme

Precision machining frame.

Precision parallelism ±0.02mm, flatness ±0.02mm.

section-compartmentalized heating, temperature control uniformity±0.02; control accuracy rate 1%

The accuracy of stroke control is high, and the repetitive precision is controlled in 0.1mm.

Extremely low levels of noise and vibration.

Hydraulic system equipped with fault monitoring device.

PLC control system with digital display.

High operating temperature.

Inquire Now + Next Product

PRODUCT DESCRIPTION

We have over 30 years experiences on research and design the technique of hydraulic hot forming press, optimize the manufacture technology about the production of hot-press forming. These hot-press forming machinery have high precision machining frame, high quality; small deformation is small and stable performance.

Our hot forming press can use to produce fuel cell MEA composite material and metal which is suitable for a wide range of production. The hot forming press can mold the machine parts in smaller tonnage. This type of hot forming press generally considered more efficient and better at forming complex parts.

The hot forming press has a very superlative control system that provides the operator with complete control, easy use and accurate performance. It can also use to correct cold-formed parts. With our expertise in this field, we can provide advise for our customers to use the auxiliary equipment of our hot forming press to improve performance, speed and efficiency.

The hot forming press use high temperatures to help form the workpiece so that require less capacity to form the product. Typical tonnage of this machines is between 200-500T, also customer specification are available for larger equipment upon request.

Product parameters:

No.	Items		Unit	Data
1	Nominal Force		KN	500	1000	2000	3000
2	Rated maximum working pressure		MPa	20
3	Distance between the worktable where top and below		mm	300
4	Maximum stroke of the main electric cylinders		mm	300
5	Effective size of worktable	Width	mm	500	500	1000	1300
		Length	mm	500	500	1000	800
6	Worktable stroke speed	Quick up	mm/s	1-60
		Slow up	mm/s	0.01-3
		Slow down	mm/s	1-30
		Quick down	mm/s	1-60
7	Parallelism of top and below worktable		mm	±0.02
8	flatness of work table		mm	±0.02
9	Pressure Precision Control		MPa	±1%
10	Maximum operating temperature of hot plate		ºC	250
11	Heating rate (controllable)		ºC/min	1-6
12	Parametric formulation	Pressure stair	pcs	9
13	Parametric formulation	Temperature stair	pcs	9
14	Parametric formulation	Time stair	pcs	9
15	Control precision of display temperature		ºC	±0.5
16	Hot plate plane temperature error		ºC	±2
17	pressure maintaining		MPa	≤1/2
18	Power of Motor		KW	≤3
19	Heating power		KW	20	30	35	40
20	Height between Down hot plate worktable and ground		mm	≤750	1000
21	Equipment weight		KG	<=2000	3000	80000	12000
