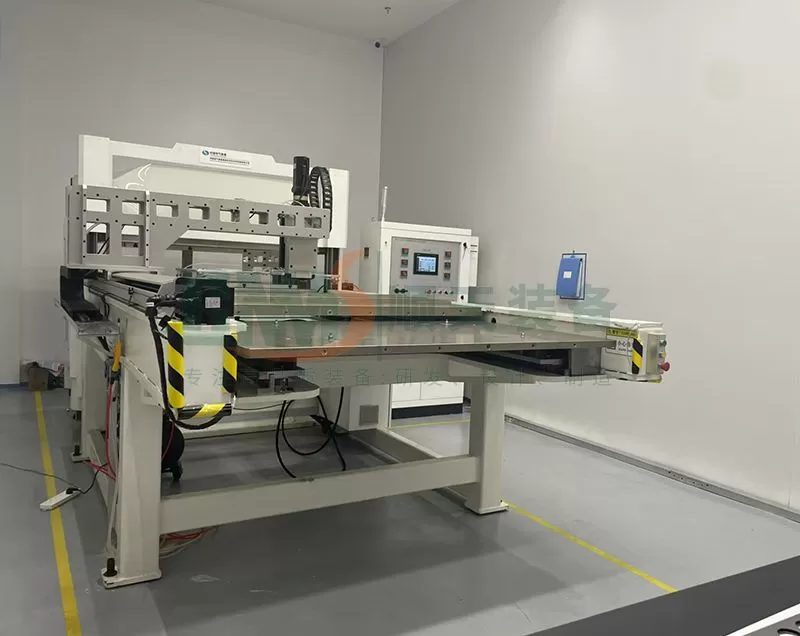

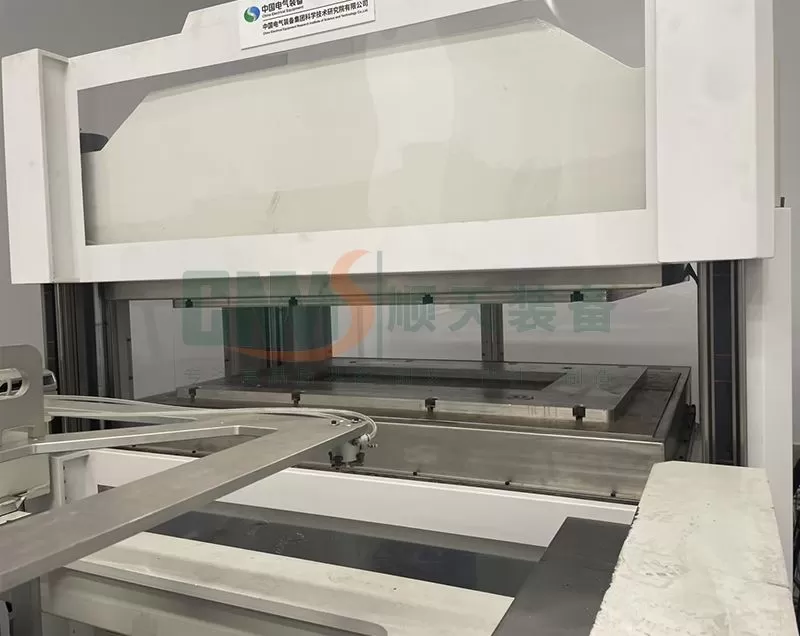

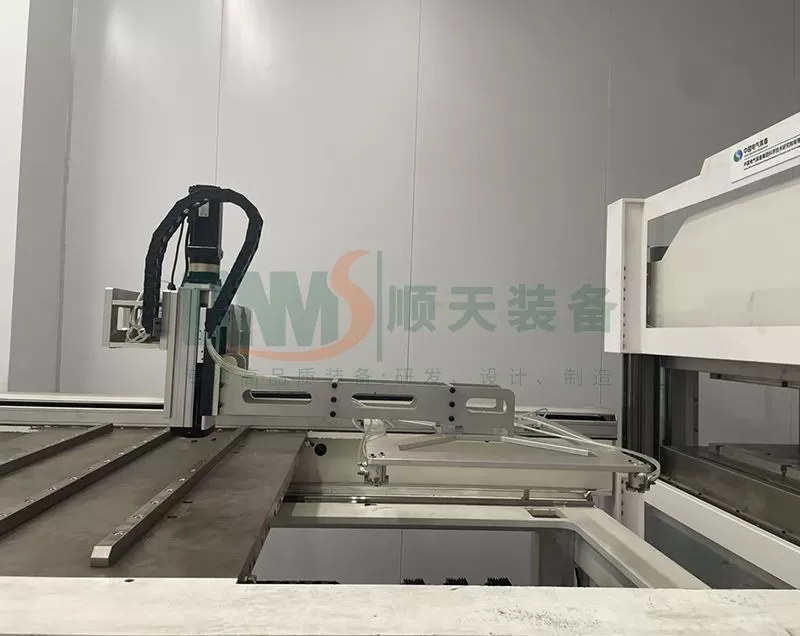

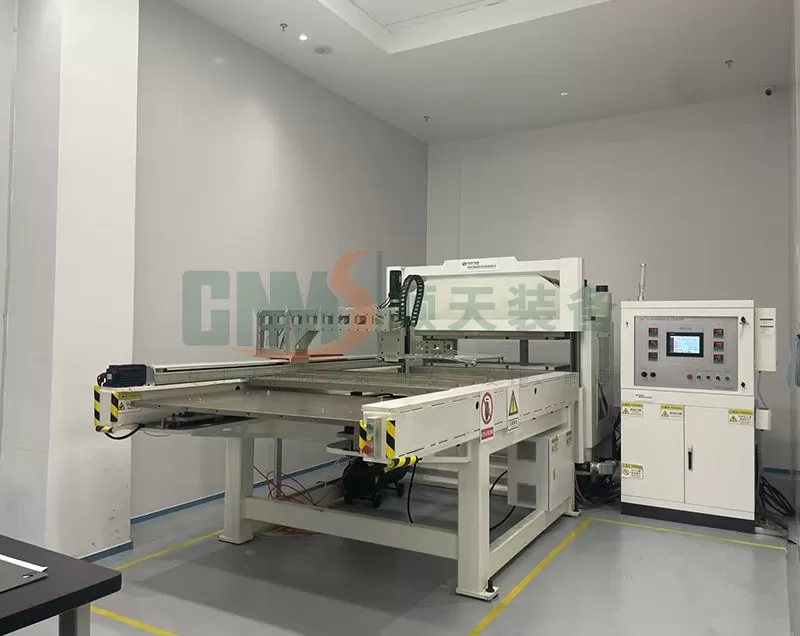

MEA Servo Hot And Cold Press Former

This product is suitable for the hot pressing and cold molding process of CCM membrane electrode, MEA membrane electrode, DGR gas diffusion layer, CCS aerogel, automotive film, bipolar plate of liquid flow battery, and composite materials.

Inquire Now + Next Product

PRODUCT DESCRIPTION

Adopting servo system control, stable pressure, high efficiency, high yield, high yield, flexible pressurization, with constant pressure and stroke function,

The constant pressure adopts torque pressure sensors for real-time monitoring of actual pressure, slow multi-stage pressurization, multi-stage heating, and has the characteristics of multi-stage pressure and multi-stage stroke, which is particularly suitable for scenarios that require adjusting the process at any time. The multi-stage pressure and stroke can be freely set according to the product process requirements, and the number and sequence of stroke and pressure segments can be adjusted at any time.

Item	TSPA -30T	TSPA -50T	TSPA -100T	TSPA -150T	TSPA -200T	TSPA -300T	TSPA -500T	TSPA -1000T
Mold closing force kN	300	500	1000	1500	2000	3000	5000	10000
Hot Plate Spacing mm	300	300	300	300	400	400	400	500
Master Cylinder Stroke mm	300	300	300	300	400	400	400	500
Hot Plate Area mm	300300 500500	300* 300 500*500	400400 500400	400* 400 500*500	500500 600600	600600 700700	800800 900900	10001000 12001200
Hot Plate Tem °C	100–500	100–500	100–500	100–500	100–500	100–500	100–500	100–500
Parallelism mm	0.03	0.03	0.03	0.04	0.04	0.04	0.04	0.05
Flatness mm	0.02	0.02	0.02	0.02	0.02	0.02	0.02	0.02
Cold press tonnage kN	1–10	1–10	1–10	1–10	1–10	1–10	1–10	1–10
Cold press area mm	<240 <450	<240 <450	<340 <450	<340 <450	<440 <550	<540 <650	<740 <850	<940 <1050
