The servo system achieves a pressure control accuracy of ± 0.5% FS and a displacement accuracy of ± 0.02mm, specially designed for membrane electrode and bipolar plate airtight detection, which can quickly detect small leaks. It has pressure/position mode and manual, semi-automatic and other working modes, and can record pressure parameters and pressure curves for easy traceability. It is matched with a three beam four column structure to ensure stable operation, easy operation and maintenance, and has a fast vacuum function to improve efficiency. It is widely used in fields such as hydrogen fuel cells and new energy vehicles, meeting the strict testing requirements for product sealing performance in large-scale production.

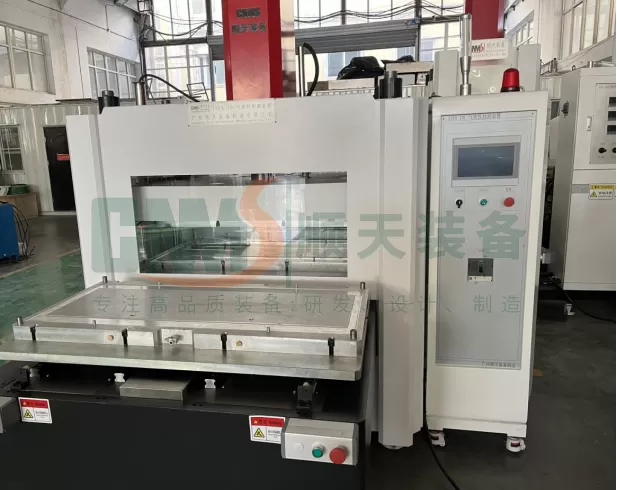

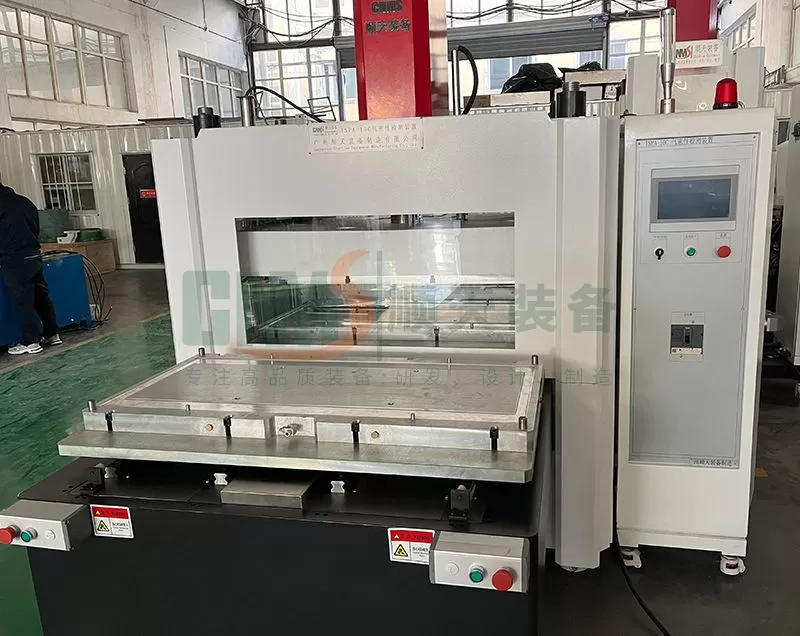

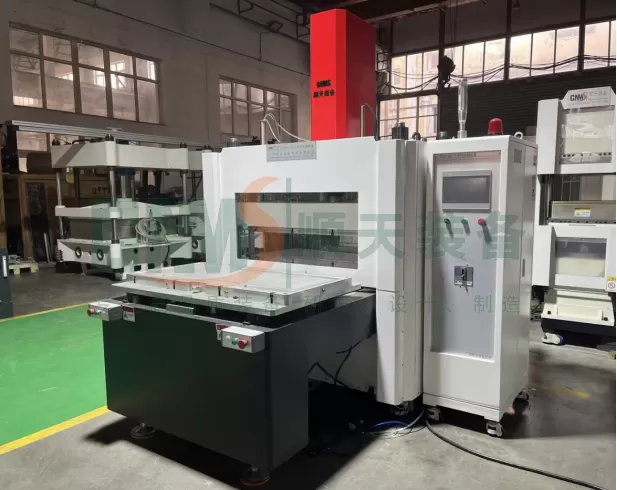

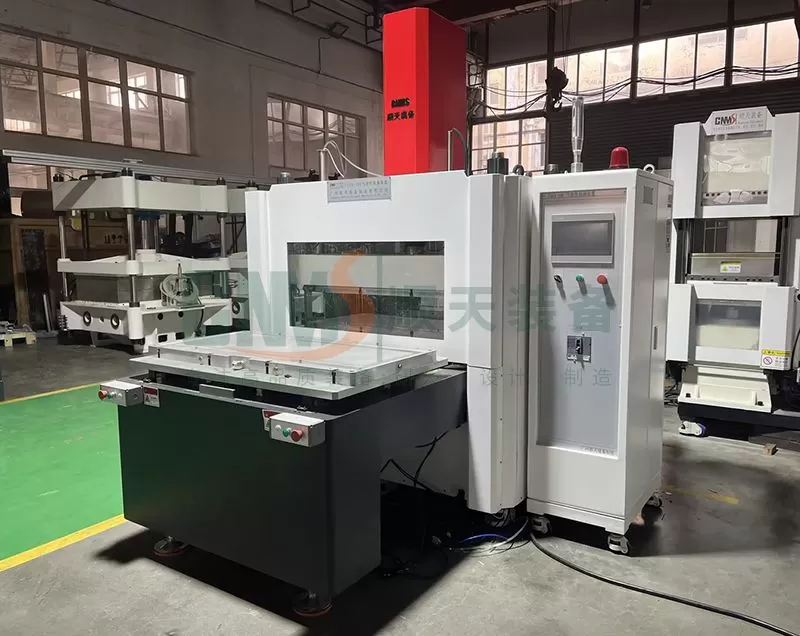

PRODUCT DESCRIPTION
The servo system achieves a pressure control accuracy of ± 0.5% FS and a displacement accuracy of ± 0.02mm, specially designed for membrane electrode and bipolar plate airtight detection, which can quickly detect small leaks.
Advantages and Features:
1. The feeding system takes out products one by one from the material frame and recycles the compartments.
2. Scan the QR code system, identify the QR code, and remove abnormal products such as defective/mixed materials.
3. The detection system comes standard with pressure gauges and flow meters to check the airtightness of the product. Single/multi piece detection can be selected.
4. The unloading system stacks qualified products in the material frame and separates unqualified products.
5. The information management system can achieve the transmission and automatic saving of process data such as recording QR code information, detecting pressure, leakage, and production capacity. It is compatible with MES system and CIM system data communication and supports one click backup.

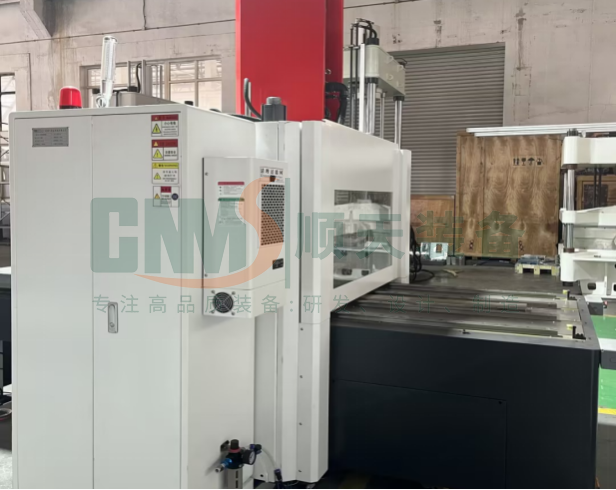

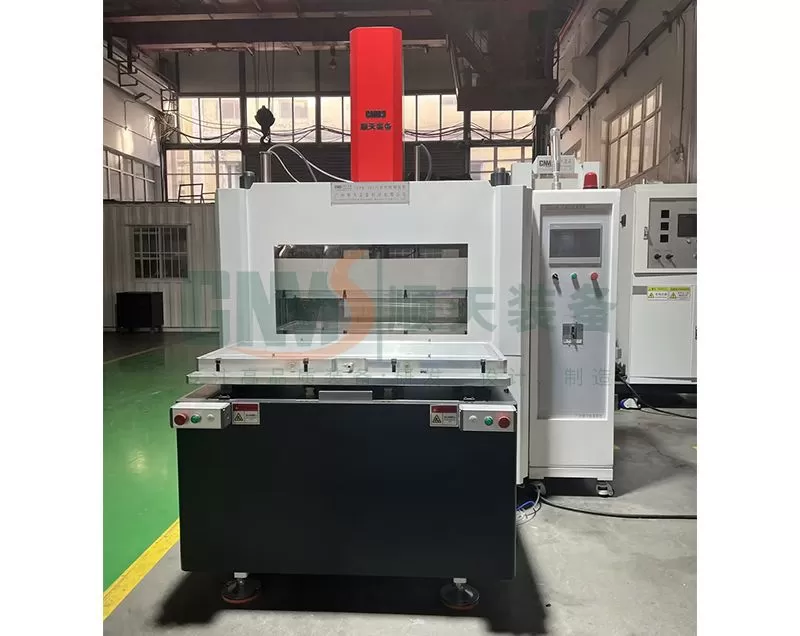

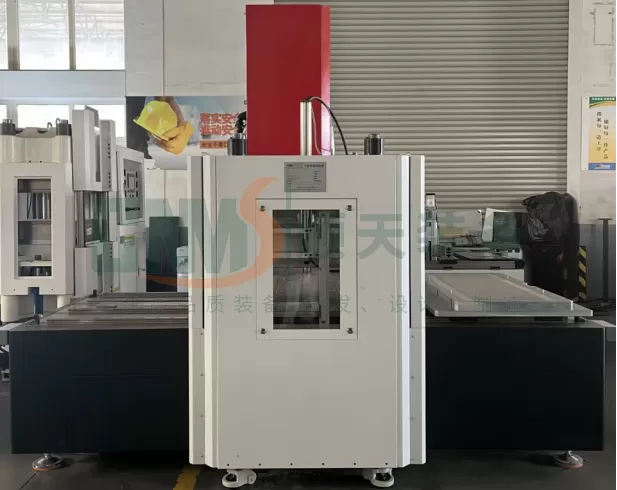

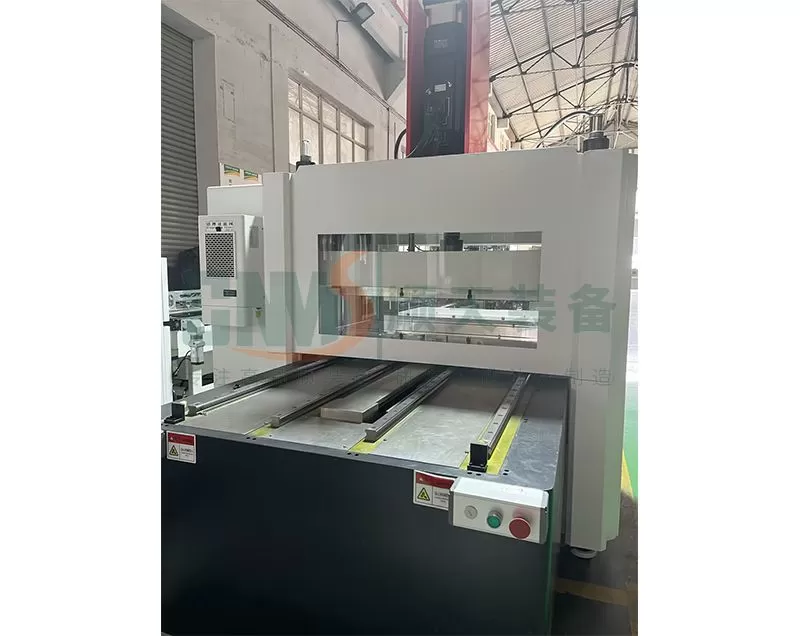

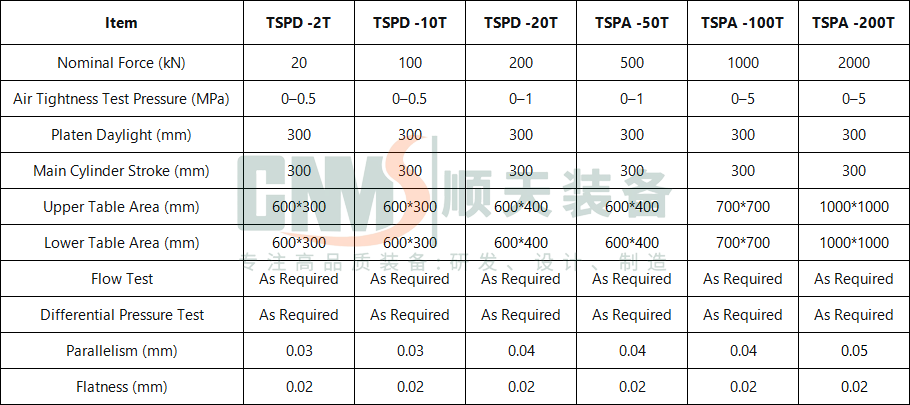

Project Parameters
| Item | TSPD -2T | TSPD -10T | TSPD -20T | TSPA -50T | TSPA -100T | TSPA -200T |
| Nominal force (kN) | 20 | 100 | 200 | 500 | 1000 | 2000 |
| Airtightness test pressure (MPa) | 0–0.5 | 0–0.5 | 0–1 | 0–1 | 0–5 | 0–5 |
| Table spacing (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Master Cylinder Stroke (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Upper bench area (mm) | 600*300 | 600*300 | 600*400 | 600*400 | 700*700 | 1000*1000 |
| Lower bench area (mm) | 600*300 | 600*300 | 600*400 | 600*400 | 700*700 | 1000*1000 |
| Differential Pressure | As Required | As Required | As Required | As Required | As Required | As Required |
| Detection Pressure | As Required | As Required | As Required | As Required | As Required | As Required |
| Parallelism (mm) | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.05 |
| Flatness (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
