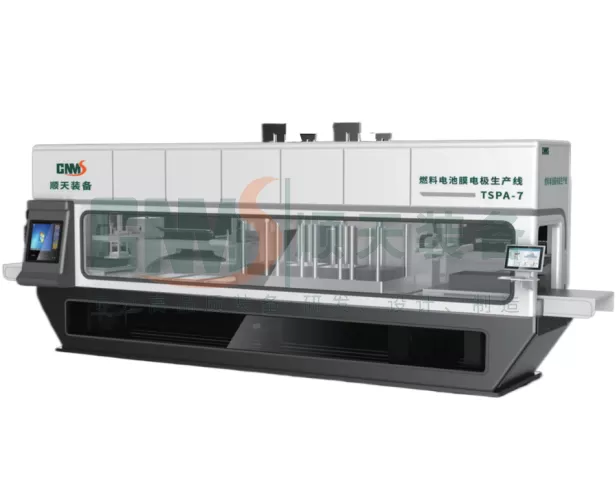

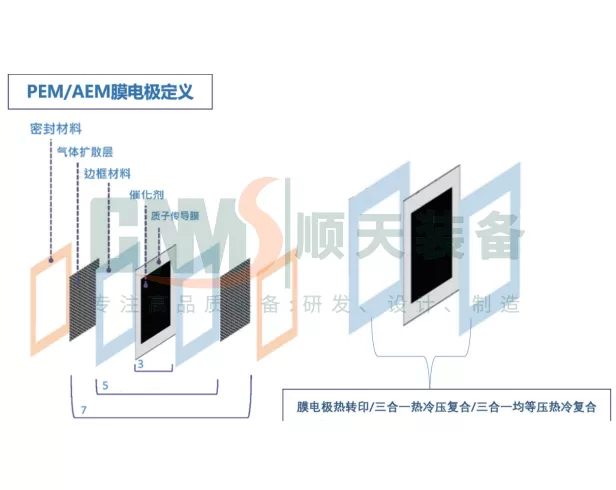

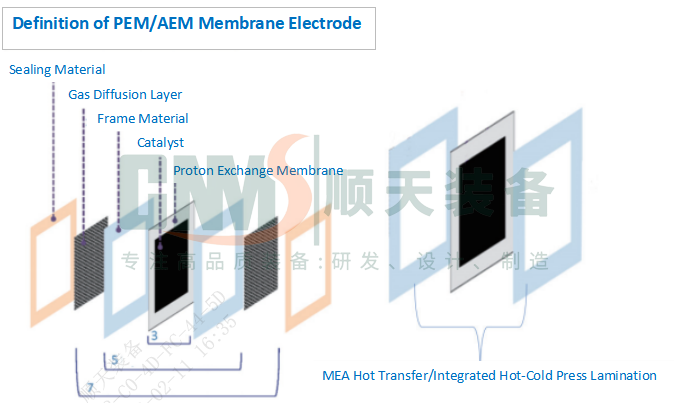

The membrane electrode 7-in-1 production line is a highly integrated automated production line specifically designed for the "7-in-1" CCM components of fuel cells. It covers the entire process from raw material cutting to finished product packaging and testing, with particular proficiency in handling the precise lamination assembly of "3+2+2" or similar structural configurations.
PRODUCT DESCRIPTION
The entire production process follows the logical chain of "Material Preparation → Precision Assembly → Curing & Forming → Final Processing":
1. Front-End Preprocessing
●Material Cutting & Recycling System: Supplies standardized, precisely cut raw materials (3CCM, frames, GDL) to the production line and automatically handles waste, forming the foundation for efficient and clean production.
●Visual Positioning, Robot Guidance & Automatic Feeding System: Serves as the "eyes" and "hands" of the production line, addressing the challenges of automatic, non-destructive, and precise feeding and alignment of flexible precision materials, which is crucial for ensuring subsequent assembly accuracy.
2. Core Lamination Assembly
●5-in-1 Bonding & Pre-Pressing System: Executes the first-layer core lamination (frame + 3CCM + frame), achieving the precise construction and preliminary fixation of the basic structure.
●Precision Dispensing System: Provides customized adhesive paths for each layer of material, serving as a key step to ensure strong, reliable bonding without affecting the reaction area.
3. Pressing, Forming & Precision Machining
●7-in-1 Pressing & Forming System: Performs final pressing on the assembled "7CCM" component to ensure tight contact between layers, uniform thickness, and preliminary shaping of the outer form.
●Precision Cutting & Machining System: Conducts high-precision micro-machining (e.g., flow channel grooves, holes) on the pressed component to form the final functional structure.
4. Terminal Packaging & Quality Inspection
7-in-1 Packaging & Testing System: Completes the outermost GDL packaging and final shape trimming. It integrates online testing (which may include thickness, resistance, airtightness, etc.), achieving "production as inspection" to ensure outgoing quality.

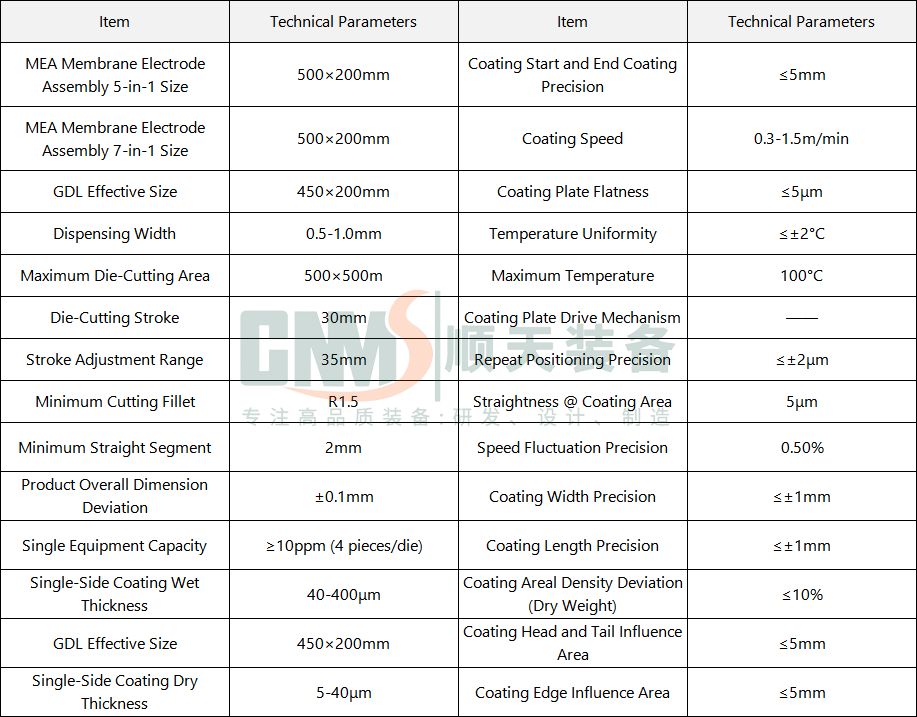

Project Parameters
| Item | Technical Parameters | Item | Technical Parameters |
| MEA Membrane Electrode Assembly 5-in-1 Size | 500×200mm | Coating Start and End Coating Precision | ≤5mm |
| MEA Membrane Electrode Assembly 7-in-1 Size | 500×200mm | Coating Speed | 0.3-1.5m/min |
| GDL Effective Size | 450×200mm | Coating Plate Flatness | ≤5μm |
| Dispensing Width | 0.5-1.0mm | Temperature Uniformity | ≤±2°C |
| Maximum Die-Cutting Area | 500×500m | Maximum Temperature | 100°C |
| Die-Cutting Stroke | 30mm | Coating Plate Drive Mechanism | —— |
| Stroke Adjustment Range | 35mm | Repeat Positioning Precision | ≤±2μm |
| Minimum Cutting Fillet | R1.5 | Straightness @ Coating Area | 5μm |
| Minimum Straight Segment | 2mm | Speed Fluctuation Precision | 0.50% |
| Product Overall Dimension Deviation | ±0.1mm | Coating Width Precision | ≤±1mm |
| Single Equipment Capacity | ≥10ppm (4 pieces/die) | Coating Length Precision | ≤±1mm |
| Single-Side Coating Wet Thickness | 40-400μm | Coating Areal Density Deviation (Dry Weight) | ≤10% |
| GDL Effective Size | 450×200mm | Coating Head and Tail Influence Area | ≤5mm |
| Single-Side Coating Dry Thickness | 5-40μm | Coating Edge Influence Area | ≤5mm |
