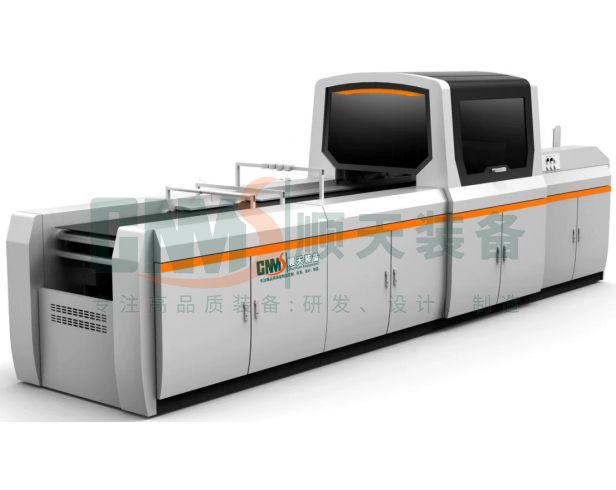

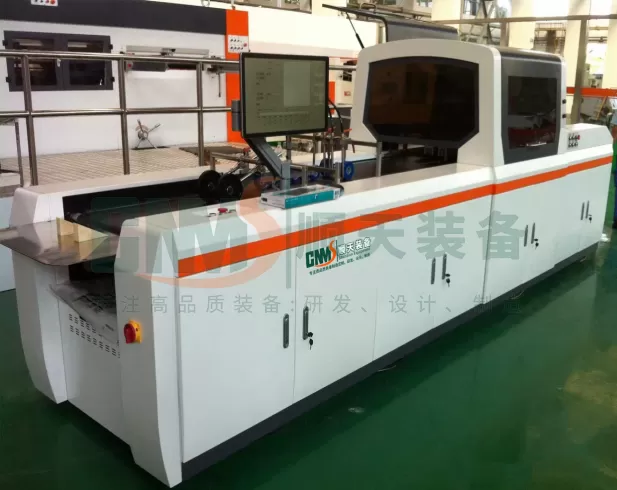

This production line represents a cutting-edge piece of equipment integrating automation, high precision, and intelligent capabilities, specifically designed for manufacturing the core component of hydrogen fuel cells—the membrane electrode assembly (MEA). Through a precise hot-press lamination process, it accurately and firmly bonds the catalyst-coated membrane with the anode and cathode gas diffusion layers into a single unit. This process is the key enabler for achieving large-scale, high-performance, and cost-effective MEA manufacturing.
PRODUCT DESCRIPTION
Core Advantages and Features
●Precision Pressure Control: Utilizes an advanced servo system paired with torque pressure sensors to enable real-time pressure monitoring and closed-loop control.Supports flexible pressurization and slow multi-stage pressurization modes, ensuring stable pressure to effectively enhance production yield and quality rates.
●Superior Temperature Control System: Features multi-stage heating functionality to guarantee uniform temperature distribution across the working area, with overall temperature variation controlled within ±1℃, meeting stringent process requirements.
●High Rigidity and Stability: The mainframe utilizes premium cast components, delivering exceptional rigidity and stability to guarantee long-term precision from the foundation.
●Flexible Process Configuration: Both pressure and stroke can be freely set across multiple stages, with stage sequence adjustable at any time to perfectly adapt to complex and variable process flows.
●High-efficiency integrated process station: Integrates rapid vacuum extraction with high-precision pressure control. Pressure heat-sealing and rapid cold-setting stations can be configured in parallel, enabling swift switching and product flow to significantly boost production efficiency.

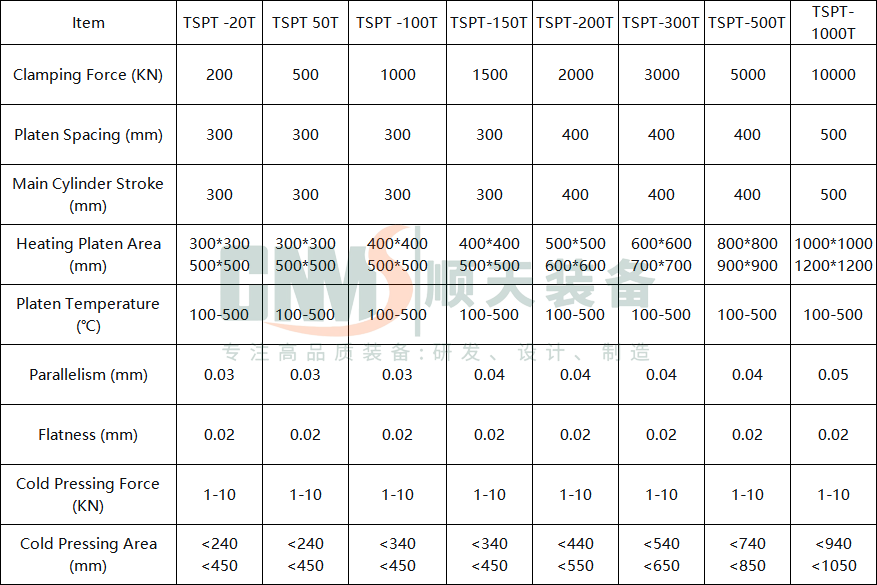

Project Parameters
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
