The thermal lamination continuous production isostatic pressure line is a core piece of process equipment for the large-scale manufacturing of hydrogen fuel cell MEAs.
Through its innovative design featuring a "liquid isostatic pressure pad + multi-zone independent temperature control," it overcomes industry challenges inherent in traditional hot-press processes, such as uneven pressure distribution, significant temperature gradients, and poor product consistency. This technology enables the high-precision, continuous lamination of key components including the proton exchange membrane, catalyst layers, and gas diffusion layers, providing essential support for the high-performance and high-reliability mass production of MEAs.
PRODUCT DESCRIPTION
Core Technical Advantages

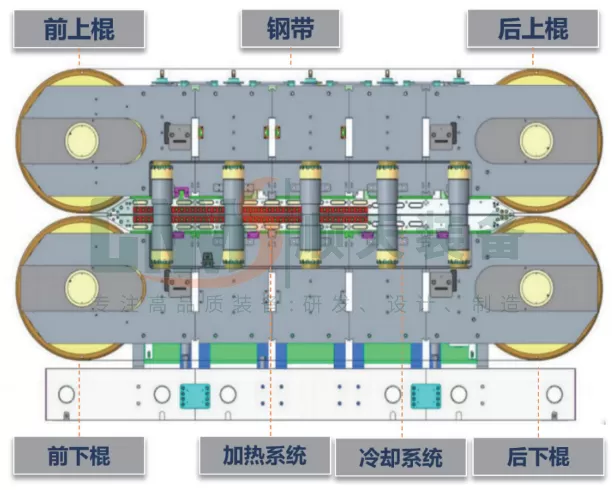

1. Liquid Isostatic Pressure Pad Technology
A liquid-filled isostatic pressure pad adaptively compensates for contact deviations between the roller and material during hot pressing. This ensures uniform linear pressure across the full width of the MEA, eliminating localized over-pressure or under-pressure issues common in rigid roller systems. The result is improved interfacial bonding strength and structural integrity between the catalyst layer and the proton exchange membrane.
2. Multi-Zone Independent Temperature Control
The hot-press zone is divided into multiple independently controlled heating sections, enabling precise temperature profiling across different lamination stages—preheating, bonding, and cooling. This allows accurate thermal management throughout the material transformation process, from softening to consolidation, significantly enhancing dimensional stability and performance consistency of the finished MEA.
3. Continuous Production Integration

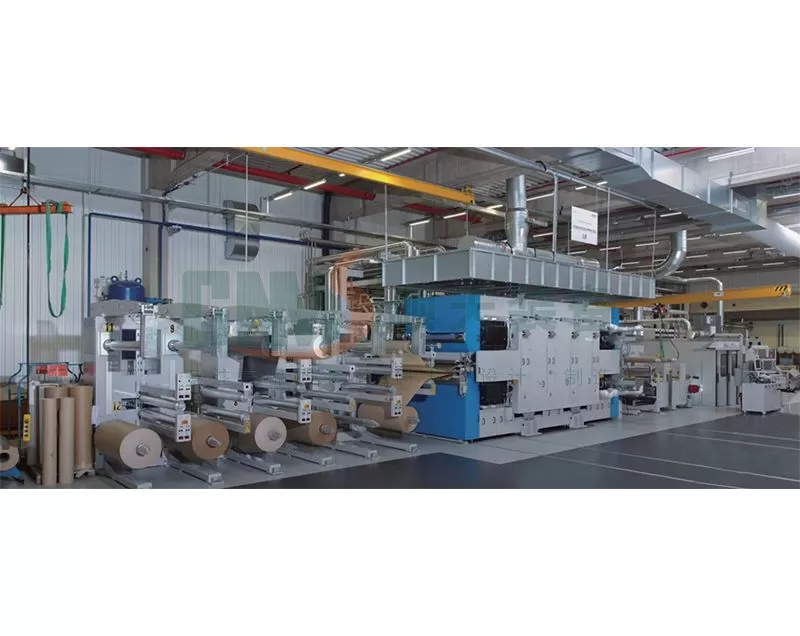

The system integrates automatic unwinding, synchronous separator film feeding, online thickness gauging, and finished product winding for uninterrupted MEA production from raw materials to final roll. Paired with high-precision tension control and edge guiding, it ensures consistent material flatness and alignment throughout the process, driving higher throughput and improved yield.
Key Applications
Designed for the large-scale production of hydrogen fuel cell membrane electrode assemblies (MEAs), it is compatible with proton exchange membranes of various thicknesses, catalyst layer slurries, and gas diffusion layer materials, meeting the full-cycle requirements from laboratory-scale trials to industrial-scale production.
Project Parameters
