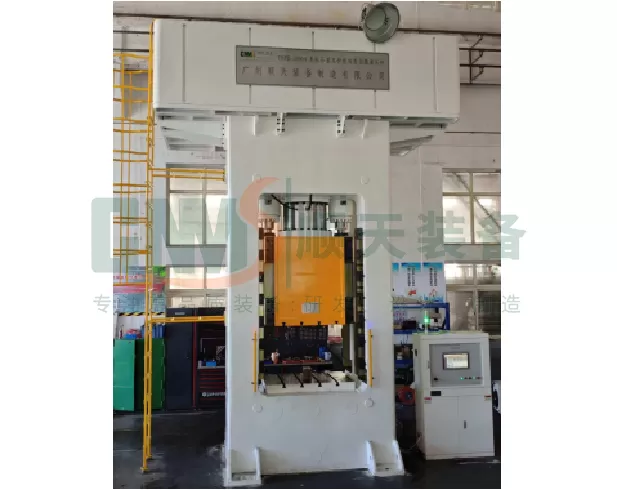

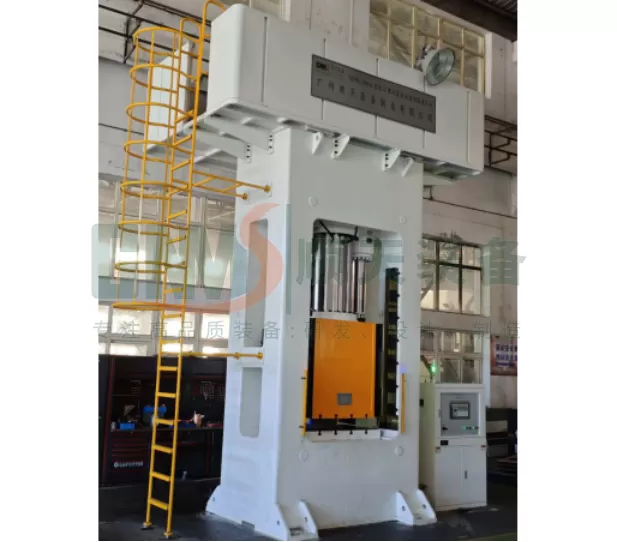

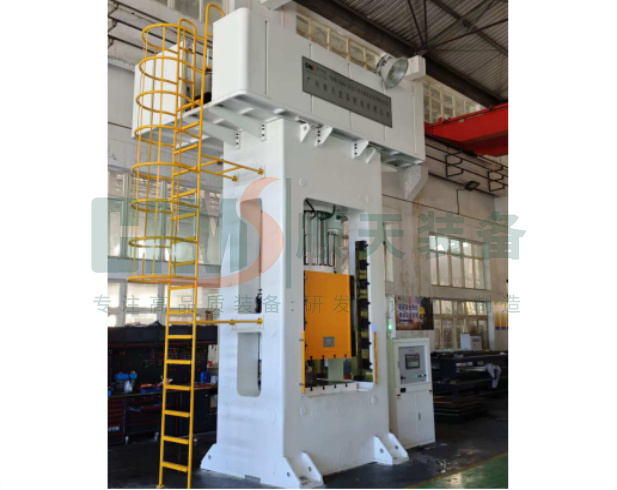

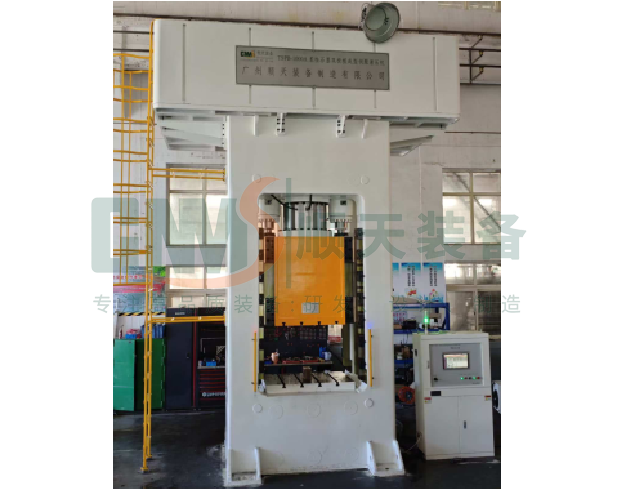

Graphite bipolar plate molding hydraulic press is a technology-intensive equipment, which integrates precision machinery, servo-hydraulic pressure and intelligent control, and its performance directly determines the quality, cost and production efficiency of bipolar plates. In today's rapid development of hydrogen fuel cell industry, having a stable, efficient and intelligent specialized press is a key link to ensure the core competitiveness of enterprises.
With high-pressure hydraulic molding technology, the equipment provides accurate control of pressure, temperature, and holding time during the forming process, ensuring stable dimensions, surface quality, and structural consistency of graphite bipolar plates.
PRODUCT DESCRIPTION
●Host frame: steel wire pre-stressed structure, strong anti-fatigue performance, load stability
●Main cylinder system: piston structure, high reliability, long working life and convenient maintenance.
●Guiding rod: equipped with automatic lubrication device to extend the life of guiding structure and reduce maintenance.
●Dynamic beam ejector: new wear-resistant plate design, high positioning accuracy and good reliability.
●Liquid charging valve: lower mounted large through-hole rodless type, fast filling/discharging speed, good quality of liquid filling, and improved pressing speed.
●Hydraulic control system: fully optimized, with proportional servo control for moving beam position/master cylinder pressure/ejector; key components are selected from the world's top brands to ensure comprehensive performance and reliability.
●Electrical system:
controller: the latest generation, faster, more stable, more powerful
software interface: new development and optimization, graphical operation interface, perfect functionality, user-friendly operation
sensor: anti-jamming digital pressure sensor, more accurate and stable pressure control

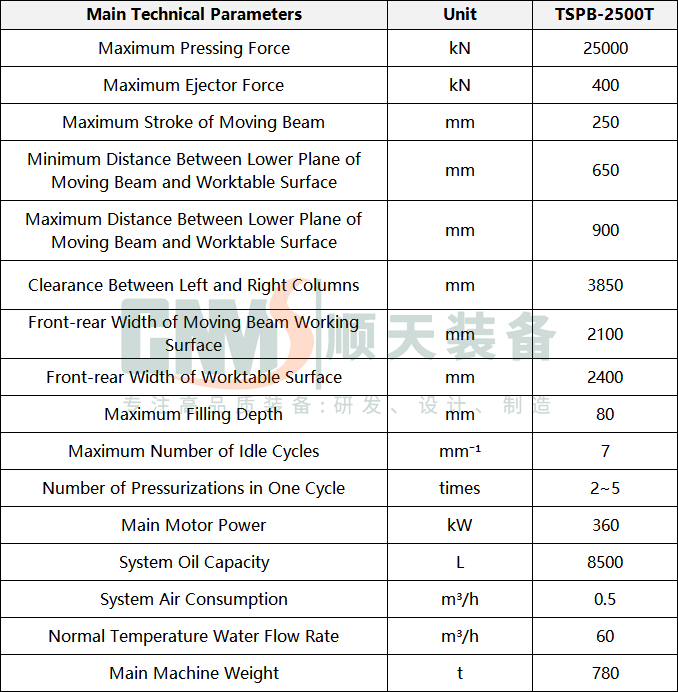

| Main Technical Parameters | Unit | TSPB-2500T |
| Maximum Pressing Force | kN | 25000 |
| Maximum Ejector Force | kN | 400 |
| Maximum Stroke of Moving Beam | mm | 250 |
| Minimum Distance Between Lower Plane of Moving Beam and Worktable Surface | mm | 650 |
| Maximum Distance Between Lower Plane of Moving Beam and Worktable Surface | mm | 900 |
| Clearance Between Left and Right Columns | mm | 3850 |
| Front-rear Width of Moving Beam Working Surface | mm | 2100 |
| Front-rear Width of Worktable Surface | mm | 2400 |
| Maximum Filling Depth | mm | 80 |
| Maximum Number of Idle Cycles | min⁻¹ | 7 |
| Number of Pressurizations in One Cycle | times | 2~5 |
| Main Motor Power | kW | 360 |
| System Oil Capacity | L | 8500 |
| System Air Consumption | m³/h | 0.5 |
| Normal Temperature Water Flow Rate | m³/h | 60 |
| Main Machine Weight | t | 780 |
Bipolar plates are critical components in PEM fuel cells. They provide:
● Electrical conductivity
● Gas flow channels
● Mechanical support
● Heat and water management
Graphite bipolar plates require precise molding conditions because the material characteristics are different from traditional metal components.
During production, manufacturers need accurate control of:
● Molding pressure
● Temperature profile
● Compression time
● Cooling process
● Plate thickness
The graphite bipolar plate hydraulic press provides a stable production environment to achieve repeatable molding results.
Shuntian provides customized fuel cell bipolar plate molding equipment according to customer production requirements.
Customization options include:
● Hydraulic press capacity
● Mold design
● Heating system
● Automation integration
● Production monitoring system
The equipment can be integrated into complete hydrogen fuel cell manufacturing solutions together with:
● MEA laminating equipment
● Stack assembly servo presses
● Testing systems
Shuntian specializes in precision equipment development for hydrogen energy and new energy manufacturing industries.
Advantages include:
● Experience in fuel cell manufacturing equipment
● Hydraulic and servo control technology
● Customized production solutions
● Precision process control
● Complete hydrogen energy equipment integration capability
The Graphite Bipolar Plate Molding Hydraulic Press provides fuel cell manufacturers with a reliable solution for producing high-quality bipolar plates with stable performance and repeatable production results.
