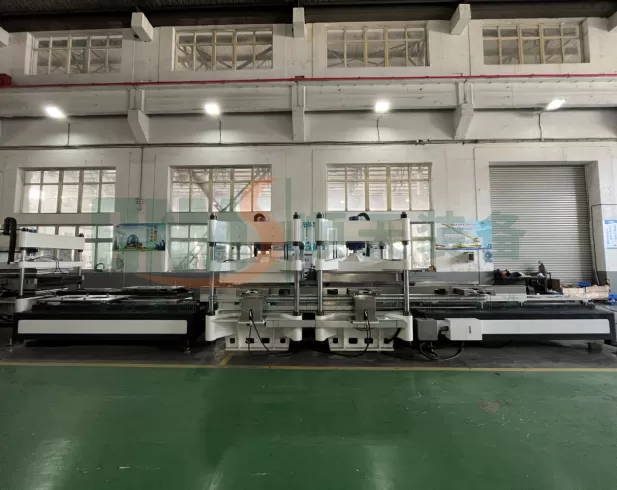

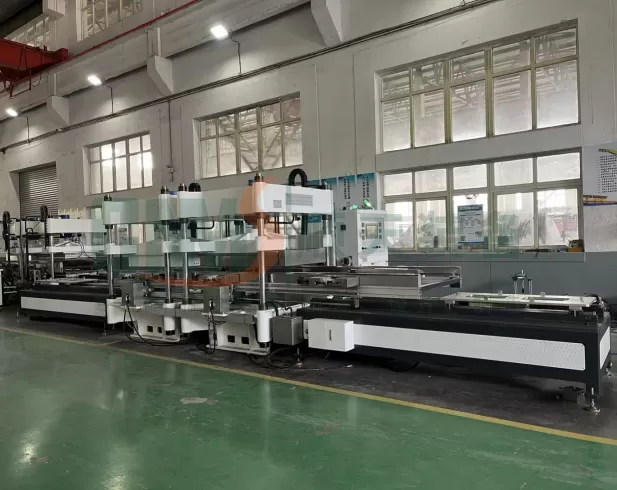

Hot and Cold Press Forming Production Line

Core Application Areas

● Fuel Cell Sector: The production line is designed for catalyst coating transfer of CCM and MEA membrane electrodes, as well as thickness-controlled forming of 5-in-1/7-in-1 components. It ensures uniform hot-press bonding between the catalyst layer and proton exchange membrane, maintaining consistent active layer thickness and interfacial bonding strength.

● Gas Diffusion Layer (GDL/Carbon Paper/Carbon Cloth) Production: The equipment precisely controls the thermal bonding process between the microporous layer and substrate, with closed-loop regulation of compression ratio and thickness tolerance—meeting stringent electrochemical and mechanical performance requirements for GDLs.

● Power Battery Thermal Management: Hot-press lamination of CCS aerogel insulation pads and edge cold-press cutting are completed in a single process. The aerogel core material fully bonds with glass fiber or polyimide encapsulation film at high temperatures, while the cold-press stage rapidly stabilizes dimensions, ensuring dimensional stability and flame-retardant properties of the insulation pads.

● Flow Battery Bipolar Plates (Graphite/Plastic Composites): Through thermal curing of conductive fillers and resin matrix, combined with cold-press shape retention, the production line consistently maintains plate warpage within ≤0.1mm/m²—significantly improving stack assembly yield rates.

● Automotive Electronics: Continuous in-line completion of multi-layer thermal lamination and rapid cooling stabilization for interior/exterior functional films (UV-resistant, anti-explosion, conductive, etc.). Achieves bubble-free, displacement-free layer bonding with optical-grade surface flatness.

● Advanced Composites: Materials such as carbon fiber prepreg and glass fiber sheets immediately enter the cold-press stage for dwell cooling after hot pressing, effectively eliminating residual stress. This significantly enhances dimensional stability and long-term service reliability of finished products.

Product Advantages

● Zero-Warpage Flatness: The cold-press stage "freezes" the hot-formed shape under pressure, achieving flatness up to ≤0.05mm/m²—meeting strict sealing requirements for precision components like membrane electrodes and bipolar plates.

● High Efficiency, Low Energy: Hot press dedicates to heating, cold press to cooling. Parallel operation cuts cycle time by 30%–50%, while recovered cold-press heat reduces overall energy consumption by over 15%.

● Precision Thickness Control: Closed-loop servo positioning and pressure regulation maintain thickness tolerance within ±0.01mm—ideal for batch production of compression-sensitive materials such as carbon paper and aerogel felt.

● Cleanliness Assurance: Dust-proof sealed design with optional hard chrome or Teflon-coated platens. Compatible with ISO Class 5 clean enclosures to meet stringent production environments for membrane electrodes and optical films.

Beyond hardware, we provide fully developed process recipe packages covering temperature curves, pressure gradients, and cooling rates. From improving CCM transfer yield and controlling bipolar plate warpage to automating aerogel lines, our end-to-end technical support ensures a seamless transition from lab validation to mass production—getting it right the first time.

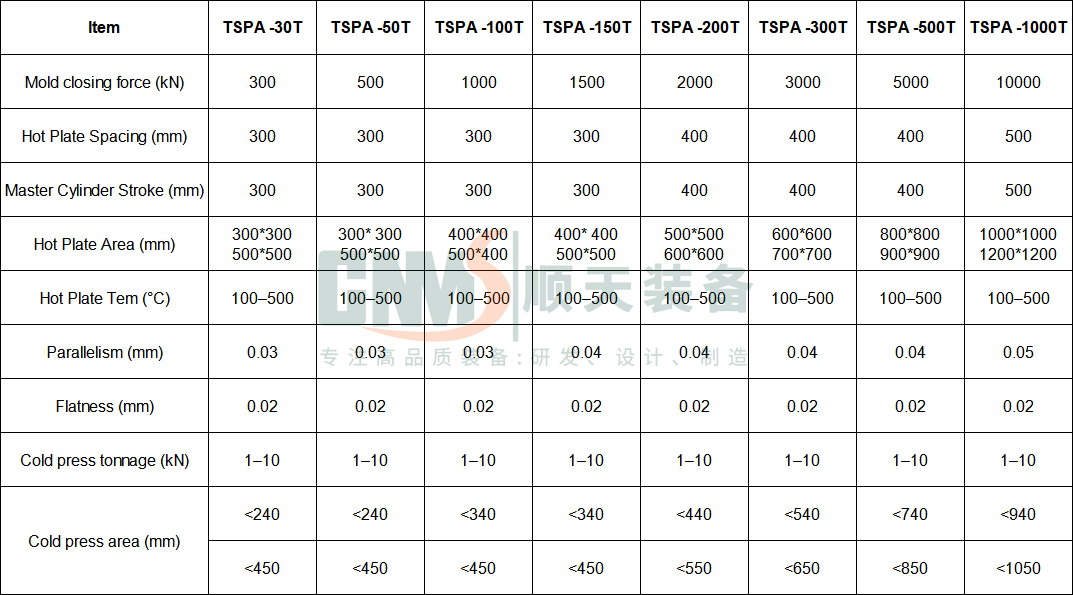

Project Parameters
