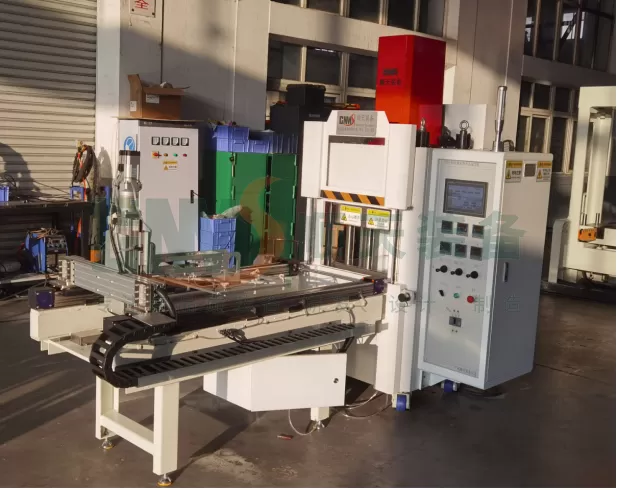

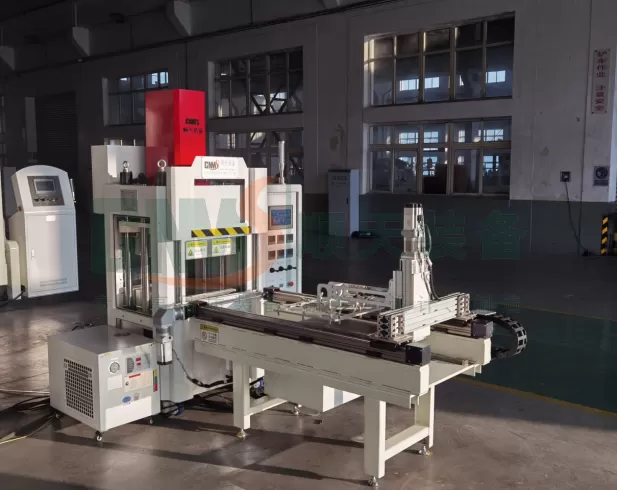

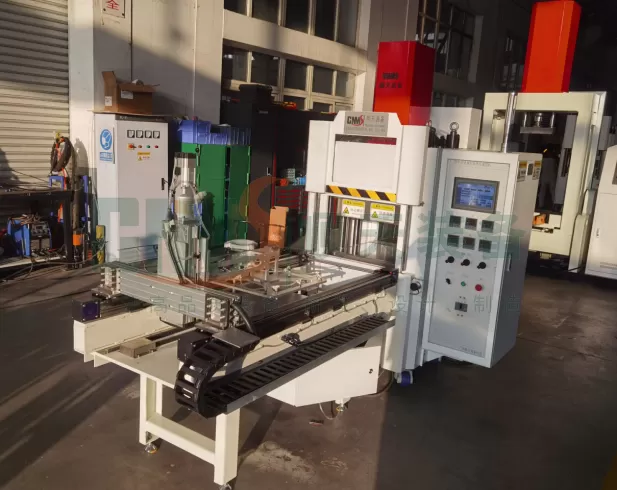

The 5T Servo Hot Press Forming Machine is a high-end forming equipment integrating high-precision servo drive, intelligent temperature control, and hydraulic technology.
Specifically designed for precision hot press molding processes with stringent requirements for temperature, pressure, and time, it delivers exceptional stability, remarkable energy efficiency, and a flexible intelligent control system. This makes it the ideal choice for achieving high-quality, high-efficiency production in industries such as composite materials, electronic components, and plastics/rubber.
PRODUCT DESCRIPTION
The 5T Servo Hot Press Forming Machine is a compact, high-precision thermal forming solution designed for laboratory testing, prototype development, small-batch production, and precision manufacturing applications. Equipped with advanced servo drive technology and intelligent temperature control systems, the machine provides accurate pressure, position, and temperature management for forming thermoplastics, composite materials, electronic components, insulation products, and laminated structures.
Compared with traditional hydraulic hot presses, servo hot press machines deliver superior accuracy, lower energy consumption, faster response times, and cleaner operation.
A 5-ton servo hot press uses electrically driven servo actuators to apply precise pressure while heated platens soften or cure materials under controlled temperature conditions. The machine combines programmable force control with accurate thermal management to achieve consistent product quality and repeatable forming results.
Core Advantages of This Compact Thermal Press Forming Machine
1. Industrial-Grade Precision, No Compromise on Size
● Parallelism ≤0.03mm, Flatness ≤0.02mm — Accepted to the same standards as 200T large-scale machines
● Pressure Control Accuracy ≤1%, utilizing high-precision torque/pressure sensors with real-time closed-loop feedback
● Temperature Control Accuracy ±0.5°C, Heating Plate Uniformity ≤2°C, Overall Temperature Deviation within ±1°C
● Multi-Stage Pressure / Multi-Stage Stroke: Segment count, sequence, and values are freely programmable, enabling flexible pressing and slow contact lamination.
This is not a "watered-down" mini machine; it is a meticulously crafted micro-industrial unit.
2. Deeply Adapted for R&D Scenarios
● 100 Process Recipe Storage: One-touch recall for pressure, temperature, speed, and position curves.
● USB Data Export: Real-time recording of actual pressure/displacement/temperature waveforms. Ideal for academic paper illustrations and quality traceability — all in one step.
● Tempered Glass Protective Windows: Multi-angle observation windows on the front and top provide a clear view of the forming process, making it an excellent tool for teaching demonstrations.
● Transparent Safety Doors (Optional): Full-field visibility, combining safety with observation.
Experimental data no longer needs to be recorded manually; process curves are ready to use directly after export, dramatically boosting R&D efficiency.
Project parameters
| Item | TSPD-5T | TSPD-10T | TSPA-50T | TSPA-100T | TSPB-200T | TSPB-300T | TSPB-500T | TSPB-1000T |
| Clamping Force (kN) | 50 | 160 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Platen Spacing (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 |
| Main Cylinder Stroke (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 |
| Platen Size (mm) | 300×300 | 300×300 | 500×500 | 600×600 | 600×600 | 800×800 | 800×800 | 1000×1000 |
| Platen Size (mm) | 500×500 | 500×500 | 600×600 | 800×800 | 800×800 | 1300×800 | 1300×800 | 1200×1200 |
| Platen Temperature (°C) | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 |
| Parallelism (mm) | 0.03 | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.04 | 0.05 |
| Flatness (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
The servo-driven mechanism provides:
Precise pressure control
Accurate stroke positioning
Adjustable pressing speed
Stable forming performance
Excellent repeatability
The 5T pressing force is ideal for:
Small precision parts
Composite samples
Electronic components
Research and development applications
Laboratory material testing
Advanced heating systems ensure:
Uniform platen temperature
Rapid heating response
Stable thermal performance
Consistent product quality
Servo motors consume power only during active movement, reducing energy consumption compared with conventional hydraulic presses.
The touchscreen interface enables operators to:
Set forming parameters
Store process recipes
Monitor production cycles
Record process data
Diagnose faults quickly
