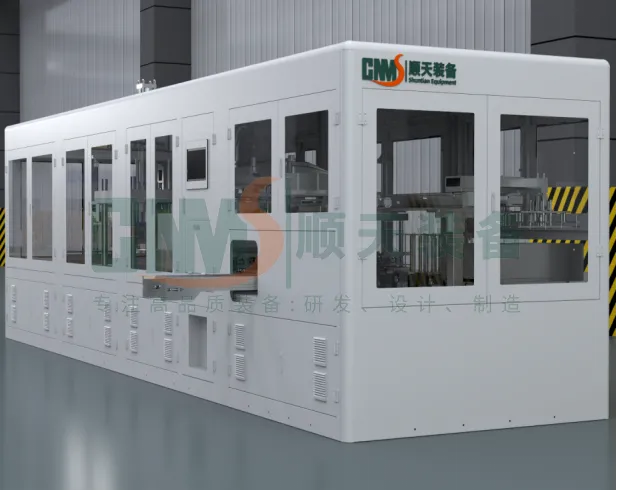

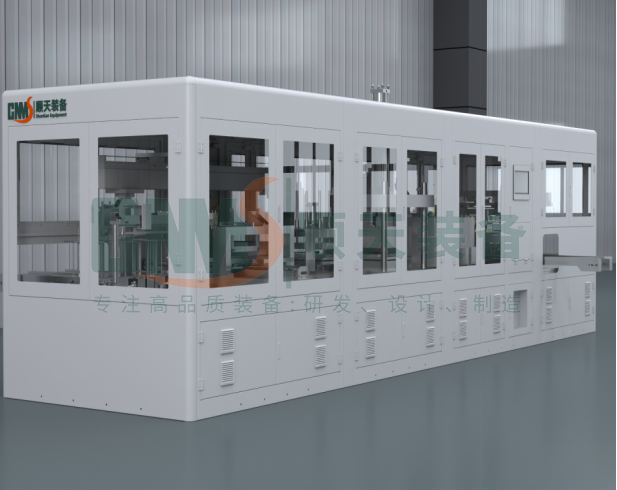

As the hydrogen energy industry moves toward large-scale and commercial application, the precision and efficiency of stack manufacturing have become critical. To address pain points in membrane electrode assembly (MEA) production—such as cumbersome encapsulation processes, significant alignment deviations, and low yield—we introduce the Fully Automatic Five-in-One MEA Encapsulation Line.
Designed specifically for PEMFC five-in-one assemblies (including CCM frames, gas diffusion layers, sealing layers, etc.), this equipment integrates a vision-guided system, precision hot pressing, and automatic unwinding/rewinding mechanisms. It completes the positioning, lamination, and consolidation of five material layers in a single process, consolidating multiple steps into a continuous production flow. This significantly reduces manual intervention and work-in-progress handling losses, helping customers improve efficiency and reduce costs.
PRODUCT DESCRIPTION
1. High-Precision Alignment for Consistency
●High-resolution vision system with active alignment platform ensures multi-layer positioning accuracy of ±0.1 mm.
●Closed-loop tension control prevents material stretching or wrinkling, guaranteeing perfect interface bonding between the GDL and catalyst layer.
2. Efficient Hot Pressing with Process Stability
●Zoned independent temperature control on hot plates achieves uniformity of ±3°C, accommodating various hot-melt and thermosetting materials.
●Closed-loop servo pressure control with fluctuation <1% eliminates crushing or sealing defects.
●Fast heating/cooling design enables single-station cycle time ≤6 seconds (material-dependent).
3. Fully Automated Production – Reduced Labor Dependency
●Automatic unwinding, cutting, waste stripping, and rewinding; optional robotic pick-and-place.
●Real-time monitoring of pressure, temperature, and displacement curves; automatic alarm and bad-part marking.
●Optional MES data upload interface for full production traceability.
4. High Yield & Low Material Waste
●Non-contact dust removal and ionizing static eliminator reduce leakage risks caused by particle contamination.
●Centralized die-cut waste recovery keeps edge material loss below 3%.
5. Flexible Compatibility & Fast Changeover
●Quick-change mold tooling and one-click recipe recall support five-in-one assemblies of various sizes and shapes (rectangular, profiled).
●Capable of processing membranes, carbon paper, sealing gaskets, and other materials with thickness ranging from 0.1 to 1.5 mm.
1. Professional MEA component manufacturers
2. Fuel cell stack integrators
3. Hydrogen energy laboratories, pilot lines, and mass production facilities
4. Solid-state electrolyte batteries and bipolar plate encapsulation for water electrolysis (available with optional adaptation)
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
