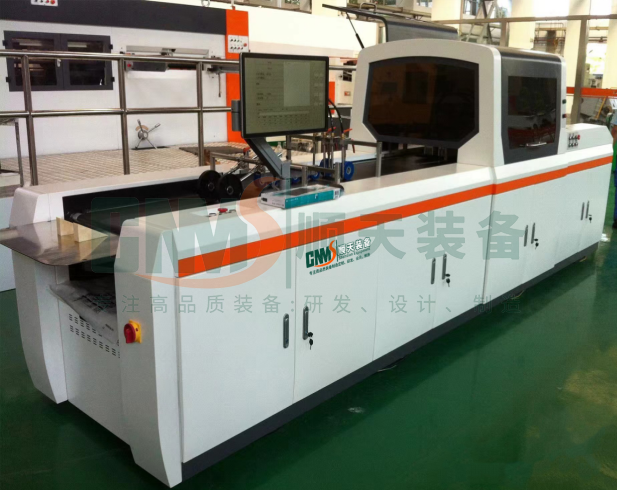

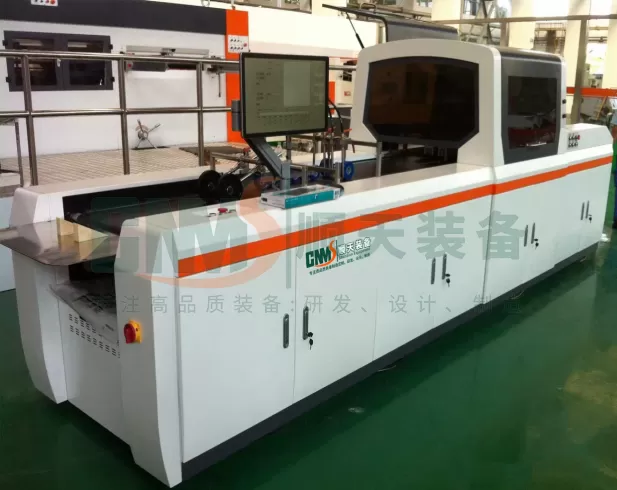

The membrane electrode three-in-one thermal lamination production line is primarily used for thermal lamination of CCM membrane electrodes, thermal lamination of MEA membrane electrodes, hot pressing of GDL gas diffusion layers, thermal lamination of CCS aerogels, thermal lamination of automotive component membranes, and hot pressing of composite materials;
Additionally, it integrates hot pressing and cold setting functions to achieve high-precision lamination and shaping of products.

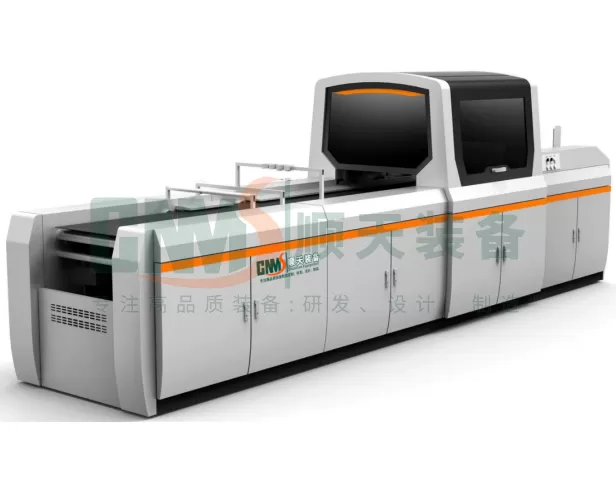

The 3-in-1 Laminating Line is an integrated manufacturing system designed for fuel cell membrane electrode assembly (MEA) production, combining multiple lamination processes into one continuous equipment solution.
Designed for PEM fuel cell manufacturers, this laminating system integrates precise heating, pressure control, and material positioning technologies to improve the consistency and efficiency of MEA fabrication.
PRODUCT DESCRIPTION
Core Advantages and Features of the Membrane Electrode Three-in-One Thermal Lamination Production Line
1. High-Precision Servo Control
●Utilizes a servo control system to achieve flexible and precise pressure application with stable force.
●Features dual control modes of constant pressure and constant stroke. The constant pressure mode employs torque sensors for real-time pressure monitoring and feedback.
●Supports multi-stage low-speed pressure application and multi-stage heating, enabling fine process adjustments. Overall temperature control accuracy reaches ±1°C.
2. High-Rigidity Machine Body Structure
The mainframe body is constructed using an integrated casting component, providing strong rigidity and minimal deformation. This ensures high precision and stability during long-term operation.
3. Flexible and Adjustable Process Settings
●Allows free programming of multi-stage pressure and multi-stage stroke parameters, with adjustable stages and sequences to meet diverse process requirements.
●Equipped with a fast vacuum function, which can be combined with slow, high-precision multi-stage pressure processes to achieve bubble-free and highly conformal lamination results.
4. Integrated Hot Lamination and Rapid Cold Setting
Combines thermal lamination with rapid cold setting functions, supporting parallel configuration and quick switching. This shortens production cycles and enables efficient product transfer and dimensional setting.
Project Parameters
| Item | TSPT-20T | TSPT-50T | TSPT-100T | TSPT-150T | TSPT-200T | TSPT-300T | TSPT-500T | TSPT-1000T |
| Clamping Force (KN) | 200 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 10000 |
| Platen Spacing (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 |
| Main Cylinder Stroke (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 |
| Heating Platen Area (mm) | 300*300 500*500 | 300*300 500*500 | 400*400 500*500 | 400*400 500*500 | 500*500 600*600 | 600*600 700*700 | 800*800 900*900 | 1000*1000 1200*1200 |
| Platen Temperature (℃) | 100-500 | 100-500 | 100-500 | 100-500 | 100-500 | 100-500 | 100-500 | 100-500 |
| Parallelism (mm) | 0.03 | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.04 | 0.05 |
| Flatness (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Cold Pressing Force (KN) | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 |
| Cold Pressing Area (mm) | <24 <450 | <240 <450 | <340 <450 | <340 <450 | <440 <550 | <540 <650 | <740 <850 | <940 <1050 |
Membrane electrode assembly is one of the core components of PEM fuel cells.
The manufacturing process requires accurate control of:
● Temperature
● Pressure
● Lamination time
● Material alignment
● Compression uniformity
Traditional separate processing equipment may increase:
● Material transfer time
● Alignment errors
● Process variation
● Production complexity
The 3-in-1 Laminating Line combines multiple lamination functions into one system, providing a more efficient solution for fuel cell manufacturing.
A typical MEA production workflow includes:
Prepare:
● PEM membrane
● Catalyst layer
● Gas diffusion layer
The membrane and electrode materials are positioned accurately before lamination.
Controlled temperature and pressure are applied to bond different layers together.
The finished MEA can be inspected for:
● Appearance
● Thickness consistency
● Layer bonding quality
● Dimensional accuracy
Looking for a reliable MEA laminating line for PEM fuel cell production? Share your membrane size, MEA structure, production capacity, and automation requirements. Shuntian engineers can provide a suitable 3-in-1 Laminating Line configuration for your hydrogen energy manufacturing process.
