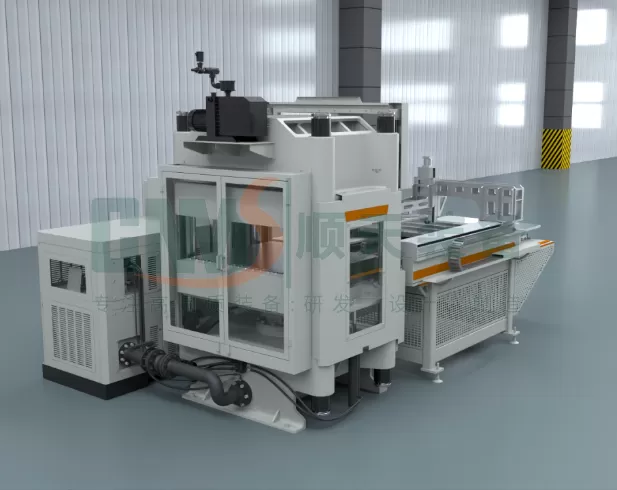

The 200T Servo Vacuum Hot Press is engineered for advanced new material molding, specializing in the processing of high-performance materials like graphite bipolar plates, composites, carbon fiber, and graphene. By integrating precision servo control, a high-temperature heating system, and a vacuum environment, it ensures uniform, dense molding in an oxygen- and impurity-free setting through precise control of temperature, pressure, and time.
With its powerful 200-ton pressure output and stable vacuum performance, the machine not only effectively eliminates defects such as bubbles and delamination but also significantly enhances the material's mechanical strength and electrical conductivity. This makes it an ideal choice for manufacturing high-end components in fields such as new energy, aerospace, and electronic communications.
PRODUCT DESCRIPTION
In practical applications, this equipment is widely used in the production of precision structural components such as carbon fiber phone cases and fiberglass flat shells. The vacuum hot pressing process significantly enhances product lightweighting and structural consistency. Its intelligent control system supports adjustable process parameters, making it compatible with the molding requirements of various complex materials. It also features high energy efficiency, user-friendly operation, and safe, reliable performance. Whether for laboratory R&D or mass production, the 200T Servo Vacuum Hot Press Machine delivers exceptional process stability and yield rates, helping customers overcome technical bottlenecks in new material molding and driving the industry toward greater efficiency and precision.
Project Parameters
| Item | TSPC -30T | TSPC -50T | TSPC -100T | TSPC -150T | TSPC -200T | TSPC -300T | TSPC -500T | TSPC -2000T |
| Mold closing force kN | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 20000 |
| Hot plate spacing mm | 300 | 300 | 300 | 300 | 400 | 1000 | 1000 | 1100 |
| Master Cylinder Stroke mm | 300 | 300 | 300 | 300 | 400 | 1100 | 1100 | 1100 |
| Hot Plate Area mm | 300*300 500*500 | 300*300 500*500 | 400*400 500*500 | 400*400 500*500 | 500*500 600*600 | 600*600 2000*2000 | 800*800 2000*2000 | 1000*1000 3000*2000 |
| Hot plate Tem °C | 100-500 | 100-500 | 100-500 | 100-500 | 100-500 | 100-500 | 100-500 | 1-550 |
| Parallelism mm | 0.03 | 0.03 | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.05 |
| Flatness mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | ±0.03 |
| vacuum degreeMPa | -0.098 | -0.098 | -0.098 | -0.098 | -0.098 | -0.098 | -0.098 | -0.096 |
