The 200T Servo Hot Press Machine, with precision, efficiency, and reliability at its core, delivers advanced molding solutions for new energy, composite materials, consumer electronics, and high-end general manufacturing fields.
PRODUCT DESCRIPTION

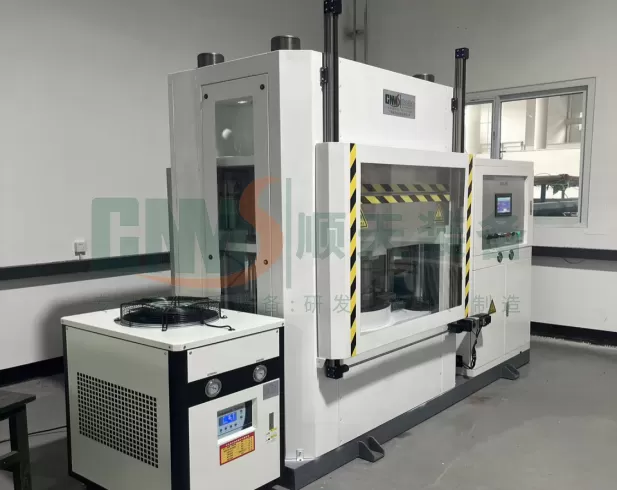

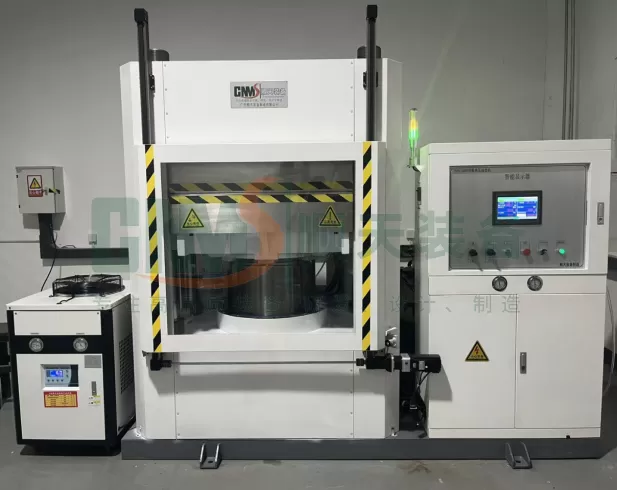

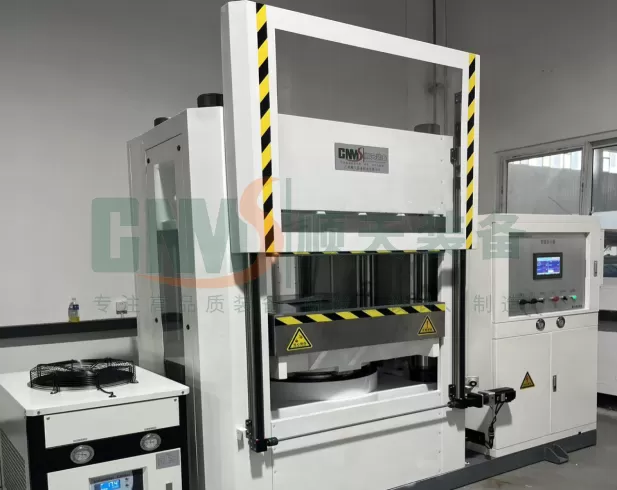

The 200T Servo Hot Press Machine is a heavy-duty, high-precision thermal compression molding system designed for large-scale industrial manufacturing. Combining advanced servo drive technology with intelligent temperature and pressure control, this machine delivers exceptional forming accuracy, energy efficiency, and process stability for composite materials, thermoplastics, carbon fiber components, battery materials, and industrial laminates.
With a maximum pressing force of 200 tons, the machine is ideal for high-pressure molding applications requiring superior product quality, repeatability, and production efficiency.
A 200-ton servo hot press uses electrically controlled servo actuators to apply programmable pressure while heated platens soften, cure, laminate, or compress materials under precisely controlled thermal conditions.
Unlike traditional hydraulic presses, servo hot press machines provide:
Higher positioning accuracy
More precise force control
Lower energy consumption
Faster response speed
Improved process consistency
Reduced maintenance requirements
The machine is widely used in advanced manufacturing industries where precision and reliability are critical.
200T Servo Thermal Press Forming Machine Applications
● In the new energy and composite materials sector, this servo thermal press forming machine specializes in the thermal lamination of fuel cell CCM/MEA, hot pressing of GDL diffusion layers, and CCS sealing molding. It is also proficient in the precision molding of high-performance materials such as carbon fiber, ensuring stability in core processes and enabling the integrated manufacturing of components with high strength, lightweight construction, and complex structures.
● In the fields of consumer electronics and general advanced manufacturing, it can produce micron-level precision structural parts for products like VR/AR devices and 5G phones. It also extensively meets the diverse, high-standard production requirements for components ranging from automotive interiors to aerospace parts.
Advantages and Features
1. This thermal press forming machine boasts exceptional mechanical precision and molding stability:
● Flatness ≤ 0.02mm, Parallelism ≤ 0.03mm, providing a reliable foundation for high-precision molding.
● Pressure Control Accuracy ≤ 1%, utilizing torque/pressure sensors for real-time closed-loop feedback, ensuring precise and reliable force application and part formation.

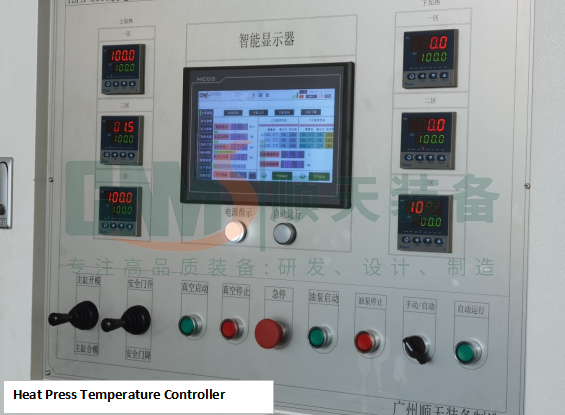

● Temperature Control Accuracy ±0.5°C, Heating Plate Temperature Uniformity ≤ 2°C, with the overall process area temperature deviation controllable within ±1°C, meeting stringent thermoforming process requirements.
2. The equipment adopts a servo-hydraulic control system, delivering stable pressure output and rapid response. It offers the key advantages of high efficiency, high yield, and excellent product quality. It supports flexible pressing and slow multi-stage pressure application, enabling free programming of multi-stage pressure and multi-stage stroke. The number of stages, sequence, and values can be instantly adjusted according to process needs. This makes it particularly suitable for high-end product scenarios involving complex recipes, frequent mold changes, and processes requiring dynamic parameter optimization.
From fundamental hardware to control logic, this machine provides comprehensive technical support for the entire high-quality thermal press forming process.
Project parameters

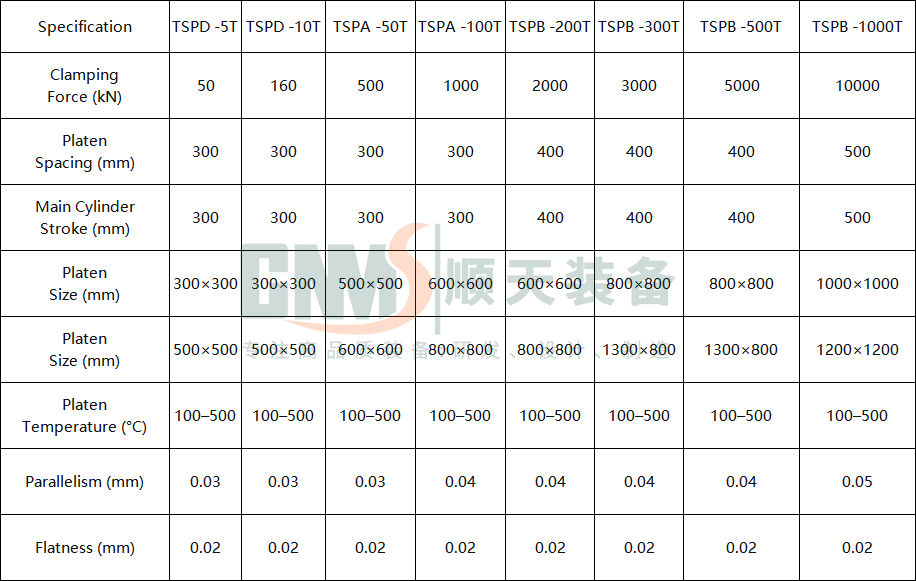

| Item | TSPD-5T | TSPD-10T | TSPA-50T | TSPA-100T | TSPB-200T | TSPB-300T | TSPB-500T | TSPB-1000T |
| Clamping Force (kN) | 50 | 160 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Platen Spacing (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 |

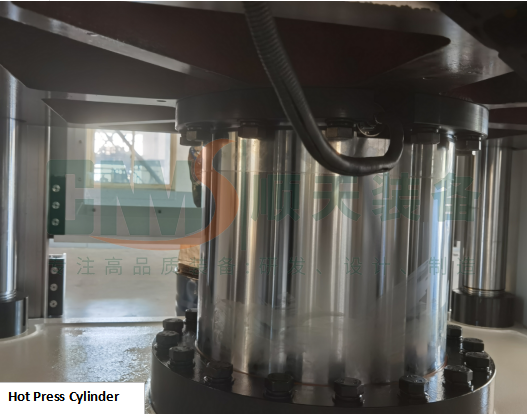

| Main Cylinder Stroke (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 |
| Platen Size (mm) | 300×300 | 300×300 | 500×500 | 600×600 | 600×600 | 800×800 | 800×800 | 1000×1000 |
| Platen Size (mm) | 500×500 | 500×500 | 600×600 | 800×800 | 800×800 | 1300×800 | 1300×800 | 1200×1200 |
| Platen Temperature (°C) | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 |
| Parallelism (mm) | 0.03 | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.04 | 0.05 |
| Flatness (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
The machine combines high-force capacity with precision servo control to achieve excellent forming performance and process consistency.
We offer customized configurations for:
Table dimensions
Daylight opening
Temperature range
Automation requirements
Material handling systems
Special process needs
Designed for continuous production environments with robust construction and high-quality components.
Our services include:
Process consulting
Equipment design
Installation and commissioning
Operator training
Spare parts support
Remote diagnostics
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
