200T servo thermal press forming machine designed for high-standard technical fields, this machine precisely serves core manufacturing processes in fuel cell production—specializing in CCM/MEA thermal lamination, GDL diffusion layer hot pressing, and CCS sealing molding—while also excelling in precision molding of high-performance composite materials such as carbon fiber.
Leveraging its high tonnage pressure and multi-zone temperature control system, the equipment ensures stable and efficient processing, facilitating the high-strength, lightweight, and integrated manufacturing of components. Its precision control capabilities extend to consumer electronics and advanced manufacturing, enabling the formation of micro-scale complex structural parts for VR/AR devices and 5G phones, while broadly covering diverse applications from automotive interiors to aerospace.
PRODUCT DESCRIPTION
Advantages
●High Precision & Stability: Digital servo control enables micron-level displacement and microsecond-level response, ensuring high processing consistency and repeatability.
●Multi-Functional Adaptability: Features multi-stage heating, automatic temperature measurement, and remote control, making it suitable for complex workpieces and diverse processes.
●Energy Efficiency & High Productivity: Zero standby power consumption, dynamic speed adjustment during pressing, and rapid heating and pressing significantly boost production efficiency.
●Smart Maintenance & Low Operating Costs: Real-time heating tube monitoring with automatic fault alerts; main frame nuts are anti-loosening for five years, ensuring lasting precision; software upgrades are free for life, and the user-friendly interface contributes to low maintenance costs.
The servo thermal press forming machine mainly consists of the following 5 core components
1. Frame: The skeleton of the equipment, designed to withstand pressure and ensure precision.
2. Servo Drive: The heart. It uses a servo motor + ball screw to replace traditional hydraulic cylinders, controlling the up-and-down movement of the press head and determining the pressure and speed.
3. Heating System: The upper and lower heating plates, responsible for heating the mold to the set temperature, complete with a temperature controller.

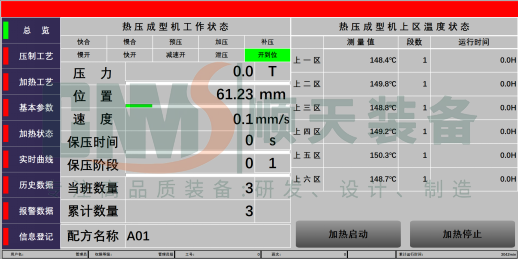

4. Electronic Control System: The brain. Consists of a touchscreen + PLC, used for adjusting parameters and monitoring status.
5. Safety Accessories: Includes safety light curtains, lubrication pumps, protective covers, etc.
Project Parameters
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
