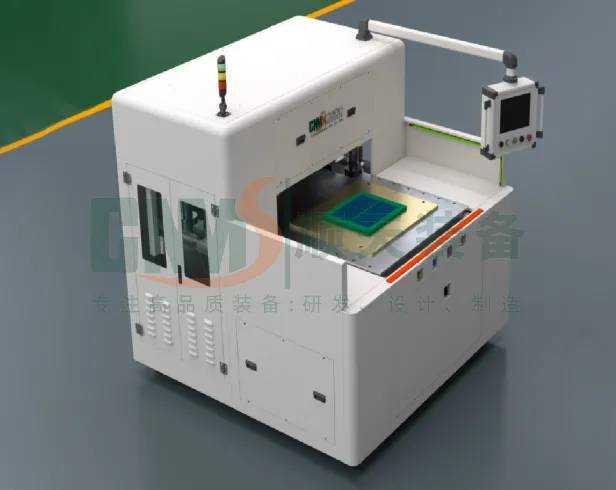

Precision Servo Cutting Equipment for Flow Batteries

Working Principle & Structural Composition

The equipment uses a servo motor combined with a ball screw or timing belt to drive the cutting head or feeding mechanism. Paired with precision cutting tools (rotary circular knife, flat die cutter, oscillating knife, or laser head), it achieves high repeatability and cutting accuracy.

Main Structural Modules

1. Frame & Worktable

Compact cast or steel-frame body with an anti-static work surface or cutting mat. Supports both single-sheet and roll-fed materials.

2. Servo Drive System

Includes servo motor, driver, and encoder, providing high torque, fast response, and precise position control to ensure consistent cutting positioning every cycle.

3. Cutting Actuation Unit – Configurable based on material type:

●Rotary circular knife (slitting/cut-off) – Ideal for continuous roll cutting of ionomer membranes and carbon paper.

●Upper/lower flat die cutter – Suitable for die-cutting small gaskets and sealing rings.

●High-frequency oscillating knife – Best for carbon felt and soft graphite felt (prevents crushing).

●Compact laser head – For intricate thin parts (requires fume extraction).

4. Clamping & Feeding Unit

For roll materials: servo-controlled feeding rollers with adjustable grip force. For sheet materials: manual or pneumatic hold-down plates.

5. Control System

PLC or embedded motion controller with touchscreen interface. Allows setting cut length, quantity, cutting speed, reciprocating mode, and storing multiple recipes.

6. Safety Protection

Light curtain or safety cover plus two-hand start button to ensure safe operation.

Technical Features & Advantages

1. Compact & Portable

Overall dimensions typically L1.0–1.5m × W0.6–0.8m × H1.0–1.2m. Fits on a lab bench or stand, ideal for space‑constrained laboratories or pilot lines.

2. High Precision & Stability via Servo Drive

Compared to stepper motors or pneumatic cutters, servo motors deliver smooth torque across the entire speed range with minimal position error. Achievable cutting length accuracy: ±0.1 mm; repeatability: ±0.05 mm – meeting flow battery requirements for dimensional consistency of ionomer membranes and electrodes.

3. Flexible for Multiple Materials

By swapping tools and adjusting process parameters (speed, pressure, blade penetration), one machine handles everything from ultra‑thin ionomer membranes (20 μm) to flexible graphite plates up to 3 mm thick, and even bulky carbon felt (5–10 mm thick). No frequent mechanical changes needed.

4. High Cut Edge Quality

For ionomer membranes and carbon paper: rotary or oscillating knife cutting avoids melt shrinkage or burrs. For carbon felt: dedicated tooling reduces fiber fraying and powder shedding.

5. Low Waste & Small‑Batch Friendly

Supports manual or automatic feeding; only a small amount of material is needed – perfect for test‑grade runs. Software‑optimized nesting layouts reduce scrap.

6. Easy Operation & Fast Changeover

Touchscreen input for size, quantity, speed; one‑touch recall of stored recipes. To switch products, simply adjust feeding length or change the cutting tool (within 5 minutes) – no complex setup.

7. Excellent Safety

Blade cover and safety interlock switch stop the machine immediately when opened, complying with laboratory safety standards.

Typical Applications

1. Ionomer Membrane Cutting

Cutting roll‑fed perfluorosulfonic acid membranes into single sheets for experiments (e.g., 100×100 mm, 200×300 mm) – smooth edges, no stretch deformation.

2. Carbon Felt Electrode Sizing

Cutting whole rolls or sheets of carbon felt into battery‑specific rectangles (e.g., 300×400 mm). Servo control ensures batch‑to‑batch consistency while minimizing dust generation.

3. Small‑Batch Sealing Gasket Production

Using die‑cutting or oscillating knife to cut silicone or EPDM gaskets, providing rapid supply of seals for stack assembly.

4. Bipolar Plate Trimming

Edge finishing of injection‑molded or compression‑molded composite bipolar plates – removing flash.
