The ultimate solution for next-generation high-performance material manufacturing. Our fully automatic servo thermal-cold press forming line, centered on high-precision servo control, achieves seamless continuous operation from thermal pressing to cold shaping.
Core Application Areas:
Hydrogen Energy Core: Precision manufacturing of CCM/MEA membrane electrodes, DGR gas diffusion layers, and bipolar plates
New Energy Materials: Efficient forming of CCS aerogels and high-performance automotive films
Advanced Composites: Addressing the demanding forming requirements of various advanced composite materials
PRODUCT DESCRIPTION

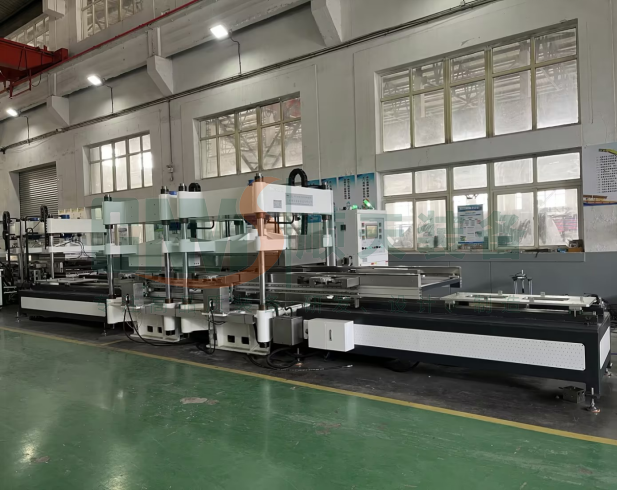

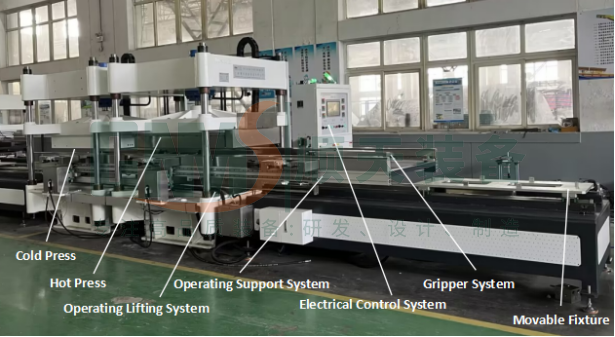

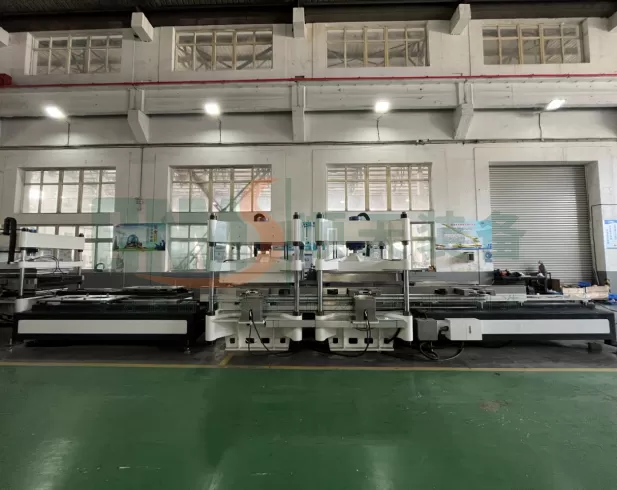

Core Components and Functions of the Servo Thermal-Cold Press Forming Line
1. Hot Press: Provides a high-temperature, high-pressure environment to complete the hot pressing and forming of materials, ensuring a dense internal structure and stable shape.
2. Cold Press: Shapes the workpiece after hot pressing under low-temperature, high-pressure conditions, eliminating internal stress and improving product flatness and dimensional accuracy.
3. Transfer Lifting System: Precisely lifts and conveys workpieces between different stations, ensuring a stable production cycle.
4. Transfer Support Frame System: Provides stable support for the production line, adapting to the conveying and processing needs of workpieces with different specifications.
5. Electrical Control System: Utilizes PLC + touchscreen control for presetting process parameters, monitoring production status, and supporting fault alarms and data traceability.
6. Gripper System: Precisely grips and positions workpieces, preventing misalignment or damage during transfer and ensuring processing consistency.
7. Movable Tooling: Flexibly adapts to molds and workpieces of different specifications, enabling quick changeovers and enhancing the line's flexible production capabilities.
Product Advantages
1. High Automation Efficiency: Fully automated material handling and processing significantly reduce manual intervention while boosting productivity. Compared to traditional lines, efficiency increases by over 30%, with single-shift capacity exceeding 500 units.
2. Precise Process Control: Temperature and pressure parameters are precisely regulated throughout both hot and cold pressing stages to ensure consistent, high-quality output. Accuracy: ±1°C for temperature, ±0.5MPa for pressure—minimizing defects caused by process fluctuations.
3. Exceptional Flexibility: Modular design and adjustable tooling enable rapid changeovers between products of varying specifications and materials. Handles everything from standard 1220×2440mm panels to custom-shaped components, adapting to diverse market needs.
4. Built to Last: Core components manufactured from premium materials, with a rugged frame engineered for continuous high-intensity operation. Key parts deliver 10+ years of service life; average annual failure rate below 1%.
5. Safe & User-Friendly: Intuitive HMI interface combined with multiple safety features—emergency stop, light curtains, overload protection—ensures operator safety while minimizing training requirements.
6. Energy-Efficient & Eco-Conscious: Advanced heating/cooling systems reduce energy consumption by over 20% compared to conventional equipment. Integrated exhaust recovery further minimizes emissions, meeting green manufacturing standards.
7. Comprehensive After-Sales Service: Lifetime technical support and spare parts availability, with 24-hour response to service requests—ensuring continuous, reliable production line operation.
Project Parameters

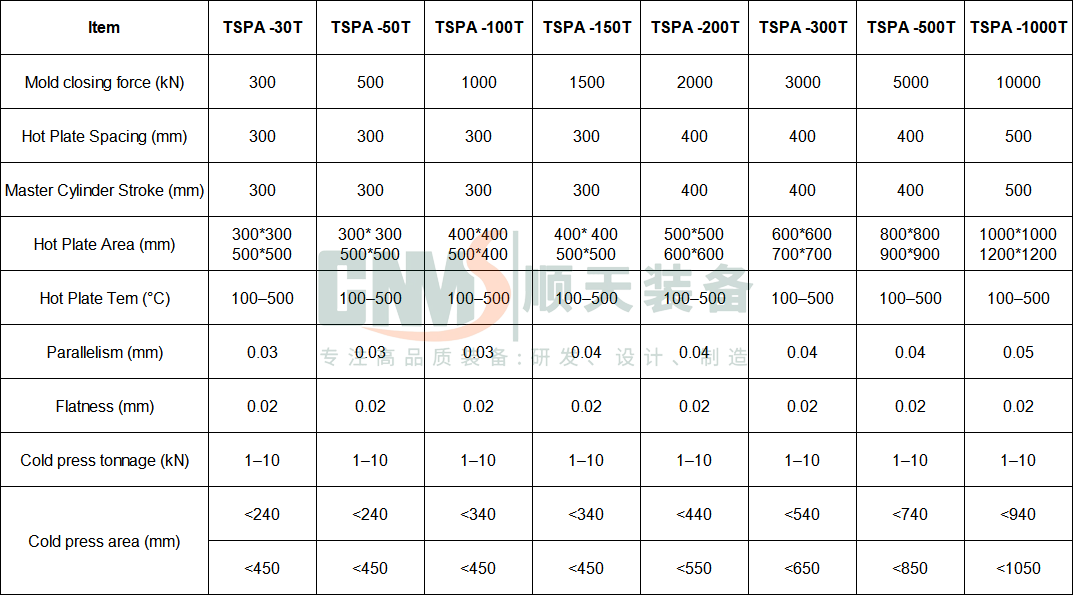

| Item | TSPA-30T | TSPA-50T | TSPA-100T | TSPA-150T | TSPA-200T | TSPA-300T | TSPA-500T | TSPA-1000T |
| Mold closing force (kN) | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 10000 |
| Hot Plate Spacing (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 |
| Master Cylinder Stroke (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 |
| Hot Plate Area (mm) | 300*300 500*500 | 300*300 500*500 | 400*400 500*500 | 400*400 500*500 | 500*500 600*600 | 600*600 700*700 | 800*800 900*900 | 1000*1000 1200*1200 |
| Hot Plate Tem (°C) | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 | 100–500 |
| Parallelism (mm) | 0.03 | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.04 | 0.05 |
| Flatness (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Cold press tonnage (kN) | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 |
| Cold press area (mm) | <240 | <240 | <340 | <340 | <440 | <540 | <740 | <940 |
| <450 | <450 | <450 | <450 | <550 | <650 | <850 | <1050 |
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
