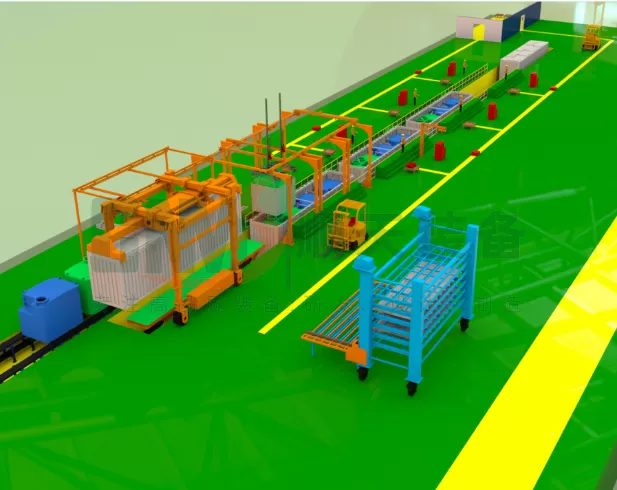

Capacity Container Assembly Line

Application Scope

This assembly line is specifically designed for the following operational scenarios:

●Complete assembly of liquid flow battery capacity containers: Integration and final assembly of all internal systems within the container.

●Automated removal, storage, and installation of capacity container covers: Full-process automated handling of container covers.

●Rapid installation of capacity container liquid storage tanks: Supports alternating operations with multiple tank specifications.

Key Features and Workstation Functions

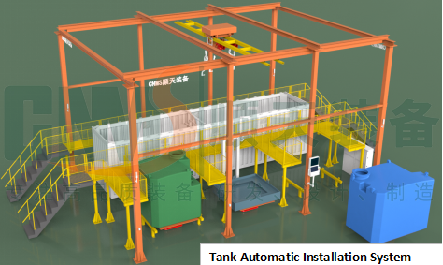

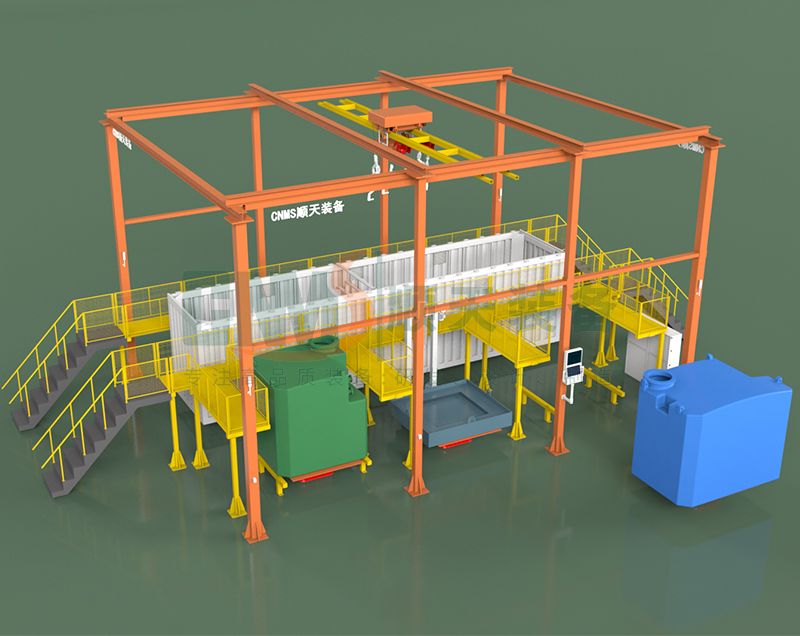

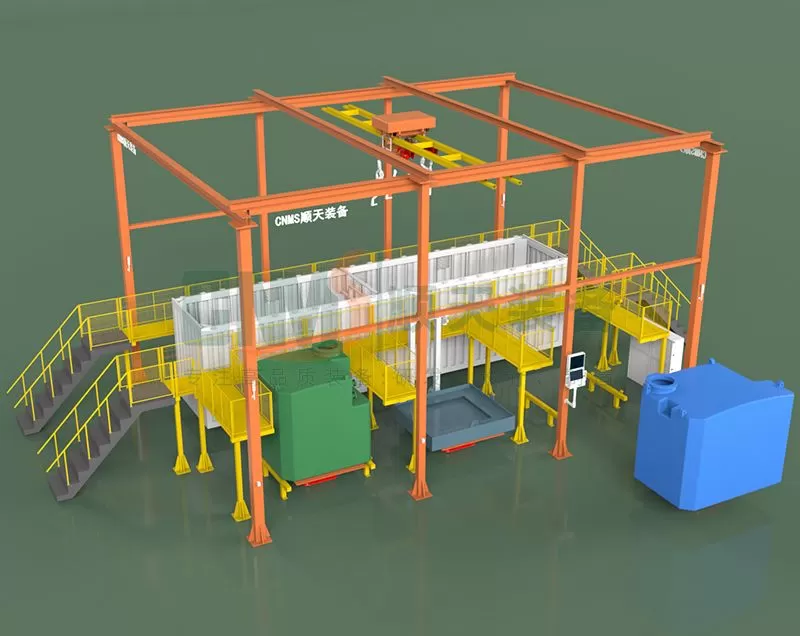

1. Liquid Storage Tank Installation Workstation

●The workstation is equipped with two liquid storage tank positions, enabling alternating installation. This effectively reduces waiting time and improves workstation utilization.

The station design is compatible with liquid storage tanks of various sizes, allowing for quick changeovers without additional adjustments to meet the production requirements of different capacity container models.

●TPU Liner Installation Mechanism features a unique design with two sets of hooks moving toward each other, enabling precise positioning and rapid installation of the TPU liner.

Operators can complete the entire process with the push of a button, significantly reducing operational complexity and labor intensity while ensuring consistent installation quality.

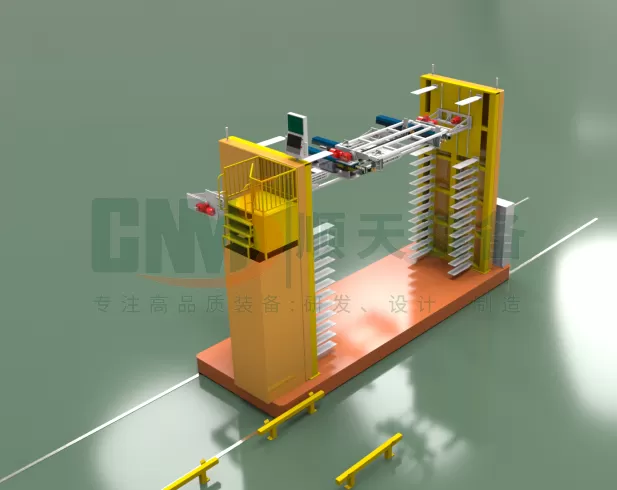

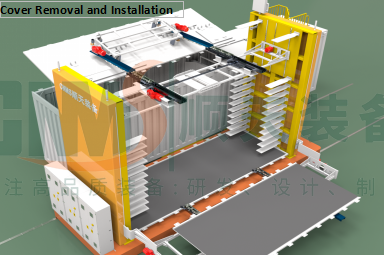

2. Integrated Workstation for Cover Removal, Storage, and Installation

●Integrates automatic cover removal, classified storage, and subsequent reinstallation, completing the entire cover handling process in one station to reduce material transfer and manual intervention.

●A workspace for applying thermal insulation padding is reserved at the rear of the station, allowing the cover to be insulated before entering the storage area. This optimizes process flow and enhances the continuous operation capability of the production line.

Summary of Advantages

● Efficient Collaboration: The straight-line layout and automated workstations work in close coordination, significantly shortening the assembly cycle.

● Flexible Compatibility: Key workstations support switching between multiple product specifications, adapting to diverse production tasks.

● Convenient Operation: The human-machine interaction design is simple, with one-click operation reducing training costs and the risk of errors.

● Reliable Quality: Standardized processes and automated execution ensure assembly precision and product consistency.

This assembly line provides an ideal solution for the large-scale, high-quality production of flow battery capacity containers, helping customers achieve capacity enhancement and cost optimization.
