This servo-controlled hot and cold press forming machine is specifically designed for high-precision industrial applications such as CCM membrane electrodes, MEA membrane electrodes, DGR gas diffusion layers, CCS aerogels, automotive films, flow battery bipolar plates, and composite materials.
It innovatively integrates hot press forming and cold setting processes into a single system, achieving precise control over material properties through a continuously controllable temperature-pressure coordinated process. It is suitable for advanced manufacturing scenarios in fields such as new energy, automotive manufacturing, and composite material preparation that require strict consistency in process and product performance.
PRODUCT DESCRIPTION

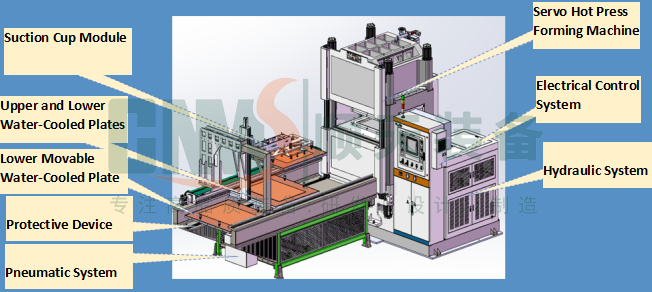

Core Components and Functions
1. Servo Thermal Press Forming Machine
As the core execution unit of the equipment, it utilizes a servo-driven hydraulic system to precisely control pressing pressure, temperature, and stroke, ensuring uniform density and dimensional stability of the formed parts.
2. Upper/Lower Water Cooling Plates & Movable Lower Water Cooling Plate
The upper and lower water cooling plates, working in conjunction with the movable lower cooling plate, enable rapid cooling and shaping of workpieces—effectively shortening production cycles while improving dimensional accuracy and mechanical properties.
3. Suction Cup Module
Responsible for automatic loading and unloading, powered by a pneumatic system to provide suction. It enables precise workpiece positioning and automated material handling, reducing manual intervention.
4. Safety Guarding
Equipped with safety protective fences and safety doors, effectively isolating hazardous areas to ensure operator safety while preventing foreign objects from entering the work zone.
5. Electrical Control System & Hydraulic/Pneumatic Systems
The electrical control system serves as the "brain," integrating a touchscreen and PLC for flexible setting of process parameters (temperature, pressure, time, etc.), enabling fully automated process control.
The hydraulic system provides stable power for hot pressing, while the pneumatic system supplies air to actuators such as the suction cup module—ensuring efficient and stable equipment operation.
Equipment Advantages
● High Level of Automation: The entire process—from loading/unloading to hot pressing and cooling—can be fully automated, significantly improving production efficiency.
● Precise Process Control: Servo drive and precise temperature control systems ensure product consistency and high yield rates.
● Safe and Reliable: Multiple safety protections combined with a stable hydraulic/pneumatic design ensure long-term stable operation and personnel safety.
● Wide Application Scope: Suitable for molding processes across various industries, including composite materials, new energy battery structural components, and automotive interior parts.

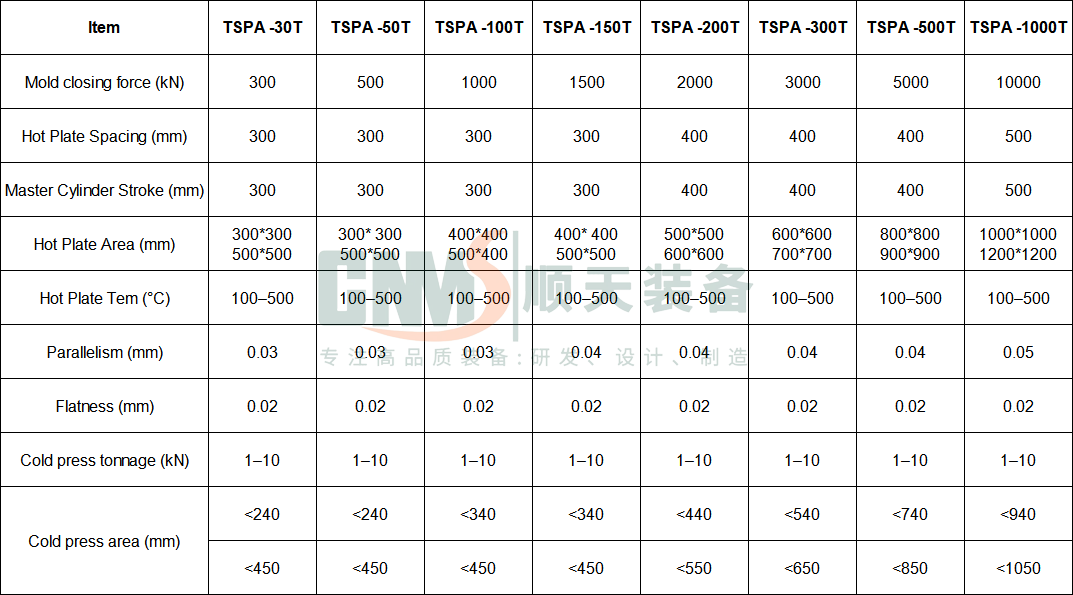

Project Parameters
