The production line is specifically designed for graphite bipolar plates used in flow batteries, encompassing three major processes: molding, impregnation, and adhesive dispensing and bonding. It enables fully automated operations throughout the entire production cycle, effectively enhancing production continuity and process consistency.
PRODUCT DESCRIPTION
Production Process

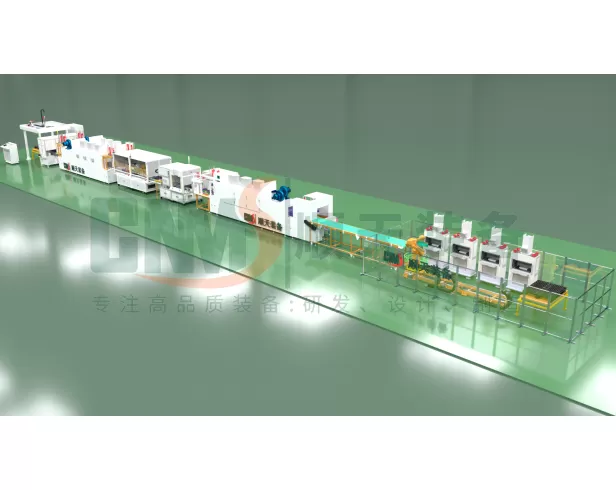

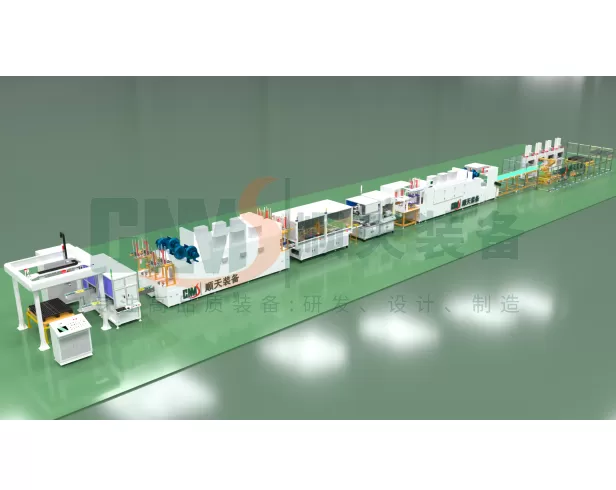

This flow battery graphite bipolar plate production line is manufactured through a fully automated servo molding system that ensures high-precision compaction of specialty graphite materials. By precisely regulating pressure, temperature, and cycle time, the system enables single-step molding of complex features—such as flow channels and sealing grooves—directly into the plates. This integrated approach not only delivers superior electrical conductivity and mechanical strength, but also eliminates leakage risks associated with conventional adhesive bonding, providing a robust foundation for downstream processes.

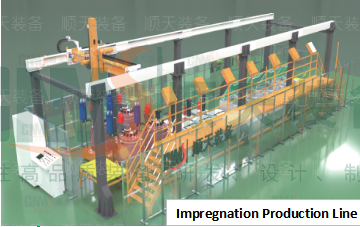

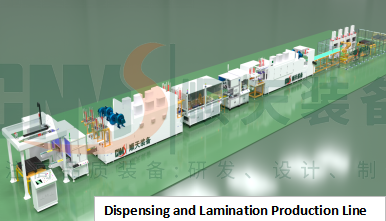

Following molding, the plates undergo impregnation and adhesive dispensing. Vacuum-pressure impregnation thoroughly fills the graphite matrix micropores with a dedicated sealant, enhancing density, corrosion resistance, and gas barrier performance. A high-precision vision-guided dispensing system then applies uniform adhesive beads in sealing zones, ensuring durable and reliable bonding with membrane electrodes or other components. The entire line incorporates in-process quality inspection and full data traceability, enabling end-to-end quality control and consistent, high-volume production that meets the stringent durability and uniformity demands of grid-scale energy storage systems.
Advantages
1. Full-Process Precision Control and In-Line Inspection
Through comprehensive precision process control and in-line inspection, the production line ensures minimal batch-to-batch variation in key parameters such as bipolar plate thickness, flow field dimensions, electrical conductivity, and gas tightness. This guarantees uniform stack performance and long-term reliability.
2. Modular Design and Rapid Production Ramp-Up
Featuring a modular design, the production line supports quick installation and commissioning. It enables customers to rapidly scale from prototype samples to GWh-level production capacity.
3.Multi-Size Compatibility and Quick Changeover
The line is compatible with various mainstream sizes (e.g., from 0.2 m² to >1 m²). Equipped with a quick changeover system, it can flexibly accommodate customized flow field designs from different customers.
4. Production Data Integration and Traceability
Integrated with an MES (Manufacturing Execution System), the production line enables real-time monitoring of production data, traceability of process parameters, quality analysis, and decision support, laying a solid foundation for lean manufacturing and continuous improvement.
Project Parameters
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
