Container Cover Removal & Installation System

Core Workflow

1. Automated Removal Process

When a container requiring maintenance arrives at the station, the system begins precise operations immediately:

1) Precise Positioning & Departure: The AGV delivers the container precisely to the cover handling station, then automatically moves away to clear the workspace for subsequent operations.

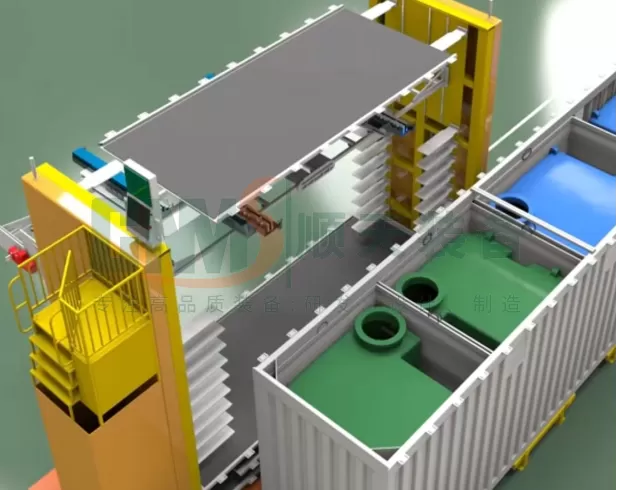

2) Safe Gripping & Flipping: A lifting manipulator arm on the container side extends precisely. It securely grips the cover panel using vacuum suction cups. After lifting it to a safe height, the arm executes a precise 180-degree flip. This positions the panel's outer surface facing downward, preparing it for insulation pad application.

3) Intelligent Temporary Storage: After flipping, the arm retracts and safely places the panel into a designated slot on the cover storage rack.

4) Cyclic Operation: The handling mechanism moves to the next panel position and repeats the gripping and flipping steps.

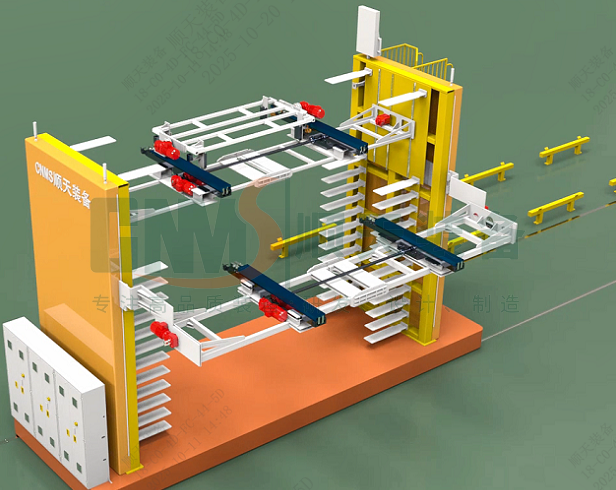

5) Manual Assistance Station: Once panels are flipped, a lifting arm behind the storage rack rises, retrieves a panel, and lowers it to an ergonomic working height. This allows operators to quickly apply insulation pads under safe, comfortable conditions.

6) Completion & Transfer: After insulation application, the rear arm returns the panel to its storage slot. The AGV then transports the container (now with all panels removed) away from the station, completing the removal cycle.

2. Automated Installation Process

When a container returns to the station after internal work is complete, the system performs the reverse assembly process with precision:

1) Precise Panel Retrieval: Following system commands, the rear manipulator arm retrieves the correct panels for that specific container from storage and places them at a fixed transfer position on the rack.

2) Flipping & Installation: The container-side manipulator arm takes a panel from the transfer position. It performs a 180-degree flip to restore it to the correct installation orientation. The arm then precisely installs the panel onto the container roof.

3) Sequential Assembly: This sequence repeats for each remaining panel, handling retrieval, flipping, and installation one by one.

4) Final Transfer: Once both panels are fully installed, the AGV moves the container away to proceed to the next stage of operation.

Technical Highlights

●Seamless Collaborative Operation: AGVs, container-side arms, and rear storage rack arms work together in perfect coordination. This creates a fully integrated closed loop for logistics and assembly.

●Safe Flipping Mechanism: The 180-degree precision flipping technology protects panel structures from damage while creating an optimal working angle for insulation application. It eliminates risks associated with manual overhead or inverted working positions.

●Ergonomically Designed Workflow: Manipulator arms precisely deliver panels to the optimal working height. This greatly improves working conditions for operators applying insulation, combining automation efficiency with the flexibility of human intervention.

●High-Precision Positioning: Vision or laser-guided systems ensure accurate pickup and placement between manipulator arms, containers, and storage racks. This prevents collisions and ensures smooth operation.
