Dual-action electric reactor assembly servo press is a revolutionary core equipment specially developed for the large-scale manufacturing of next-generation high-power, high-reliability liquid current batteries (especially all-vanadium liquid current batteries, etc.). It breaks through the technical limitations of the traditional single-action press, adopts two groups of independent high-precision servo drive units, and applies symmetrical and controllable press force from both ends of the power pile synchronously to realize dynamic centering and uniform compression of the power pile components in the whole process of “alignment” and “press-fit”. compression.
PRODUCT DESCRIPTION
The core value of this equipment lies in its subversive force control concept and structural design. During the press-fitting process, the upper and lower drive units carry out collaborative closed-loop control based on a real-time sensor network to ensure that the force is always transmitted along the center axis of the stack, which fundamentally eliminates inherent defects such as tilting of the components, misalignment, or uneven distribution of the internal stresses caused by unilateral pressure application. This provides an ideal mechanical environment for the perfect combination of large thin-layer electrodes, complex flow channels and multiple sealed interfaces inside the liquid-flow battery stack.

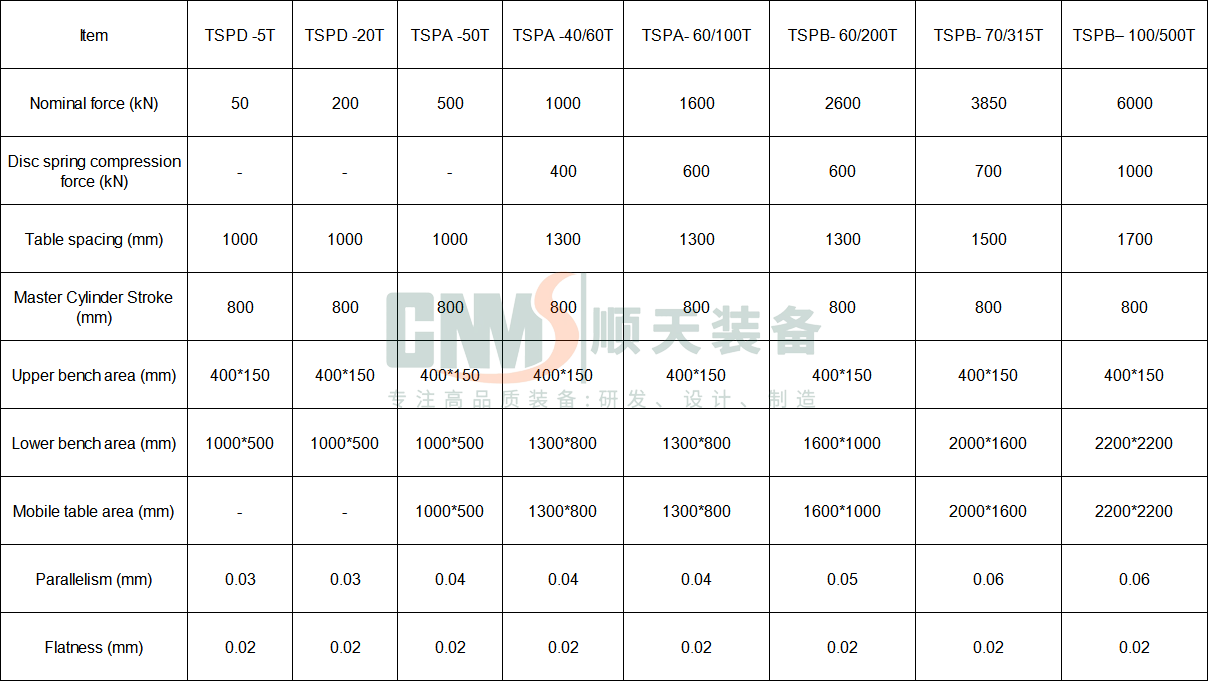

Project Parameters
| Item | TSPD -5T | TSPD -20T | TSPA -50T | TSPA -40/60T | TSPA- 60/100T | TSPB- 60/200T | TSPB- 70/315T | TSPB– 100/500T |
| Nominal force (kN) | 50 | 200 | 500 | 1000 | 1600 | 2600 | 3850 | 6000 |
| Disc spring compression force (kN) | - | - | - | 400 | 600 | 600 | 700 | 1000 |
| Table spacing (mm) | 1000 | 1000 | 1000 | 1300 | 1300 | 1300 | 1500 | 1700 |
| Master Cylinder Stroke (mm) | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Upper bench area (mm) | 400*150 | 400*150 | 400*150 | 400*150 | 400*150 | 400*150 | 400*150 | 400*150 |
| Lower bench area (mm) | 1000*500 | 1000*500 | 1000*500 | 1300*800 | 1300*800 | 1600*1000 | 2000*1600 | 2200*2200 |
| Mobile table area (mm) | - | - | 1000*500 | 1300*800 | 1300*800 | 1600*1000 | 2000*1600 | 2200*2200 |
| Parallelism (mm) | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.05 | 0.06 | 0.06 |
| Flatness (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
