Guangzhou Shuntian Equipment Manufacturing Co., Ltd. recently successfully completed a hydrogen fuel cell production line project with a certain company, injecting new impetus into the development of the hydrogen energy industry and demonstrating the company's growing technological strength and market competitiveness in this field.
This production line integrates multiple independently developed technologies and boasts leading automation and intelligent capabilities. High-precision coating and lamination techniques are used in membrane electrode production to control catalyst coating uniformity errors. A company using this line has achieved a 20% increase in power density for membrane electrodes compared to traditional processes.
The stack assembly system incorporates a robotic automated assembly system, coupled with high-precision visual inspection technology, achieving component assembly accuracy of ±0.05mm, far exceeding the industry average of ±0.1mm, reducing the risk of battery performance degradation. Furthermore, the production line has a comprehensive automated inspection and quality traceability system to ensure consistent product quality.
Through optimized processes and layout, the production line achieves fully automated continuous production, with a single-shift capacity of [X] stacks. This represents an efficiency improvement of over 50% compared to traditional production lines, enabling customers to meet market demand and accelerate the large-scale application of hydrogen fuel cells.
Shuntian Equipment also provides comprehensive after-sales technical support and training services to ensure the long-term stable operation of the production line.
This delivery provides strong support for the large-scale and industrialized development of my country's hydrogen fuel cell industry. Shuntian Equipment will continue to increase its R&D investment, optimize its products and services, and contribute to the development of the global hydrogen energy industry and the transition to green, low-carbon energy.
With the increasing global emphasis on clean energy and sustainable development, the new energy industry is facing unprecedented development opportunities. As a leader in new energy and intelligent manufacturing equipment, Shuntian Equipment will continue to uphold the principles of innovation, pragmatism, and efficiency, continuously launching more high-quality, high-performance products and services, and providing more comprehensive and professional solutions to global customers. At the same time, the company will strengthen cooperation and exchanges with well-known domestic and international companies and research institutions to jointly promote the development and progress of the new energy industry.
This production line is used for the assembly and production of graphite plate/metal plate stacks, core components of hydrogen fuel cells. Featuring a modular design and flexible assembly, it provides automated stack assembly, including servo stack pressing, automatic nut tightening, airtight insulation testing, CVM/housing installation, laser marking, and screw locking. It offers comprehensive functionality, including automatic code scanning and stacking of MEA/bipolar plate/end plate assemblies, vision alignment, servo stack pressing with high-rigidity carrier constraints, automatic bending and laser welding of straps, stack airtightness testing, laser marking, and finished product unloading. It is compatible with the production of stacks of various sizes. The entire production process is monitored by an MES system, ensuring full data traceability, allowing for rapid expansion of production capacity based on production needs. The line boasts scientific and rigorous processes, information-based production, and high stability.
Advantages and Features
● A multi-station feeding mechanism enables non-stop loading;
● Automatic vision-guided alignment and robotic stacking ensure fast stacking speed and high precision;
● Multi-speed, real-time force feedback servo pressing, combined with a high-precision, high-rigidity carrier, ensures stable stack loading and minimal deformation;
● Automatic steel strip loading, bending, welding, and inspection;
● Scientific and rigorous airtight piping design supports zero-leakage and standard leak testing;
● Modular production line design offers high flexibility and information-based capabilities.

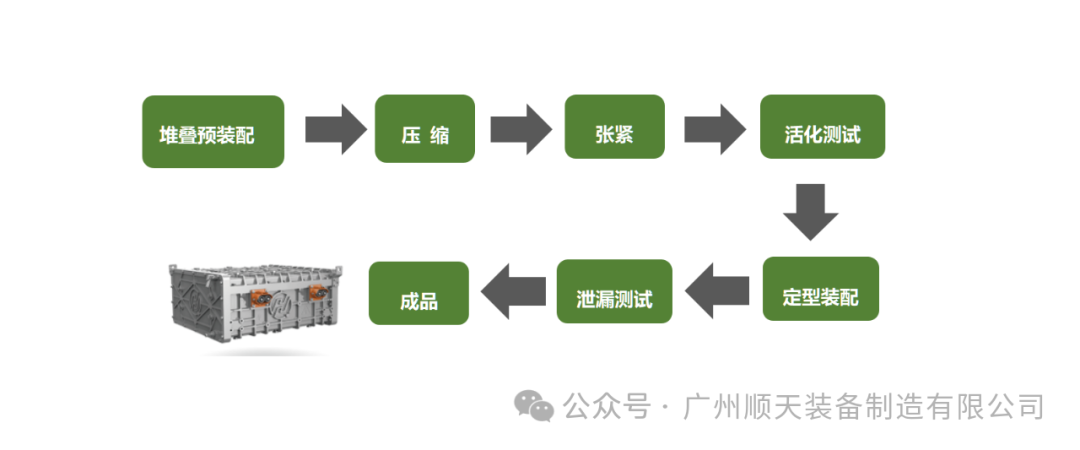

(Hydrogen Fuel Cell Stack Production Process)
● Stacking: Initially, the lower end plate, current collector, and insulation plate are positioned on the assembly workbench. The MEA and BPP (including gaskets) are stacked sequentially until the required number is reached. Finally, the end plate with the media interface, current collector, and insulation plate are stacked on top.
● Compacting: Pressure is applied to compress the components (including the gaskets) to create a seal.
● Tensioning: Use tension bands or tie rods to ensure the stack is compressed and permanently fixed. This process is performed within a press. Tie band connections are secured using welding, connectors, clamps, or special-shaped bending structures.
● Leak Testing: Use pressure drop or flow testing to verify the stack's sealing performance. The test gas is introduced into the stack and leak testing equipment.
● Assembly of Other Accessories: Connect the battery's high-voltage output busbars to the current collectors. Install the stack into the housing. This also includes connections for all media inputs and outputs, sensors, and high-voltage cables.
The production line continues to operate in excellent condition, creating value for customers, which is highly praised and recognized, and Suntech's service is highly commended.
