This electrolyzer turnover machine is specifically designed for the safe inversion of hydrogen electrolyzers and other large stack-type components. Capable of handling turnover requirements for various specifications, it precisely achieves the conversion between horizontal and vertical orientations.
The electrolyzer turnover machine completely replaces traditional forklift or crane-based turnover processes, fundamentally eliminating the safety hazards associated with lifting and flipping, while significantly improving operational efficiency during assembly and maintenance.
The equipment can be customized as a 90° or 180° turnover machine according to process requirements, and is widely used in critical procedures such as stack assembly, bipolar plate maintenance, and mold opening and closing.
PRODUCT DESCRIPTION

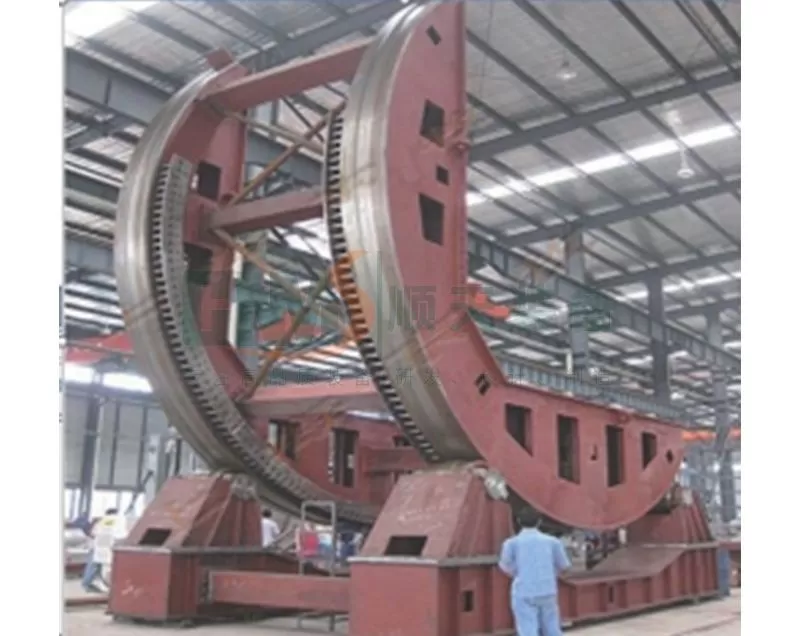

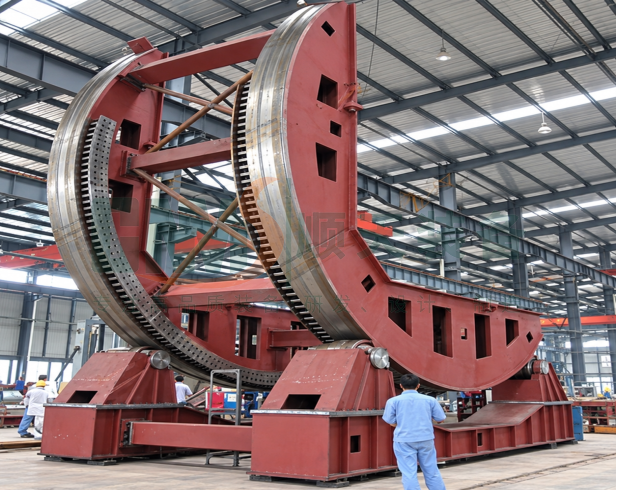

The turnover machine adopts a mechanical turning system, consisting of a frame structure, a turnover drive mechanism, a servo control system, multiple safety devices, and an electrical control cabinet. Driven by a servo motor, the turning arm rotates smoothly, allowing the clamped stack or mold to stop at any angle within 0-90° or 0-180° range, meeting diverse operational requirements such as vertical lifting, horizontal assembly, or mold opening and closing.
1. Ultimate Safety with Multiple Protections
●Mechanical Anti-Reverse Design: The system features a reliable mechanical self-locking structure that prevents reverse rotation even during power outages or shutdowns, ensuring operator and equipment safety.
Dual Limit Protection: Limit switches and mechanical multi-stage limit devices are installed at the 90° turnover position to eliminate over-travel risks.
●Automatic Overcurrent Protection: Built-in overcurrent protection automatically cuts power when the load exceeds the machine's maximum rated weight, preventing motor damage.
●Schneider Electrical Protection: Standard-equipped with French Schneider air switches offering comprehensive protection against overcurrent, overload, short circuit, and phase loss, ensuring a safe and reliable electrical system.
2. Precise Control and Smooth Operation
●Servo Multi-Speed Control: The servo control system supports multi-speed operation, allowing flexible adjustment of turnover speed based on working conditions, with smooth start-stop without impact.
●Power-Off Self-Locking Function: Equipped with power-off and stop braking self-locking capabilities, the mold or stack remains stably locked at any position, eliminating any risk of slippage.
●Precision Machining Assurance: Key rotating components undergo precision vertical lathe machining, ensuring smooth overall operation, accurate positioning, and long-term deformation resistance.
3. Robust Durability and Optimized Structure
●Sturdy Frame Design: The frame is welded from high-strength steel, offering excellent structural rigidity, strong load-bearing capacity, and long service life.
●Integrated Mechatronics: The clever and rational mechatronic integration design results in a compact structure that is easy to maintain and reduces equipment floor space.
●Electrolyzer Assembly: Turns horizontally stacked bipolar plate groups to a vertical orientation, facilitating subsequent casing installation or bolt fastening.
●Maintenance and Mold Opening/Closing: Achieves smooth 0-90° turnover during stack or mold maintenance, enabling convenient opening, closing, cleaning, or lifting operations.
●Material Transfer: Integrates with automated production lines to achieve orientation conversion of stacks between different workstations, supporting production line automation upgrades.
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
