This electrolyzer assembly lifting platform is specifically designed for the large-scale production and assembly of hydrogen electrolyzers. It serves as essential auxiliary equipment for enhancing both efficiency and safety on hydrogen production assembly lines.

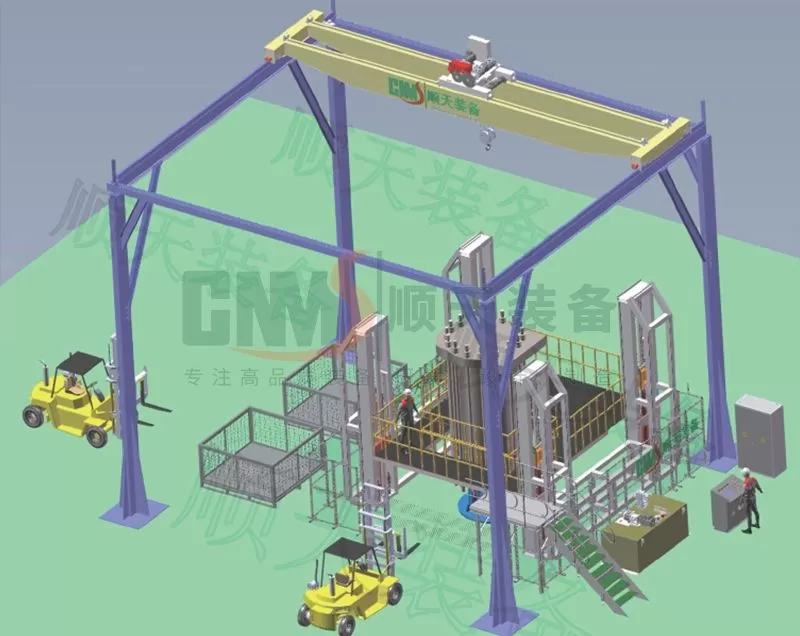

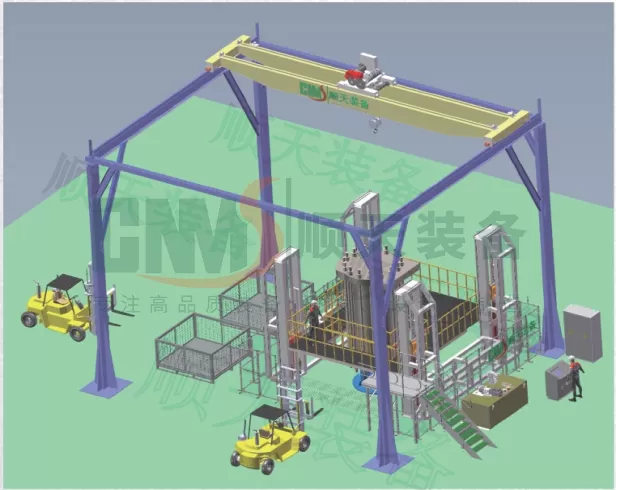

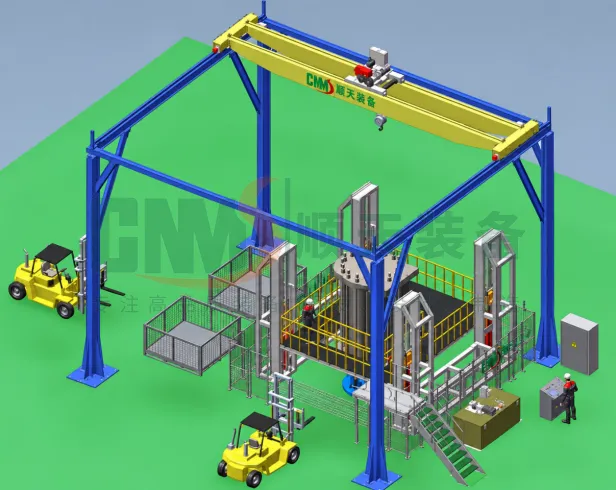

The integrated system comprises a personnel lifting platform, a heavy-duty material lifting platform, and a dedicated power and control system.
PRODUCT DESCRIPTION
This system is widely employed in the assembly lines for alkaline water electrolysis (ALK) electrolyzers, as well as for the internal installation and maintenance of large pressure vessels and storage tanks. Within the rapidly expanding green hydrogen equipment manufacturing sector, it has become an indispensable, specialized auxiliary device for electrolyzer assembly.
The complete system comprises four primary modules: a personnel lifting platform, a heavy-duty material lifting platform, a hydraulic power unit, and an integrated control system.

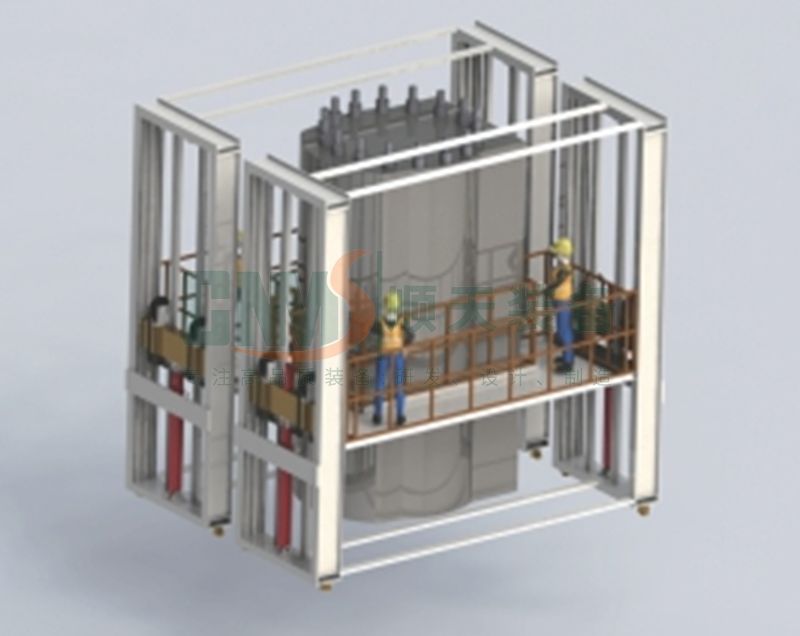

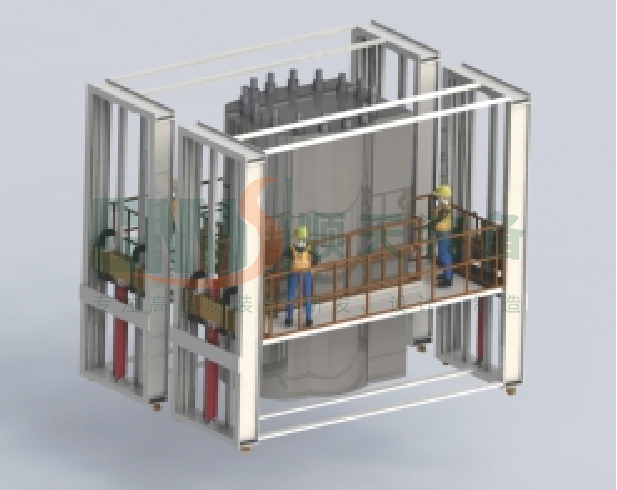

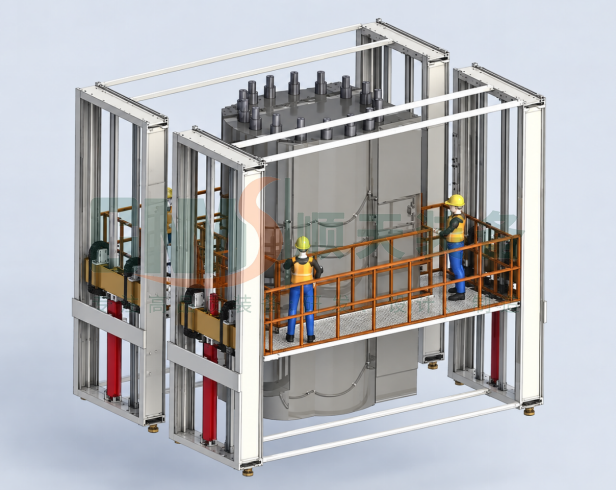

Its core structure features a multi-stage telescopic nested-cylinder design, specifically incorporating:
●Four Telescopic Nested-Cylinder Outriggers: These serve as the main load-bearing and guiding elements, ensuring stable vertical movement.
●High-Strength Load Platform: Engineered to safely support electrolyzer components or operating personnel.
●Lifting Cylinders & Traction Chains: Delivering synchronized, high-power lifting force.
●Integrated Power Unit & Control System: Managing hydraulic power and executing precise operational commands.
1. Stable Multi-Stage Lifting: Driven by lifting cylinders and synchronized via traction chains, the four outriggers operate in perfect unison. This eliminates swaying or jamming, allowing the platform to stop precisely at any point within its travel range, which is critical for aligning precision components like bipolar plates and pressing plates.
2. Secure Pressure Holding for Extended Stops: Designed for lengthy assembly processes, the hydraulic system features advanced pressure-holding and mechanical self-locking functions. This guarantees zero platform drift even under sustained heavy loads, eliminating a key safety risk.
3. Engineered for Reliability and Durability:
●Hydraulic System: Utilizes high-performance hydraulic power units from leading imported or domestic brands, ensuring leak-free operation, fast response, and long-term reliability.
●Robust Construction: The platform frame is fabricated from high-strength, standard-compliant steel profiles for maximum rigidity. The deck is clad with a minimum 2.0mm thick embossed anti-slip steel plate, providing exceptional wear and pressure resistance along with secure footing for operators.
4. Intuitive One-Button Operation: The electric control system simplifies operation with a single button for lifting and lowering, requiring no specialized training. A clearly marked emergency stop button on the integrated control box allows for immediate power cut-off in critical situations, ensuring maximum operational safety.
