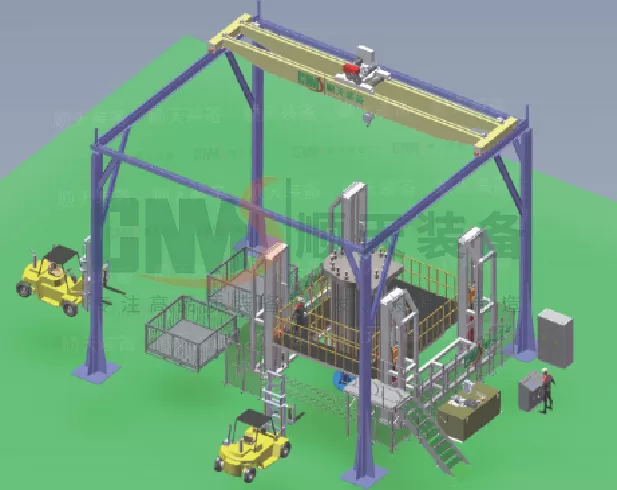

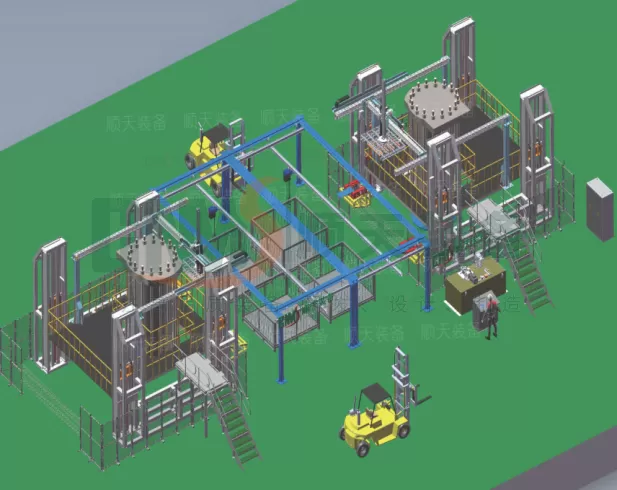

This equipment is specifically designed for assembling hydrogen-producing electrolysis cells, featuring broad specification compatibility and versatility suitable for various electrolysis cell assembly scenarios. The complete system includes a man-lift platform, a heavy-duty material lift platform, and a supporting power supply and control system. The lifting platforms utilize a four-set telescopic leg structure. Integrated with load-bearing platforms, lifting cylinders, traction chains, hydraulic power units, and intelligent control systems, they achieve smooth hydraulic-driven elevation and precise positioning at any point within the travel range. The system incorporates hydraulic self-locking and pressure-holding functions, enabling prolonged safe equipment dwell times to meet the demands of high-intensity assembly operations.
PRODUCT DESCRIPTION
●Structural Reliability: The platform body utilizes high-strength national standard profiles, with a work surface made of embossed anti-slip steel plate ≥2.0mm thick. The main structure features robust welding with no cold welds or missed welds. Surfaces undergo rigorous rust removal followed by dual-layer primer and topcoat treatment, achieving a paint film thickness ≥0.08mm for corrosion resistance and anti-peeling properties.
●Superior Hydraulic System: Utilizes imported or domestically produced premium hydraulic units, ensuring responsive operation without leakage for long-term stable use.
●Intelligent Control: Integrates one-button lift/lower operation with emergency stop functionality, requiring no specialized training for operation. Supports automatic/manual dual modes, paired with a pull-cord displacement sensor for real-time compression feedback, enabling precise bolt tensioning and locking.
●Ruggedized for Harsh Environments: Motor and control cabinet with IP65 protection rating, delivering superior dust and water resistance.
●Automation-Ready Integration: Compatible with robotic arms for automated material handling and transfer, facilitating the construction of automated assembly lines for electrolytic cells.

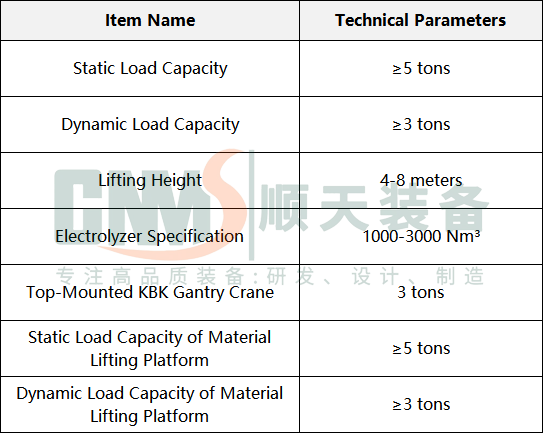

Project Parameters
CUSTOMIZED PRODUCTS
Custom equipment manufacturing: end-to-end solutions for your needs, empowering core competitiveness.
