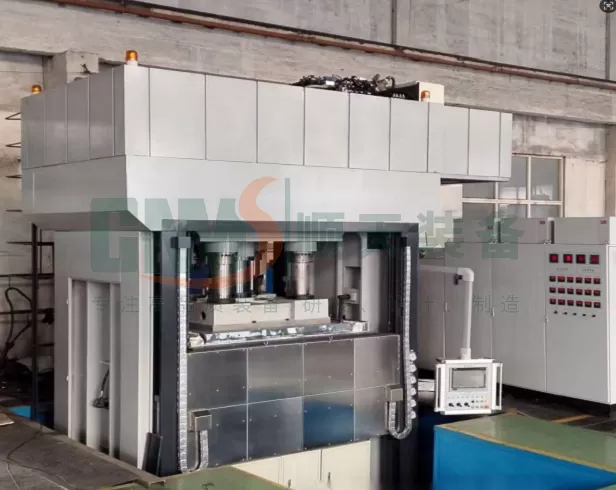

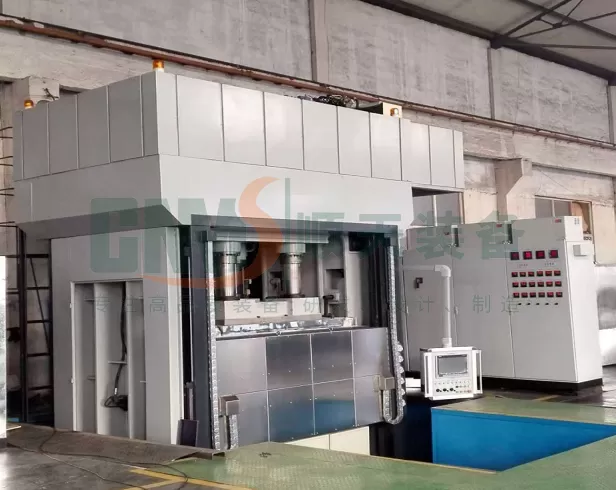

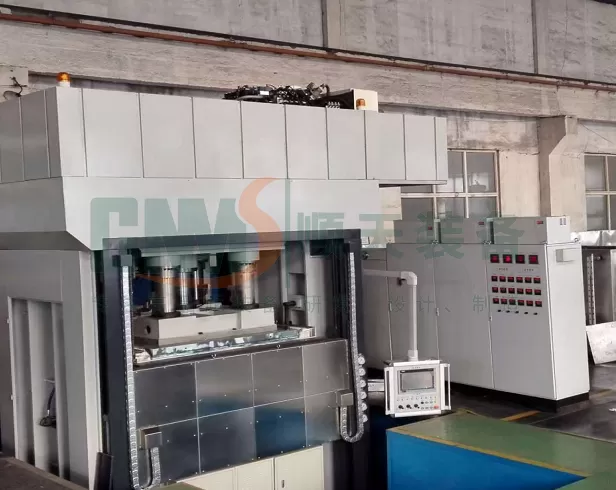

Plastic Thermoforming Machine

Designed for high-performance thermoplastics such as PEEK, PEKK, PPS, and LMPAEK, as well as aviation-grade acrylic (PMMA/Polycarbonate), this Aerospace Thermoforming Machine delivers a premium forming solution tailored to the rigorous demands of the aviation industry.

Engineered to tackle the critical challenges of high temperature, high pressure, and high cleanliness in aerospace component manufacturing, it provides a complete end-to-end solution—from R&D and prototyping to full-scale production.

Inquire Now + Next Product

PRODUCT DESCRIPTION

High-Performance Plastic Thermoforming Machine for Efficient Packaging Production

A Plastic Thermoforming Machine is a highly efficient manufacturing solution designed to convert plastic sheets into customized packaging products through heating, forming, cutting, and stacking processes. Widely used in food packaging, medical packaging, electronics trays, disposable containers, and industrial packaging applications, thermoforming equipment offers high production efficiency, material utilization, and product consistency.

Whether producing disposable food containers, blister packs, fruit trays, medical trays, or customized packaging solutions, modern thermoforming machines provide manufacturers with cost-effective and scalable production capabilities.

What Is a Plastic Thermoforming Machine?

A plastic thermoforming machine heats thermoplastic sheets to a pliable forming temperature and then shapes them using vacuum pressure, air pressure, or mechanical molds. After forming, the products are trimmed and stacked automatically for further packaging or distribution.

Common thermoforming materials include:

PP (Polypropylene)
PET (Polyethylene Terephthalate)
APET
PETG
PS (Polystyrene)
HIPS
PVC
PLA (Biodegradable Plastic)
OPS

These materials are widely used in food-grade, medical-grade, and industrial packaging production.

Core Advantages

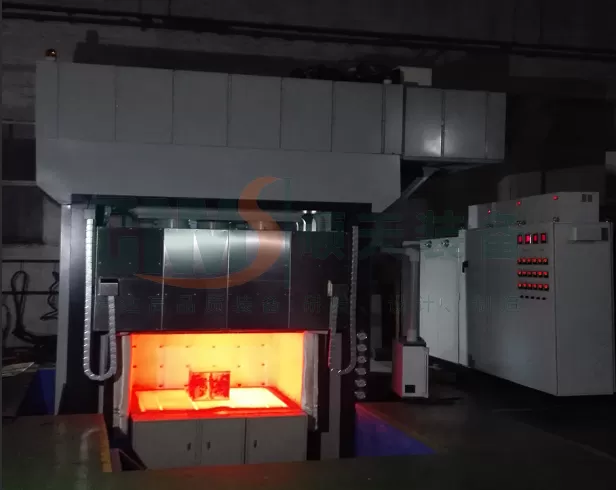

1. Ultra-High Temperature Uniform Heating System

●Technology: Far-infrared ceramic/halogen heating with independent zone-based PID control, delivering temperatures up to 450°C–600°C (configurable).

●Benefit: Ensures proper crystallization of semi-crystalline polymers like PEEK, eliminating internal stress. Temperature uniformity is maintained within ±2°C to prevent thermal degradation and preserve composite mechanical performance.

2. High-Precision Servo Closed-Loop Control

●Technology: High-response servo motors and precision guide rails enable fully closed-loop control of clamping, ejection, and positioning.

●Benefit: Achieves forming speeds over 600 mm/s with repeatable positioning accuracy of ±0.1 mm, ideal for complex curved components such as compound-curvature luggage bins and sidewall panels.

3. Quick Mold Change & Vacuum Assist System

●Technology: Rapid clamping mechanism with auto-coupling vacuum/pneumatic connections, designed for high-mix, low-volume aerospace production.

●Benefit: Cuts mold changeover time to under 10 minutes, boosting overall equipment effectiveness (OEE). Integrated high-flow vacuum system ensures bubble-free lamination and prevents delamination during forming.

4. Cleanroom-Compatible & Laminar Flow Design

●Technology: Stainless steel construction with food/aviation-grade tubing, HEPA-filtered intake, and smooth, crevice-free surfaces for easy cleaning.

●Benefit: Meets strict aerospace cleanliness standards (e.g., ISO Class 7), minimizing foreign object debris (FOD) risk.

5. Full Lifecycle Data Traceability (Industrial 4.0 Ready)

●Technology: Intelligent control system records real-time pressure, temperature profiles, vacuum levels, and positioning data.

●Benefit: Enables part-specific traceability in line with AS9100 requirements and supports MES integration for full production transparency.
